RF Lens Lineup

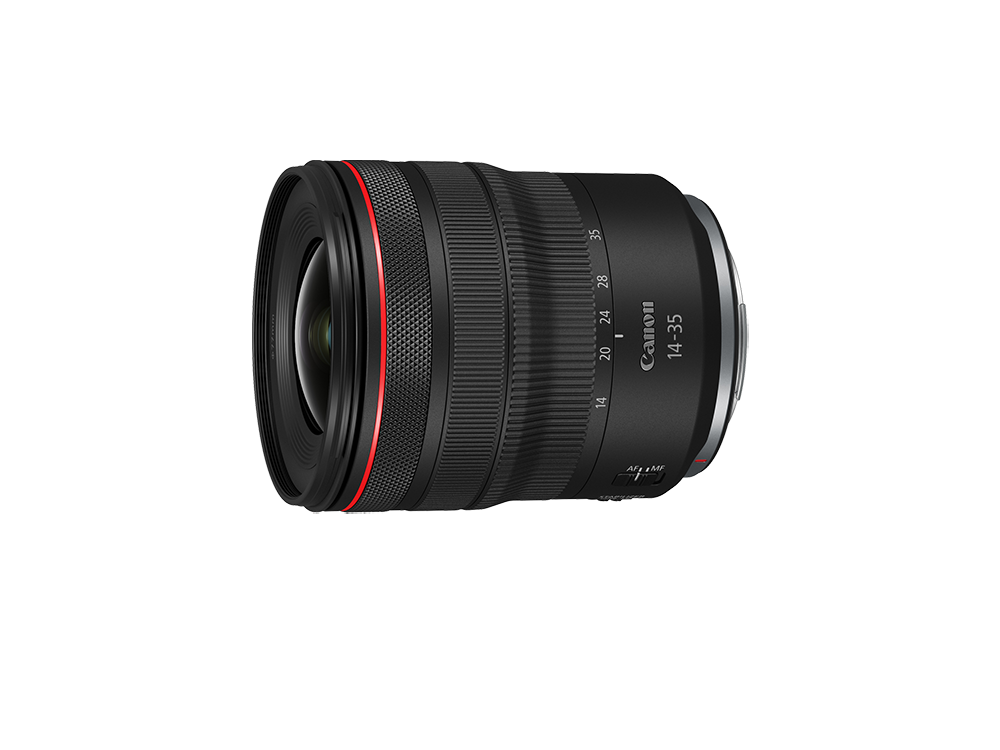

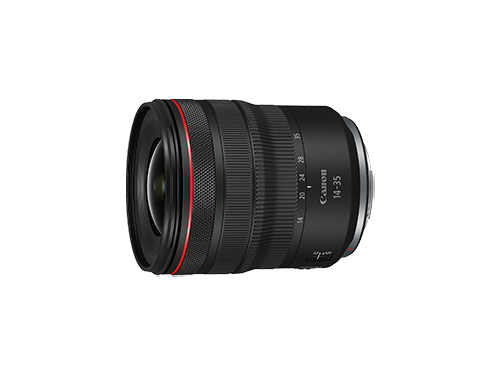

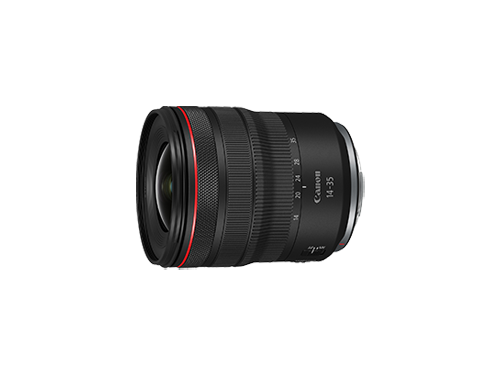

RF14-35mm F4 L IS USM

This lens offers ultra-wide-angle shooting with a minimum focal length of 14mm, as well as optimal performance in terms of image reproduction, operability, and robustness. Expanded wide-angle coverage is achieved by reducing the minimum focal length to 14mm, compared to the previous EF16-35mm F4L IS USM model, allowing photographers to take photos with a fuller sense of perspective. The in-lens IS mechanism provides camera-shake compensation as effective as a 5.5-stop*¹ increase in shutter speed. When combined with the coordinated control of the camera’s in-body IS, this improves to up to 7.0 stops*². Composition is easy, thanks to a minimum focusing distance of 0.2m. Another attractive feature is the high-precision AF with nano Ultrasonic Motor (USM). This is a truly versatile lens that can handle everything from landscape and architectural photography to snapshots and portraits.

*1 When EOS R is used with a focal length of 35mm. According to CIPA standards (yaw/pitch directions only).
*2 When EOS R5 is used with a focal length of 35mm. According to CIPA standards (yaw/pitch directions only).

Spec

Angle of view (horizontal/ vertical/ diagonal) 104°00’~54°00’ / 81°00’~38°00’ / 114°00’~63°00’
Lens construction 16 elements in 12 groups
Aperture blades 9
Min. aperture 22
Min. focusing distance 0.2m
Max. magnification 0.38x
Filter size 77mm
Max. diameter x Length Approx. φ84.1mm x 99.8mm
Weight Approx. 540g

Mounted technology

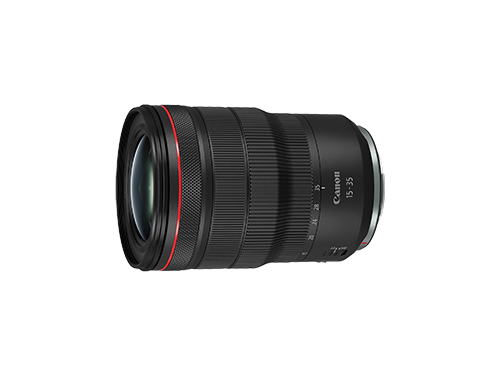

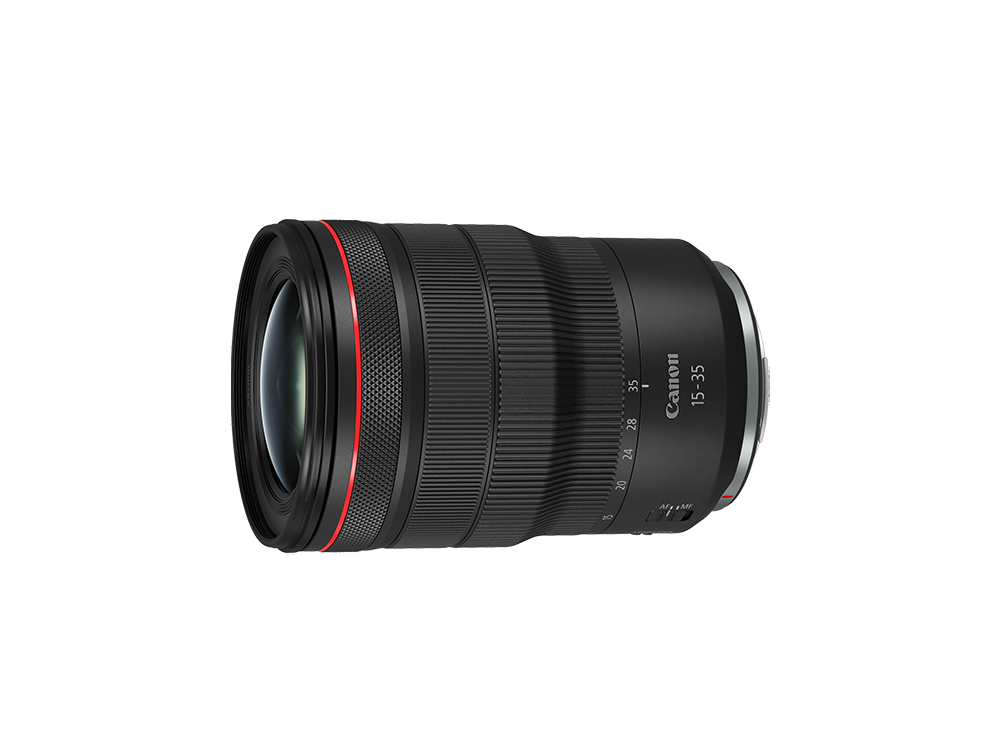

RF15-35mm F2.8 L IS USM

The RF15-35mm F2.8 L IS USM is a large-aperture, ultra-wide-angle zoom lens with a minimum focal length of 15mm. The lens uses three glass-molded aspherical lenses and two Ultra-low Dispersion (UD) lenses to effectively compensate for various aberrations, and deliver clear, high image quality with excellent resolution from the center of the image to the periphery. Special coatings such as Subwavelength Structure Coating (SWC) and Air Sphere Coating (ASC) are used to significantly reduce the chance of lens flare or ghosting. An improved control algorithm for the optical IS and the use of the Dual Sensing IS provide optical image stabilization equivalent to a 5-stop* increase in shutter speed. This allows the user to shoot at slower shutter speeds in dark venues, and expands the potential for hand-held photography. It is suitable for architectural and landscape photography, as well as for portraits and snapshots. It is possible to take pictures with a wide field of view without moving too far away from the subject, and to create images that emphasize the sense of perspective.

* When EOS R is used with a focal length of 35mm. According to CIPA standards (yaw/pitch directions only).

Spec

Angle of view (horizontal/ vertical/ diagonal) 100°25’~54° / 77°20’~38° / 110°30’~63°
Lens construction 16 elements in 12 groups
Aperture blades 9 (circular shape)
Min. aperture 22
Min. focusing distance 0.28m
Max. magnification 0.21x at 35mm
Filter size 82mm
Max. diameter x Length Approx. φ88.5mm x 126.8mm
Weight Approx. 840g

Mounted technology

Introducing the RF F2.8 L Zoomlens Series (Canon Official)

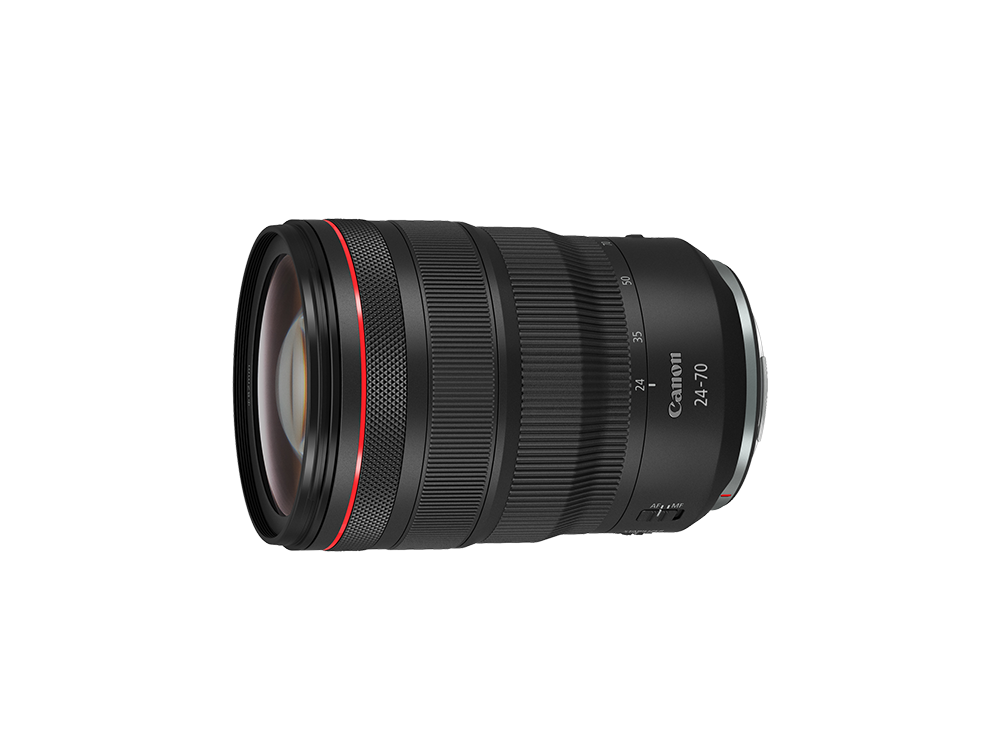

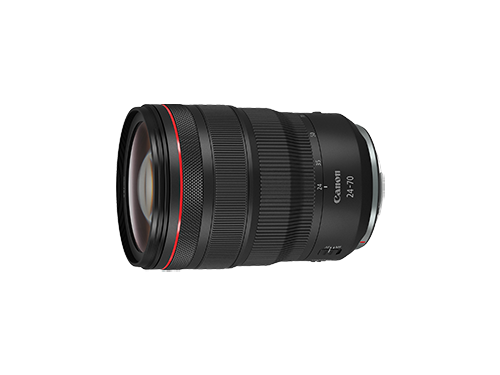

RF24-70mm F2.8 L IS USM

The EF mount version of this 24-70mm lens has already established a strong reputation, and Canon now offers an RF mount version. This version is equipped with an image stabilization mechanism, but remains about the same size. When used in coordinated control with the camera’s in-body IS, the lens provides an image stabilization effect equivalent to an 8.0-stop*¹ increase in shutter speed. The optical design includes 21 elements in 15 groups, including three glass-molded aspherical lenses and three Ultra-low Dispersion (UD) lenses, to reduce the aberrations that can diminish image quality. Special coatings help to ensure an image quality worthy of an L-series lens, including Air Sphere Coating (ASC) to reduce lens flare and ghosting. Dust- and water-resistant features*² are employed throughout, including the lens joints and switch panel, to ensure reliability. This new-generation standard zoom lens expands the potential range of photographic expression.

*1 When EOS R5 is used with a focal length of 70mm. According to CIPA standards (yaw/pitch directions only).
*2 This does not guarantee that water and dust will not penetrate the camera.

Spec

Angle of view (horizontal/ vertical/ diagonal) 74°~29° / 53°~19°30’ / 84°34°
Lens construction 21 elements in 15 groups
Aperture blades 9 (circular shape)
Min. aperture 22
Min. focusing distance 0.21m at 24mm
Max. magnification 0.30x at 32mm
Filter size 82mm
Max. diameter x Length Approx. φ88.5mm x 125.7mm
Weight Approx. 900g

Mounted technology

Introducing the RF F2.8 L Zoomlens Series (Canon Official)

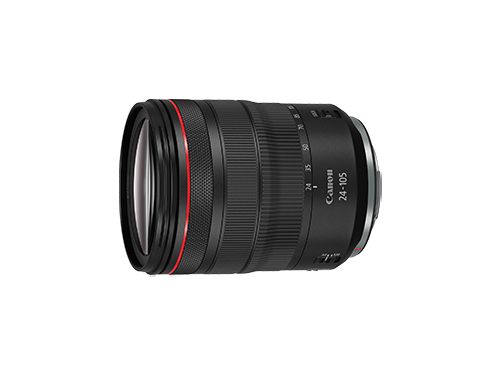

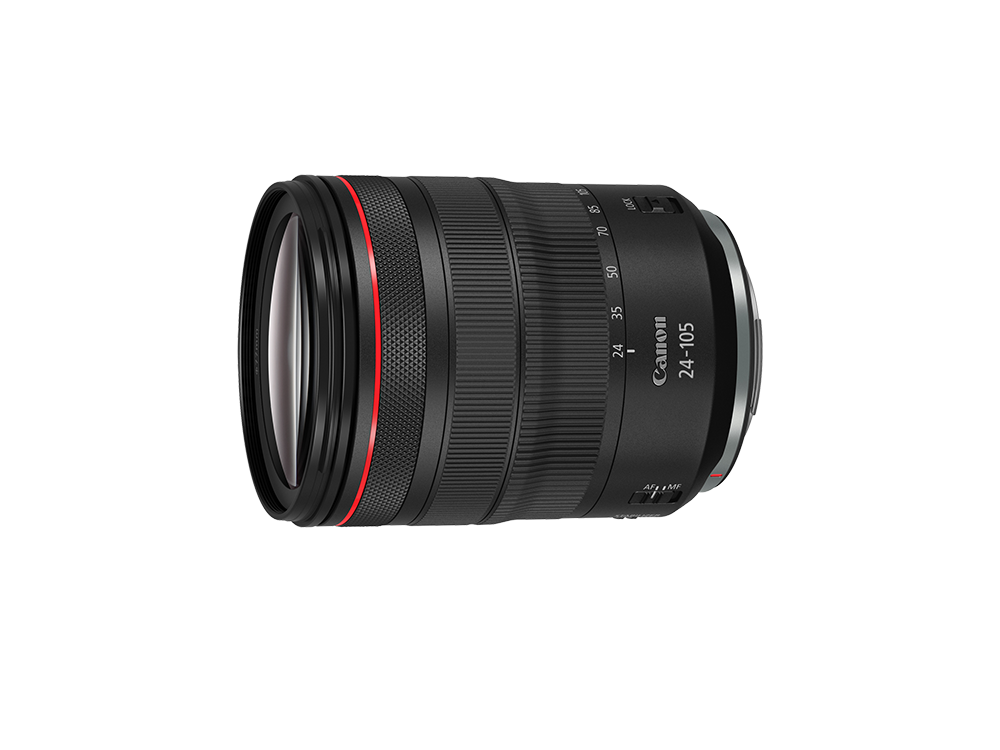

RF24-105mm F4 L IS USM

The RF24-105mm F4 L IS USM is a standard zoom lens that crosses the boundaries of still images and video to expand the range of expressiveness in imaging. Its flexible optical design takes advantage of the large diameter and short back focus provided by the RF mount to open up new photographic possibilities. An effective arrangement of three glass-molded aspherical elements and an Ultra-low Dispersion (UD) element provides outstanding imaging performance, while reducing the total length to 107.3mm and weight to 700g. It is the first L lens to incorporate a Nano Ultrasonic Motor (USM), which ensures quick AF for still images and smooth video shooting. It also features an image stabilizing mechanism that reduces camera shake by the equivalent of a 5.0-stop* increase in shutter speed. The control ring can be configured to adjust aperture, shutter speed, ISO sensitivity settings, or exposure compensation.

* When EOS R is used with a focal length of 105mm. According to CIPA standards.

Spec

Angle of view (horizontal/ vertical/ diagonal) 74°~19°20' / 53°~13° / 84°~23°20'
Lens construction 18 elements in 14 groups
Aperture blades 9 (circular shape)
Min. aperture 22
Min. focusing distance 0.45m
Max. magnification 0.24x
Filter size 77mm
Max. diameter x Length Approx. φ83.5 x 107.3mm
Weight Approx. 700g

Mounted technology

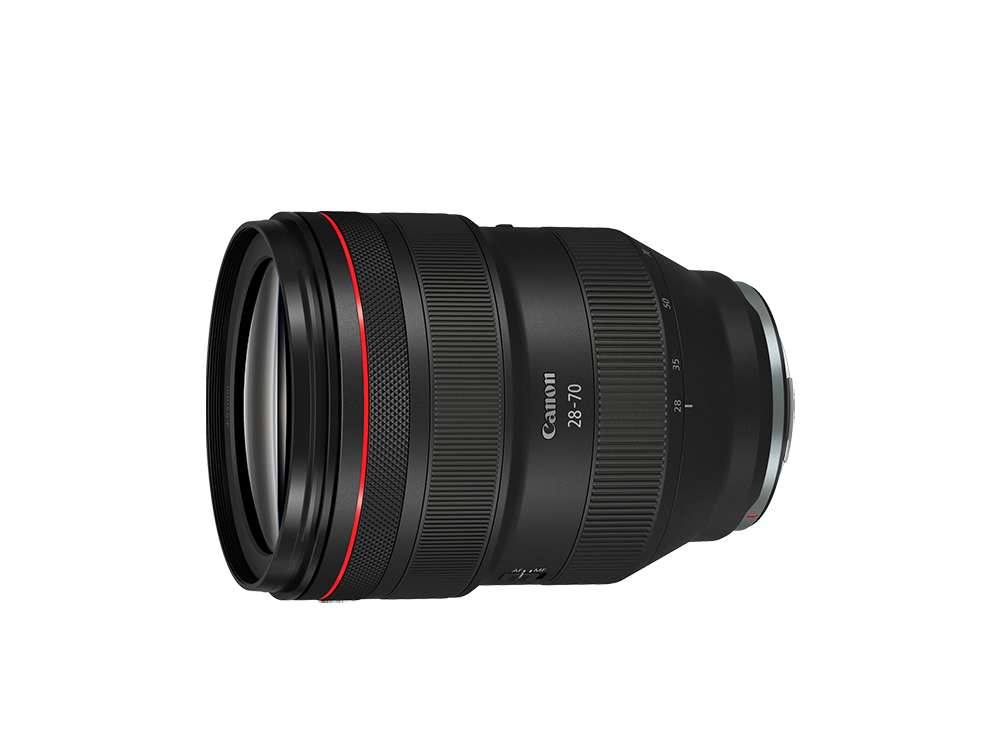

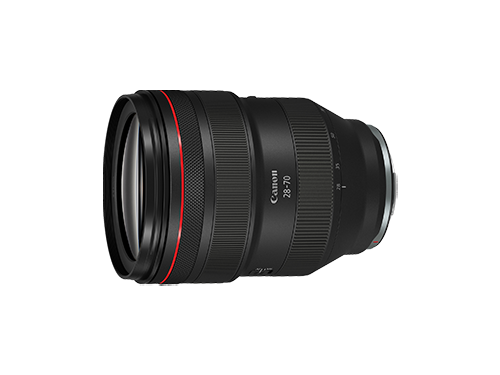

RF28-70mm F2 L USM

Canon continues to expand the boundaries of optical design. This standard zoom lens is the first ever* to offer a maximum f/2 aperture, providing an unprecedented range of potential photographic expression. The large diameter and short back focus provided by the RF mount offer an unprecedented degree of optical design flexibility, along with image quality throughout the zoom range which matches that of single focal-length lenses. An effective arrangement of two ground aspherical elements, two glass-molded aspherical elements and a super Ultra-low Dispersion (UD) element ensures high resolution and high contrast from the center of the image to the periphery. In addition, two special coatings, Subwavelength-structure Coating (SWC) and Air Sphere Coating (ASC), suppress lens flare and ghosting even in backlit conditions. Whether taking wedding photos or portraits, landscapes or astronomical photographs, this lens surpasses conventional zoom lenses in expressiveness to make the dreams of photographers come true.

* Refers to interchangeable autofocus standard zoom lenses for 35mm full-frame digital cameras. According to Canon surveys.

Spec

Angle of view (horizontal/ vertical/ diagonal) 65°~29° / 46°~19°30' / 75°~34°
Lens construction 19 elements in 13 groups
Aperture blades 9 (circular shape)
Min. aperture 22
Min. focusing distance 0.39m
Max. magnification 0.18x
Filter size 95mm
Max. diameter x Length Approx. φ103.8 x 139.8mm
Weight Approx. 1,430g

Mounted technology

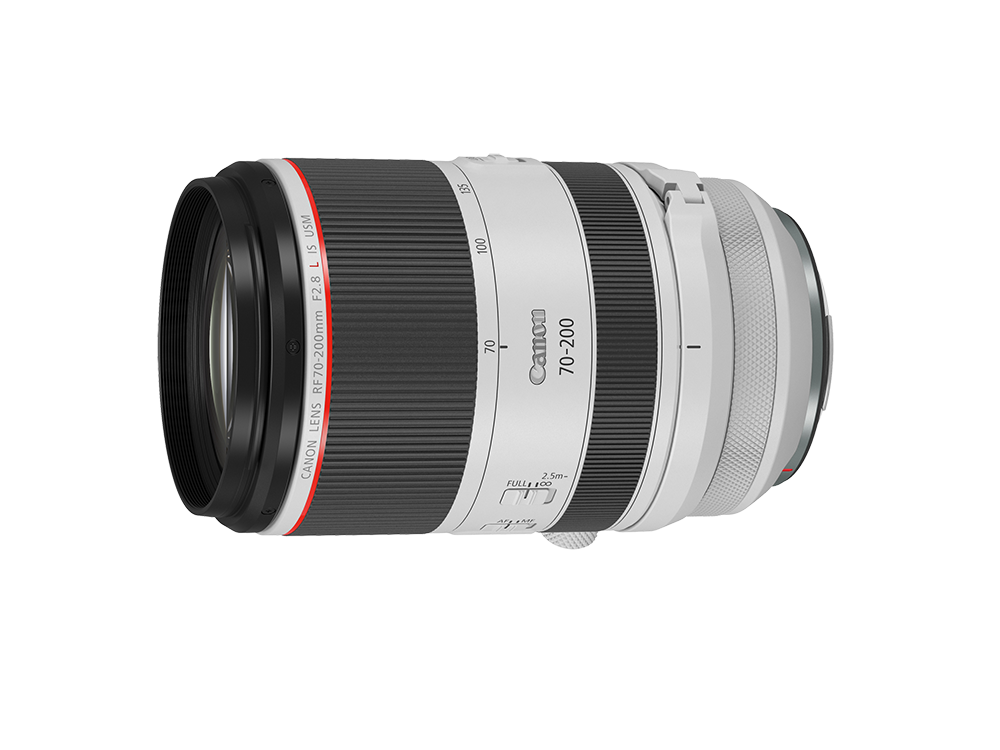

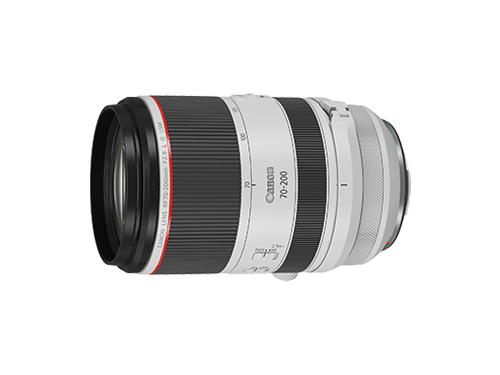

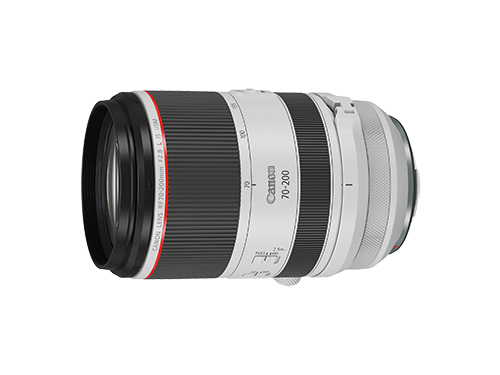

RF70-200mm F2.8 L IS USM

This 70-200mm F2.8 L lens offers enhanced mobility without sacrificing image quality or performance. Its overall length is just 146mm (approx.), making it the world’s shortest* lens in this class, and it weighs a mere 1,070g (excluding the tripod mount). Taking advantage of the large aperture design and short back focus unique to the RF mount, a large-aperture lens element was placed near the focal plane of the camera side, successfully downsizing the entire optical system. The optical design features 17 lens elements in 13 groups, including one Super Ultra-low Dispersion (UD) lens, three UD lenses, one UD aspherical lens, and one glass-molded aspherical lens, to reduce aberration and preserve high image quality from the center of the picture to the periphery. The lens maintains high image quality throughout the zoom range, with a broad focal-length range from 70mm to 200mm. In addition to good basic performance, the lens offers outstanding reliability to meet the needs of all photographers.

* Refers to interchangeable lenses with a focal length of 70-200mm f/2.8 for SLR cameras and mirrorless cameras with a 35mm full-frame image sensor. As of April 5, 2022. According to Canon surveys.

Spec

Angle of view (horizontal/ vertical/ diagonal) 29°~10° / 19°30’~7° / 34°~12°
Lens construction 17 elements in 13 groups
Aperture blades 9 (circular shape)
Min. aperture 32
Min. focusing distance 0.7m
Max. magnification 0.23x at 200mm
Filter size 77mm
Max. diameter x Length Approx. φ89.9 x 146.0mm
Weight Approx. 1,070g (without tripod mount / tripod mount weight: approx. 130g)

Mounted technology

Introducing the RF F2.8 L Zoomlens Series (Canon Official)

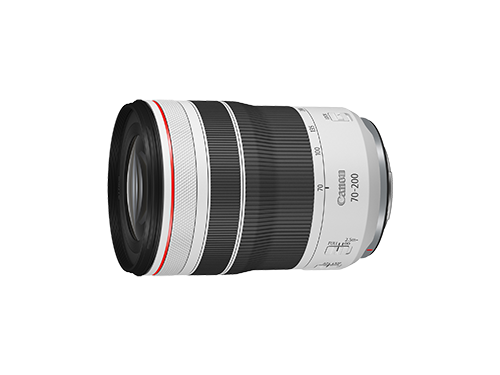

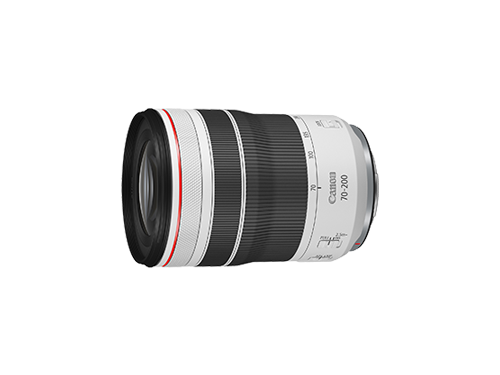

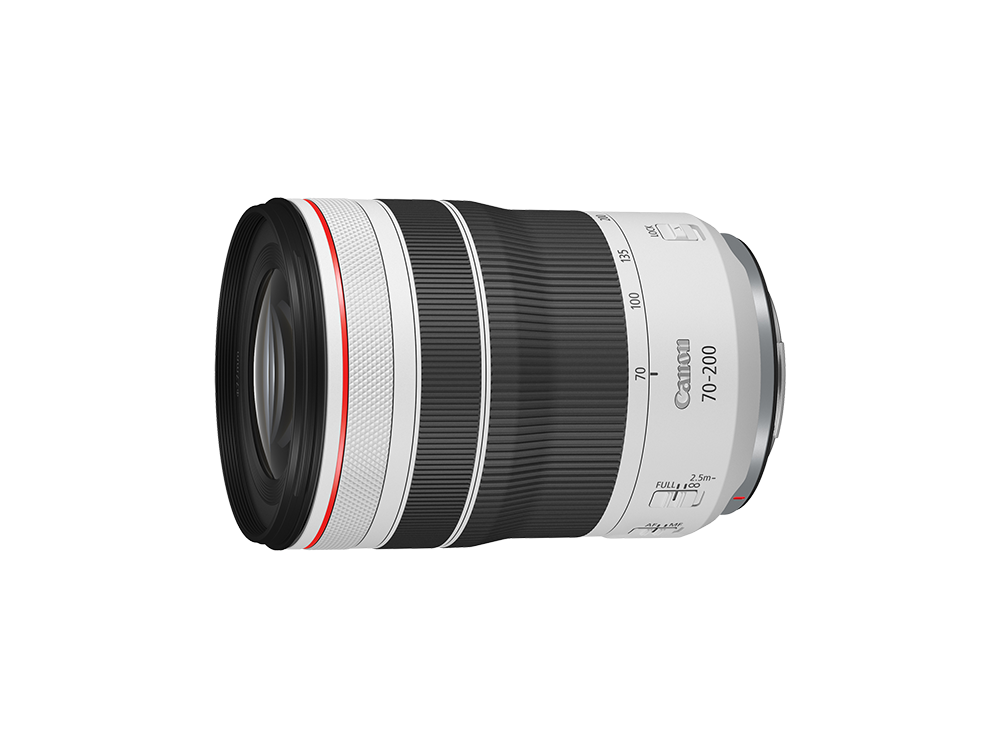

RF70-200mm F4 L IS USM

The RF70-200mm F4 L IS USM is a lightweight compact telephoto L zoom lens that retains the approximate size of a standard lens. This makes it easy to take casual snapshots with ease. The lens is considerably smaller and lighter than previous models, thanks to the large-aperture mount design and short back focus that are unique to the EOS R system. Four Ultra-low Dispersion (UD) lenses provide high resolution, and the image stabilization feature is as effective as a 5.0-stop*¹ increase in shutter speed. This increases to as much as 7.5 stops*² when used in coordinated control with the camera’s in-body IS, making it easy to shoot in low-light conditions. The lens is equipped with a nano Ultrasonic Motor (USM) that features low noise, speedy response time, and excellent controllability. This allows high-speed, high-precision focusing at any focal length or distance to the subject.

*1 For EOS R type cameras with a focal length of 200mm. According to CIPA standards (yaw/pitch directions only).
*2 For EOS R5 type cameras with a focal length of 200mm. According to CIPA standards (yaw/pitch directions only).

Spec

Angle of view (horizontal/ vertical/ diagonal) 29°00’~10°00’ / 19°30’~ 7°00’ / 34°00’~ 12°00’
Lens construction 16 elements in 11 groups
Aperture blades 9 (circular shape)
Min. aperture 32
Min. focusing distance 0.6m
Max. magnification 0.28x at 200mm
Filter size 77mm
Max. diameter x Length Approx. φ83.5mm x 119.0mm
Weight Approx. 695g

Mounted technology

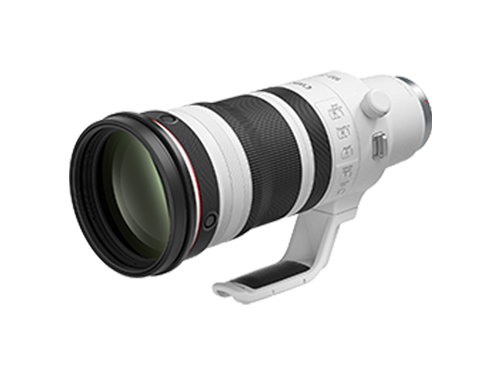

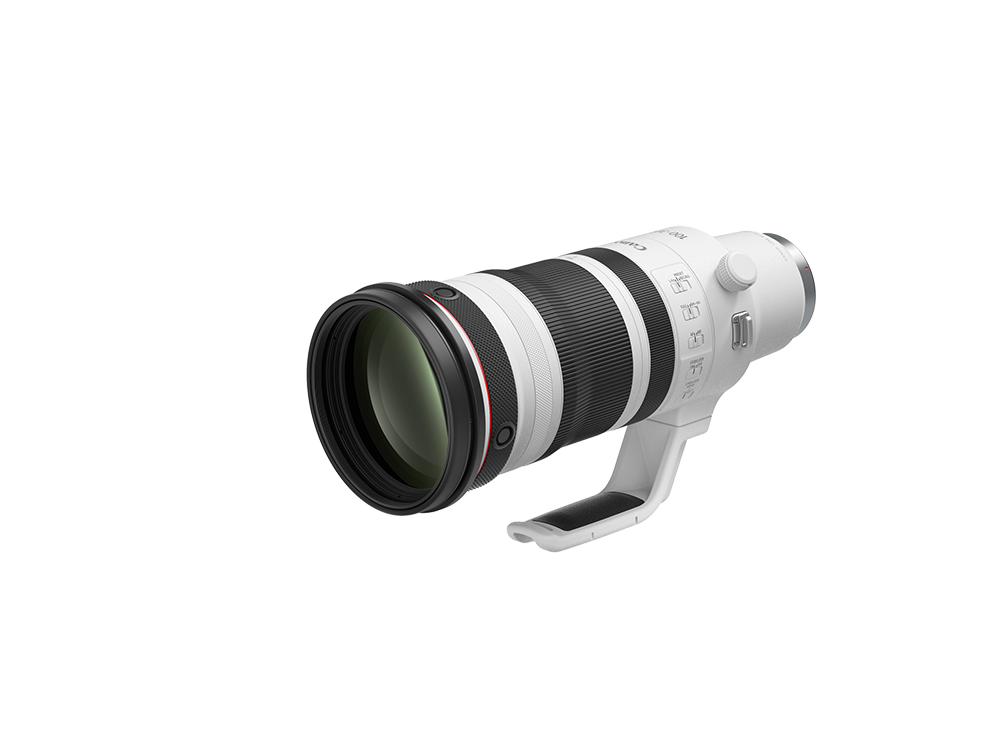

RF100-300mm F2.8 L IS USM

The 300mm F2.8 L, which has become a favorite among professional photographers, is now available as a zoom lens. The RF100-300mm F2.8 L IS USM lens covers both telephoto and super-telephoto range, offering the features of several conventional, single-focal-length lenses in a single compact and lightweight design. At just 2,590g (approx.), it is the lightest*¹ f/2.8 zoom lens with a maximum focal length of 300mm, and compatible with a full-frame sensor. The lens uses a single fluorite element and four Ultra-low Dispersion (UD) elements to deliver high image quality comparable to that of a single-focal-length L lens, at maximum aperture setting and throughout the zoom range. The lens alone offers image stabilization equivalent to a 5.5-stop*² increase in shutter speed. Two nano Ultrasonic Motors (USM) allow the lens to capture fast moving objects with high focusing accuracy. This flagship zoom lens employs the latest optical design to fully leverage the characteristics of the EOS R system. It offers a significant advantage in capturing decisive moments in all genres of photography, including sports and news photography.

*1 As of April 2023. According to Canon surveys.
*2 For EOS R5 type cameras with a focal length of 300mm. According to CIPA standards (yaw/pitch directions only).

Spec

Angle of view (horizontal/ vertical/ diagonal) 20°~6°50’ / 14°~4°35’ / 24°~8°15’
Lens construction 23 elements in 18 groups
Aperture blades 9
Min. aperture 22
Min. focusing distance 1.8m
Max. magnification 0.06x at 100mm, 0.16x at 300mm
Filter size 112mm
Max. diameter x Length Approx. φ128mm x 323.4mm
Weight Approx. 2,590g

Mounted technology

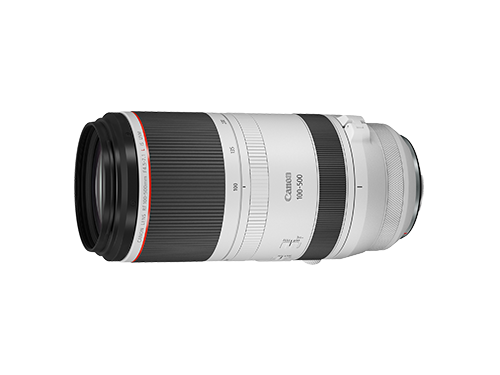

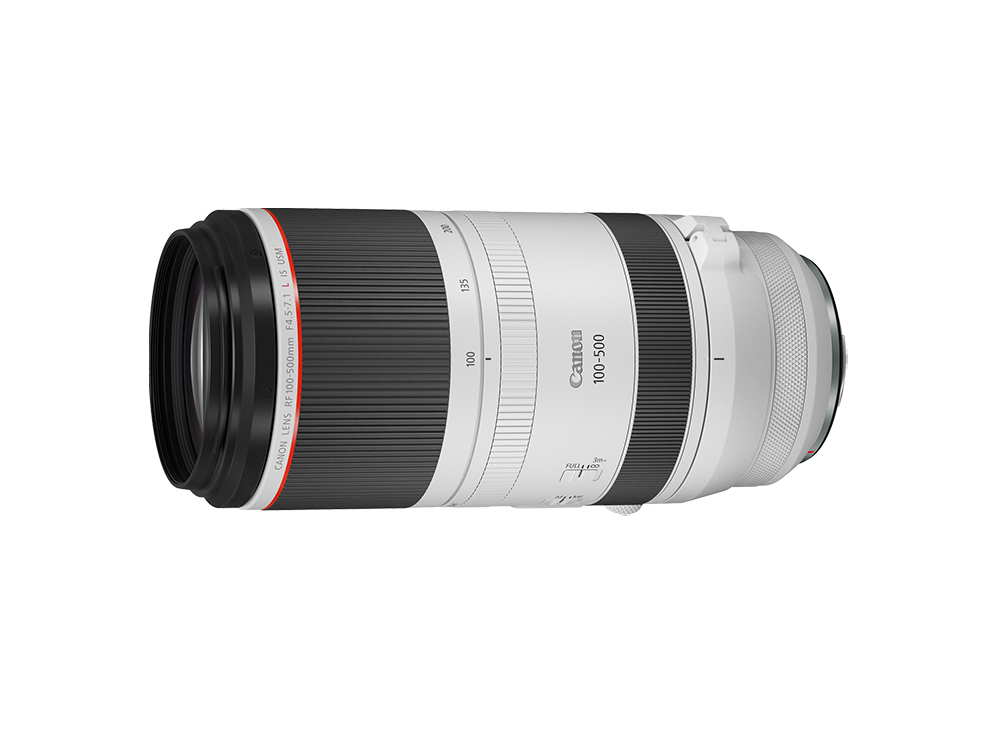

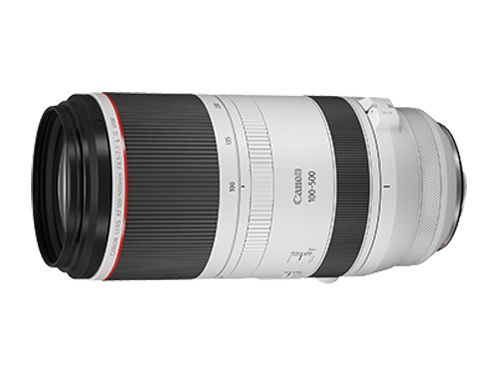

RF100-500mm F4.5-7.1 L IS USM

This super-telephoto zoom lens offers a zoom range of 100mm to 500mm, powerful image stabilization, and the faithful image reproduction performance only an L-series lens can deliver. The super-telephoto range exceeds that of the EF100-400mm f/4.5-5.6L IS II USM, which has been a favorite of professionals and advanced amateurs, yet it is approximately 200g lighter. It features one Super Ultra-low Dispersion (UD) lens and six UD lens elements to suppress chromatic aberration throughout the zoom range. In addition, electronic floating focus control provides excellent image reproduction performance even at short distances. The minimum focusing distance is 0.9m at the wide end, and the image stabilization effect of the lens alone is equivalent to a 5.0-stop* increase in shutter speed. This lens can be used for virtually any telephoto purpose, including taking shots of airplanes, trains, wildlife, and sporting events.

* According to CIPA standards. When EOS R6 Mark II is used with a focal length of 500mm.

Spec

Angle of view (horizontal/ vertical/ diagonal) 20°~4°・14°~2°45′・24°~5°
Lens construction 20 elements in 14 groups
Aperture blades 9 (circular shape)
Min. aperture 32 at 100mm, 51 at 500mm
Min. focusing distance 0.9m at 100mm
Max. magnification 0.33x at 500mm
Filter size 77mm
Max. diameter x Length φ93.8 x 207.6mm
Weight Approx. 1,370g (Without tripod socket / Tripod socket: Approx. 160g)

Mounted technology

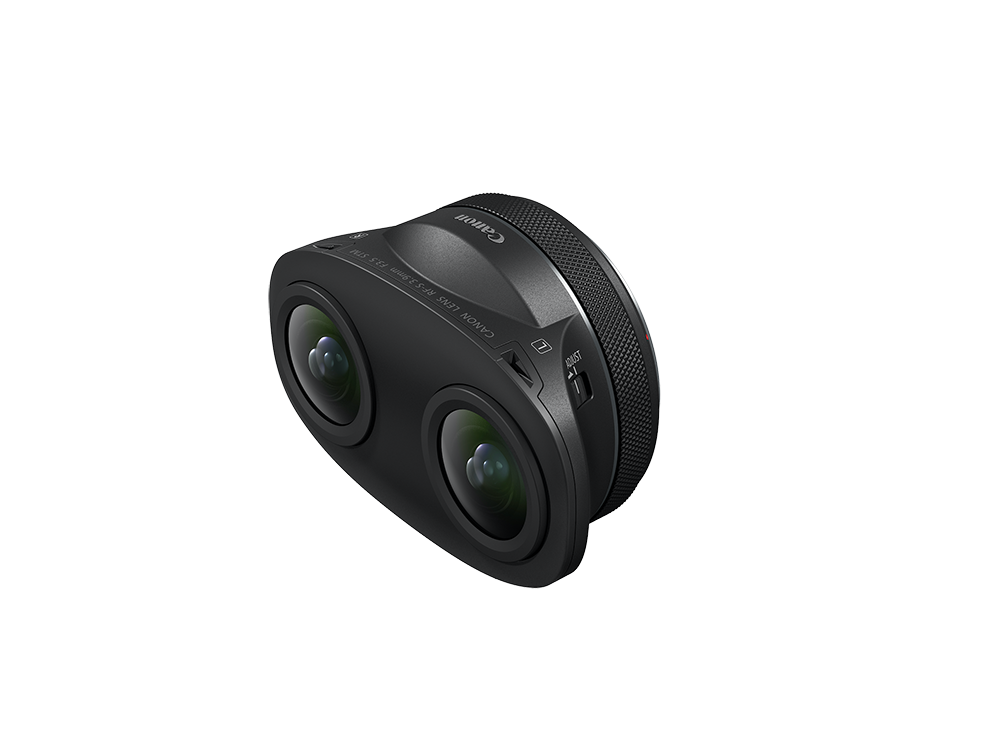

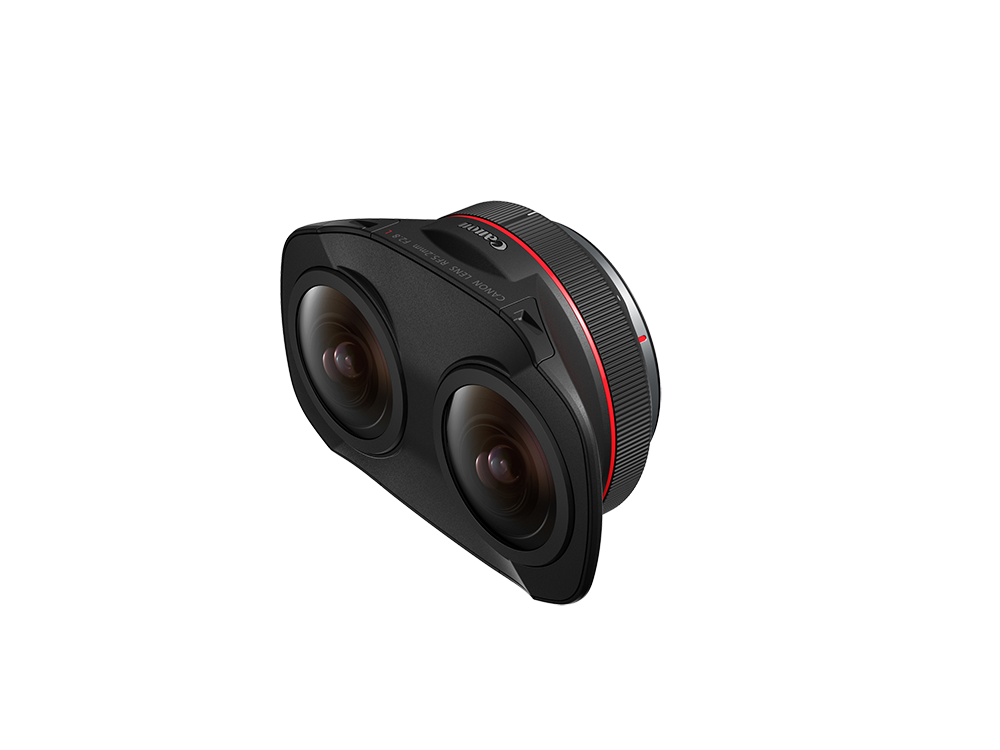

RF5.2mm F2.8 L DUAL FISHEYE

This innovative lens makes 3D VR video production more accessible. It is Canon’s first VR lens that can capture two fisheye images at a 180° viewing angle, for both left and right eyes. High-quality 3D VR images can be captured easily, with a single compatible camera,* by recording two images side-by-side. The unique optical characteristics of the L-series lens provide superior resolution even in the corners of the picture. In addition, the twin-lens motorized iris diaphragm (EMD: Electro-magnetic Diaphragm) and gelatin filter holder make shooting smooth and comfortable. With this lens, almost anyone can create 3D VR pictures.

* Please check the product page for compatible cameras.

Spec

Angle of view (horizontal/ vertical/ diagonal) 190°00’ / 190°00’ / 190°00’
Lens construction 12 elements in 10 groups
Aperture blades 7
Min. aperture 16
Min. focusing distance 0.2m
Max. magnification 0.03x
Filter size Gelatin filter can be mounted on the back of the lens
Max. diameter x Length Approx. 121.1 (width) x 53.5mm
Weight Approx. 350g
Compatible cameras EOS R5 C*/EOS R5*/EOS R6 Mark II*

* With upgraded firmware

Mounted technology

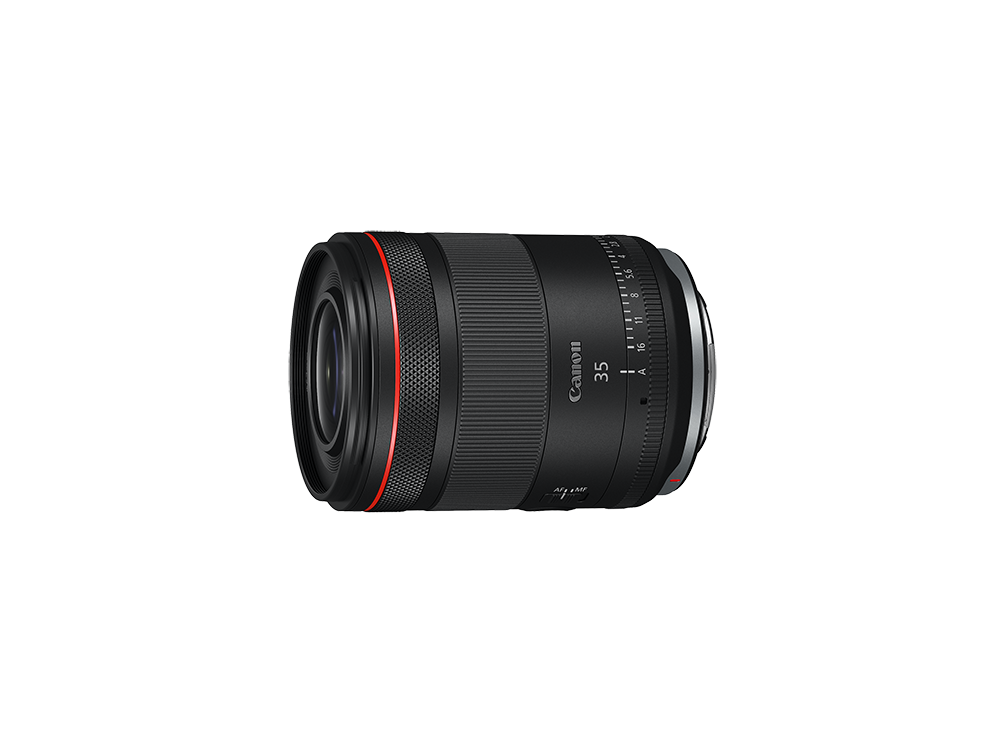

RF35mm F1.4 L VCM

This new RF lens offers far greater freedom of expression and allows users to switch seamlessly between taking still photos and movies. A 35mm lens offers a perspective very similar to the natural field of view of the human eye. With a large, f/1.4 aperture, this is the first in a line of single-focal-length lenses that Canon hopes will foster a new era in photography, enabling even more dramatic artistic expression.
The optical system includes two finely balanced aspherical lens elements to provide high image quality in every corner of the picture. The RF35mm F1.4 L VCM delivers image quality equivalent or superior to that of the EF35mm f/1.4L II USM. The use of two UD lenses helps to reduce color bleeding. By placing more lens elements toward the front of the unit, the lens also helps to suppress sagittal coma flare, which sometimes occurs when shooting with a fully open aperture.
Furthermore, the RF35mm F1.4 L VCM is the first Canon EF/RF lens to incorporate a Voice Coil Motor (VCM). The VCM is an actuator designed to handle heavier lenses. The electronic floating focus control and nano USM work in tandem to provide fast,smooth, and quiet focusing control for even a heavy, large-diameter lens. The mechanism drives each of the two focus lens groups independently, to suppress “breathing” (alterations in the angle-of-view from close-up to infinity). This facilitates stable composition when shooting video footage, and high image quality when shooting close-ups.
The control system features an iris ring to control the aperture when shooting movies. The compact design leverages the strengths of the EOS R system, reducing total weight by approximately 27% compared to the EF35mm f/1.4L II USM.

Spec

Angle of view (horizontal/ vertical/ diagonal) 54° / 38° / 63°
Lens construction 14 elements in 11 groups
Aperture blades 11 (circular shape)
Min. aperture 16
Min. focusing distance 0.28m
Max. magnification 0.18x
Filter size 67mm
Max. diameter x Length Approx. φ76.5 x 99.3mm
Weight Approx. 555g

Mounted technology

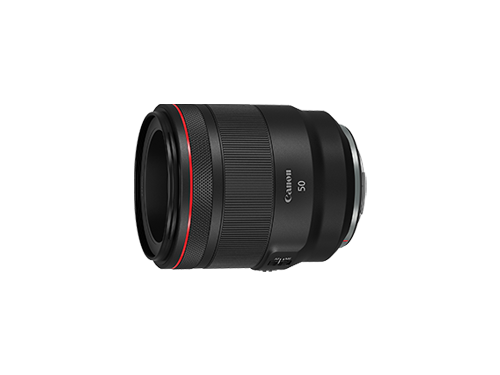

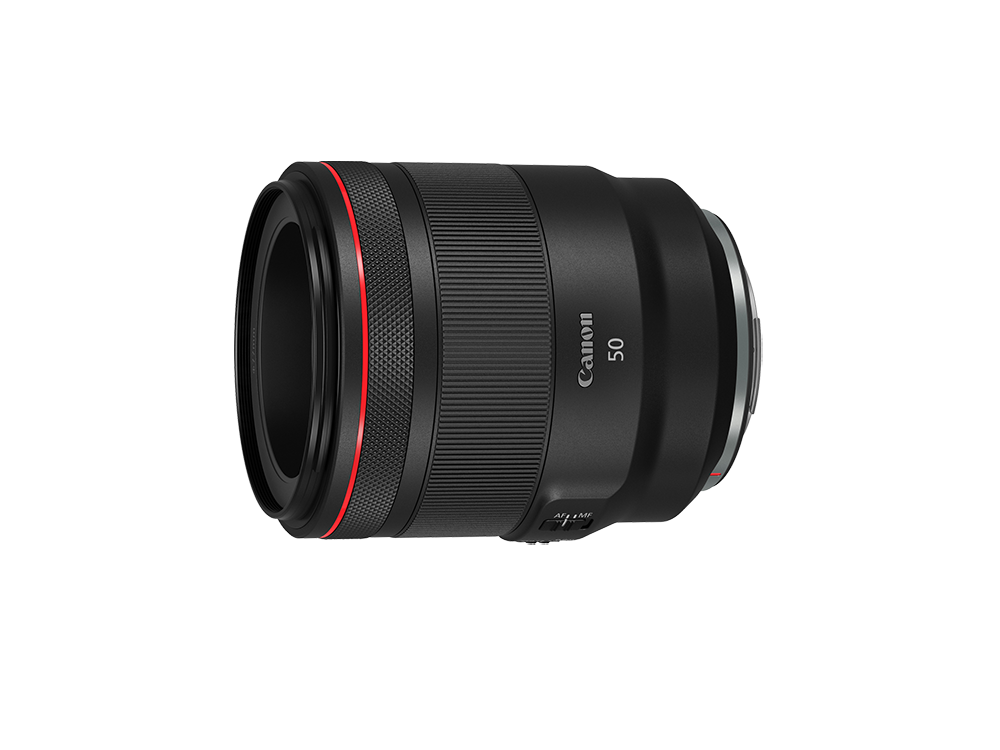

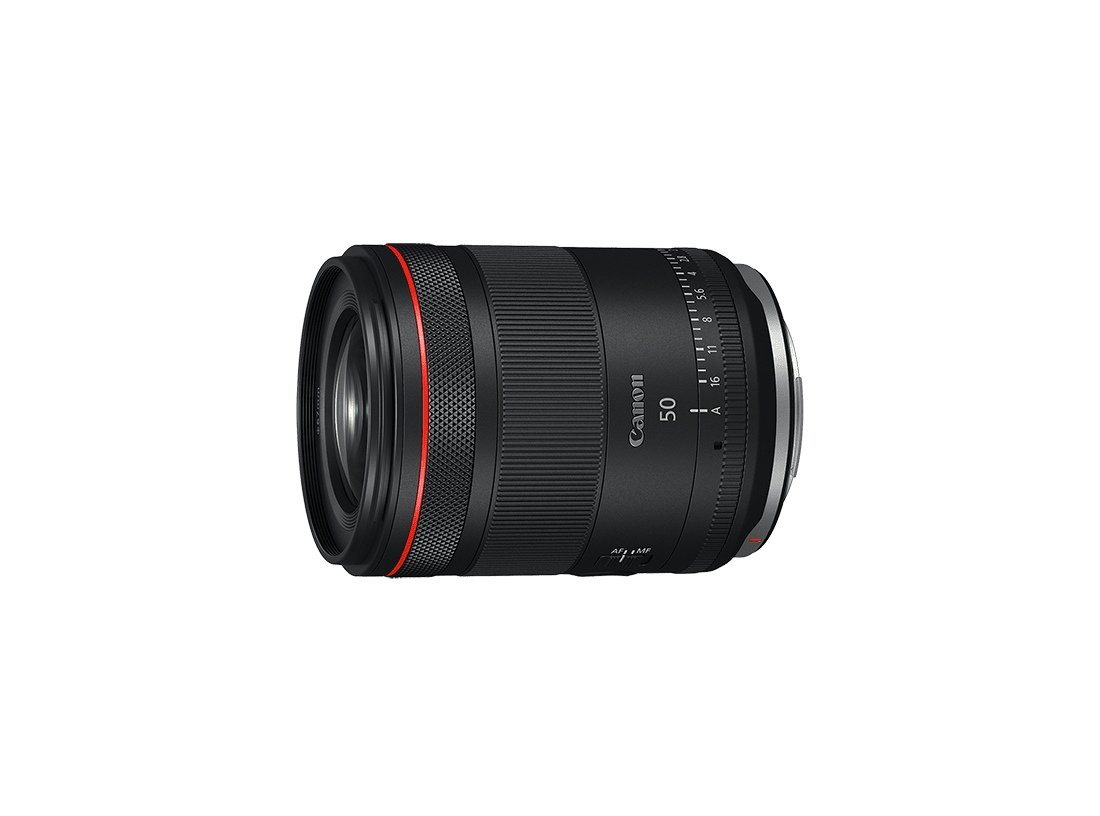

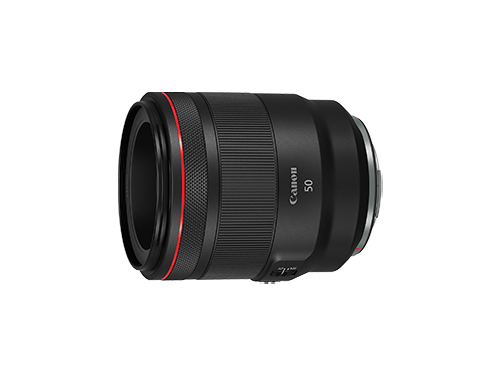

RF50mm F1.2 L USM

This standard single-focal-length lens has a wide aperture with a maximum f-stop setting of f/1.2, producing beautiful bokeh effects and a sharpness that transcends that of conventional standard lenses, and expands the potential range of artistic expression. The large-diameter, short back focus characteristics of the RF mount support a more flexible optical design, for unprecedented improvements in lens performance. An effective arrangement of ground aspherical elements and Ultra-low Dispersion (UD) elements suppress chromatic aberration, and provide outstanding image quality in all types of photos. Special Air Sphere Coating (ASC) technology further reduces the chance of lens flare or ghosting, which can ruin a photo. The RF50mm F1.2 L USM lens is one example of how Canon is breaking new ground in lens performance, providing the highest degree of expressiveness, operability and durability.

Spec

Angle of view (horizontal/ vertical/ diagonal) 40° / 27° / 46°
Lens construction 15 elements in 9 groups
Aperture blades 10 (circular shape)
Min. aperture 16
Min. focusing distance 0.4m
Max. magnification 0.19x
Filter size 77mm
Max. diameter x Length Approx. φ89.8 x 108mm
Weight Approx. 950g

Mounted technology

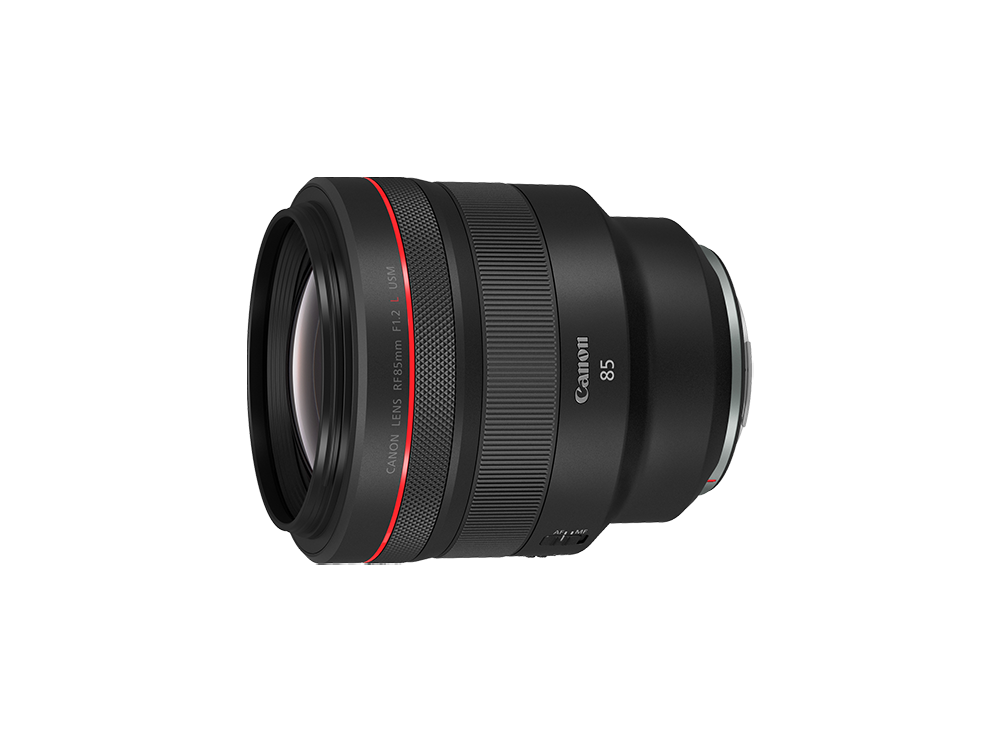

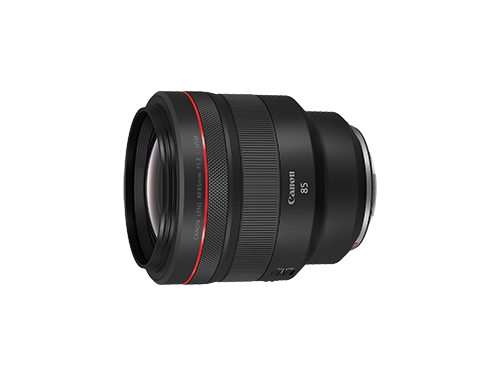

RF85mm F1.2 L USM

The 85mm F1.2 lens brings together a range of optical technologies to maximize image quality. This standard, large-aperture, single-focal-length lens delivers high resolution, high contrast, and a rich, beautiful bokeh effect. At the maximum aperture setting the lens delivers crisp resolution in all areas of the image for breathtaking photos. The Blue-spectrum Refractive-optics (BR) lens, Ultra-low Dispersion (UD) lens, and aspherical lens are effectively positioned to reduce chromatic aberration significantly. The lens is also equipped with a Dual Pixel CMOS AF system. The Dual Pixel CMOS AF and optimized lens control enhance AF precision, allowing the photographer to focus only on the target area even with an extremely shallow (f/1.2) depth of field. In addition, Air Sphere Coating (ASC) significantly reduces the possibility of lens flare or ghosting. A dust- and water-resistant* fluorine coating makes it easy to maintain. This lens is one of the most representative of Canon’s portrait lenses.

* This does not guarantee that water and dust will not penetrate the camera. To ensure proper dust- and water-resistance, the lens must be attached to the camera body.

Spec

Angle of view (horizontal/ vertical/ diagonal) 24° / 16° / 28°30'
Lens construction 13 elements in 9 groups
Aperture blades 9 (circular shape)
Min. aperture 16
Min. focusing distance 0.85m
Max. magnification 0.12x
Filter size 82mm
Max. diameter x Length Approx. φ103.2 x 117.3mm
Weight Approx. 1,195g

Mounted technology

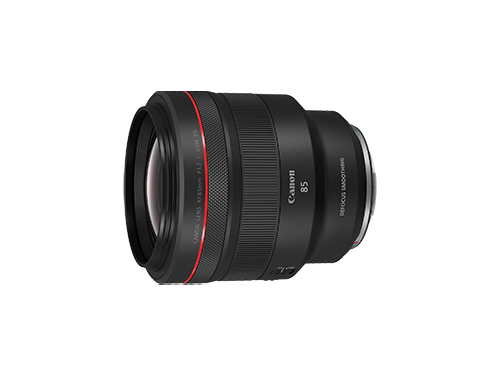

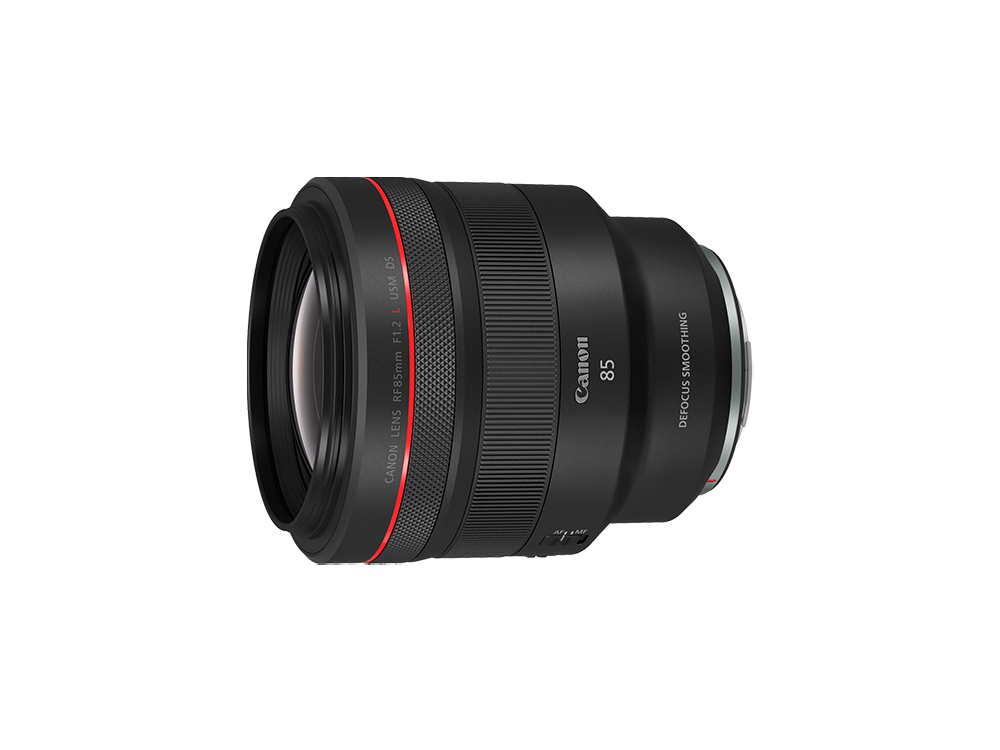

RF85mm F1.2 L USM DS

Canon’s unique Defocus Smoothing (DS) coating* helps to bring out the subject in portrait photography, helping the RF85mm F1.2 L USM to achieve a more beautiful bokeh effect, without changing the optical system. DS coating is a deposition technology that gradually reduces transmittance by increasingly blocking light radiation from the center to the periphery of the lens. The DS coating softens and blurs the outlines of the subject images, resulting in a smooth and beautiful bokeh effect. In addition, its imaging qualities, the lens also offers the highest level of performance in terms of operability, rigidity, dust- and water-resistance, and other features, delivering comfortable operation and high durability. This lens is ideal for photographers who aim for the highest level in portrait photography.

* The DS coating lower transmittance toward the lens periphery, so lens brightness at maximum aperture is approximately 1⅓ stop darker than at f/1.2. By updating the camera firmware to the latest version, exposure control in AE will operate properly.

Spec

Angle of view (horizontal/ vertical/ diagonal) 24° / 16° / 28°30'
Lens construction 13 elements in 9 groups
Aperture blades 9 (circular shape)
Min. aperture 16
Min. focusing distance 0.85m
Max. magnification 0.12x
Filter size 82mm
Max. diameter x Length Approx. φ103.2 x 117.3mm
Weight Approx. 1,195g

Mounted technology

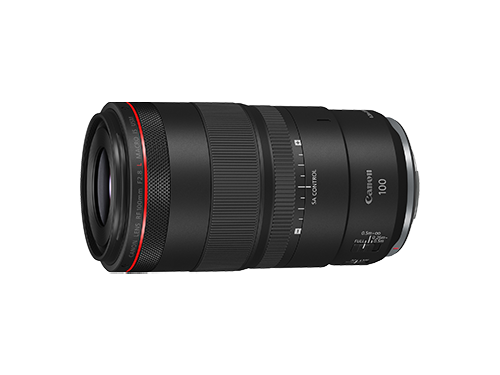

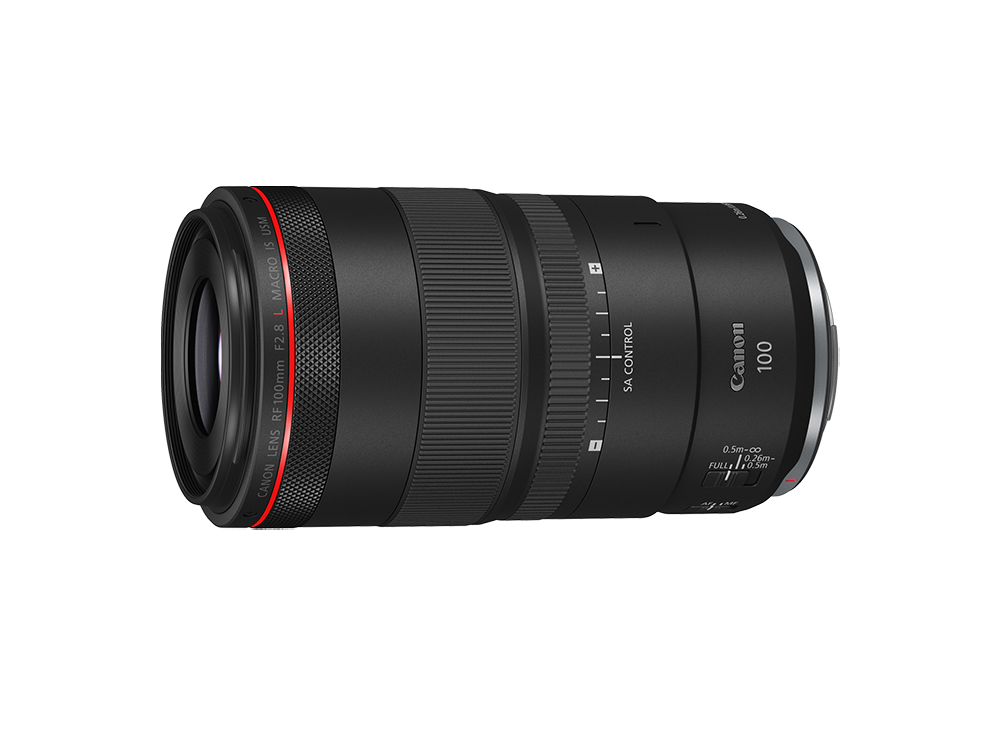

RF100mm F2.8 L MACRO IS USM

This “L” Macro Lens takes the world of macro photography to another level. The new optical design reduces various aberrations that cause image quality deterioration, through the means such as suppressing spherical aberration when shooting at close range. The lens delivers high image quality equivalent to that of the EF100mm f/2.8L Macro IS USM. It has a maximum magnification of 1.4x (minimum focus distance 0.26m) — far beyond the top magnification of ordinary macro lenses (1.0x). This allows the photographer to get closer to the subject, to capture powerful images and the finest details and textures of small objects, flowers, and other living creatures. The lens also features Canon's first Spherical Aberration (SA) Control Ring, which allows the photographer to adjust the spherical aberration. This allows photographers to easily achieve a variety of photographic expressions, including images with out-of-focus elements (bokeh) to match their own preferences. When used in coordinated control with the camera’s in-body IS, the lens offers image stabilization equivalent to an 8.0-stop* increase in shutter speed, further expanding the possibilities of hand-held macro photography.

* According to CIPA standards. When EOS R5 is used (yaw/pitch directions only).

Spec

Angle of view (horizontal/ vertical/ diagonal) 20°00’ / 14°00’ / 24°00’
Lens construction 17 elements in 13 groups
Aperture blades 9
Min. aperture 32
Min. focusing distance 0.26m
Max. magnification 1.4x
Filter size 67mm
Max. diameter x Length Approx. φ81.5mm x 148mm
Weight Approx. 685g

Mounted technology

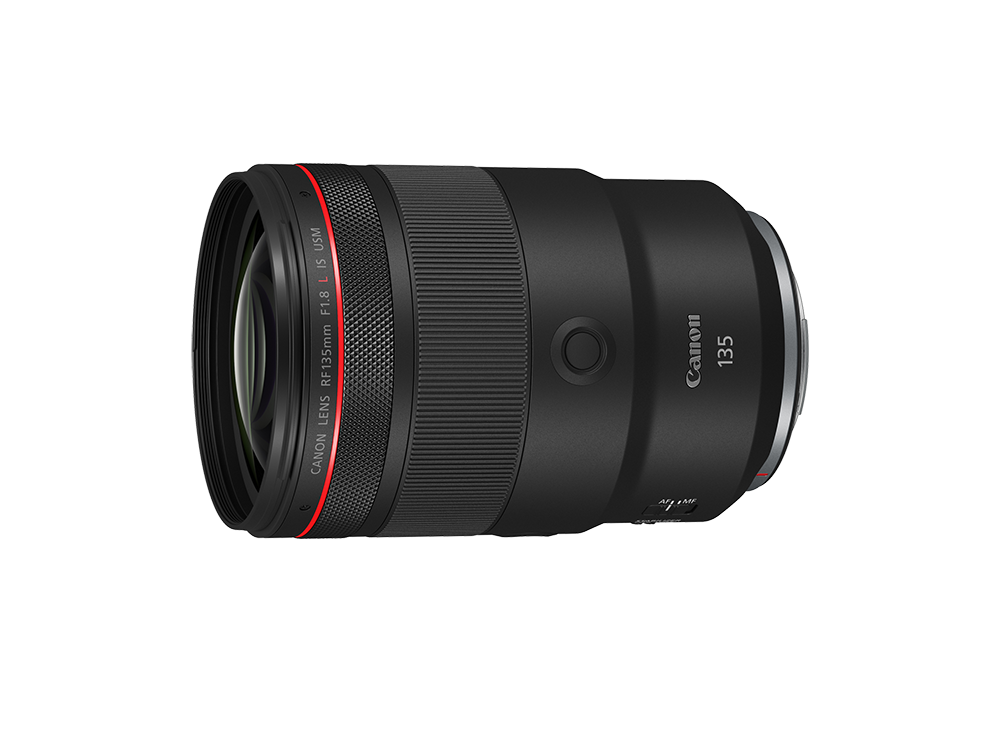

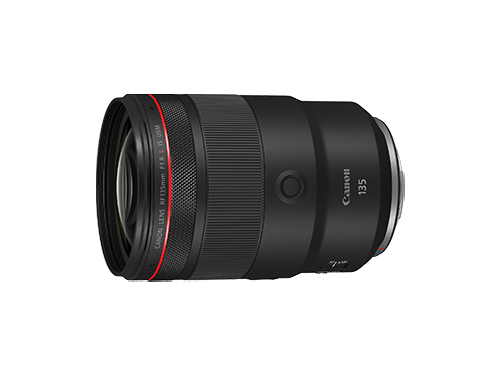

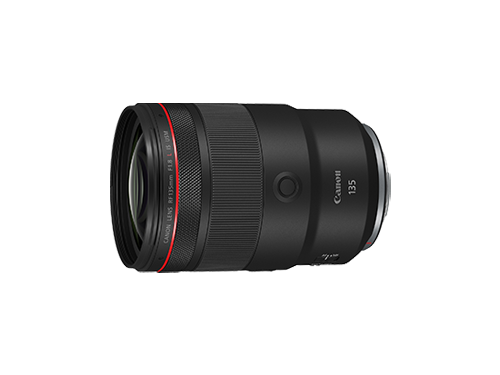

RF135mm F1.8 L IS USM

A large-aperture, mid-telephoto single-focal length lens with a maximum aperture of f/1.8 — surpassing that of the EF135mm f/2L USM. Three Ultra Low Dispersion (UD) lens elements are used to suppress chromatic aberration and deliver crisp, clear images. This is the only 135mm single-focal-length lens*¹ with an in-lens image stabilization (IS) mechanism. When used in coordinated control with the camera’s in-body IS, the camera-shake blur compensation is as effective as an increase of up to 8.0 stops*² in shutter speed. A fluorine coating and other features make the lens dust- and water-resistant*³, and easy to maintain. The lens features a lens function button to which functions can be assigned, as well as a control ring. This lens excels in achieving the compression effect and bokeh effect unique to mid-telephoto lenses.

*1 As of November 2022. According to Canon survey.
*2 When EOS R3 is used. Conforms to CIPA standards (yaw/pitch directions only).
*3 The coating does not guarantee that water and dust will not penetrate the camera.

Spec

Angle of view (horizontal/ vertical/ diagonal) 15°00’ / 10°00’ / 18°00’
Lens construction 17 elements in 12 groups
Aperture blades 9
Min. aperture 22
Min. focusing distance 0.70m
Max. magnification 0.26x
Filter size 82mm
Max. diameter x Length Approx. φ89.2mm x 130.3mm
Weight Approx. 935g

Mounted technology

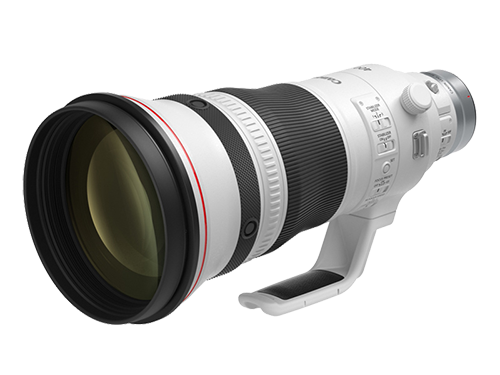

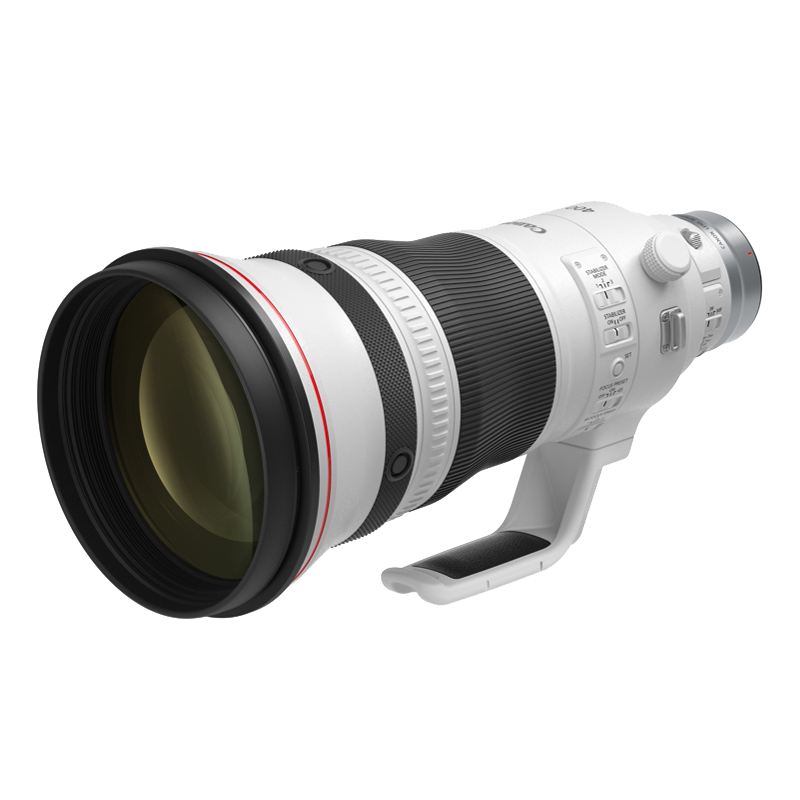

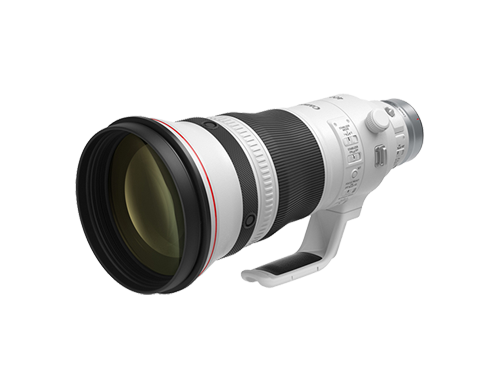

RF400mm F2.8 L IS USM

The RF mount design inherits the superior optics of the EF400mm f/2.8L IS III USM, offering high image quality and light weight. Two fluorite lenses and a super Ultra-low Dispersion (UD) lens provide high-resolution, high-contrast imaging performance. This is Canons flagship super-telephoto lens for professionals and advanced amateurs, offering clear, sharp, high image quality with no color bleeding. The light weight enhances mobility and allows photographers to capture stunning high-quality images. This lens is equipped with a switch that allows the user to select from three manual focus speeds. It also features a thermal barrier coating to prevent the lens body from accumulating heat, when used in the hot sun. The image stabilization effect of the lens alone is 5.5 stops*.

* According to CIPA standards.

Spec

Angle of view (horizontal/ vertical/ diagonal) 05°10’ / 03°30’ / 06°10’
Lens construction 17 elements in 13 groups
Aperture blades 9
Min. aperture 32
Min. focusing distance 2.5m
Max. magnification 0.17x
Filter size 52mm (Drop-in filter)
Max. diameter x Length Approx. φ163mm x 367mm
Weight Approx. 2,890g

Mounted technology

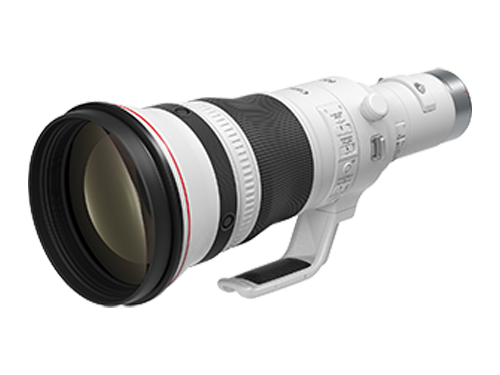

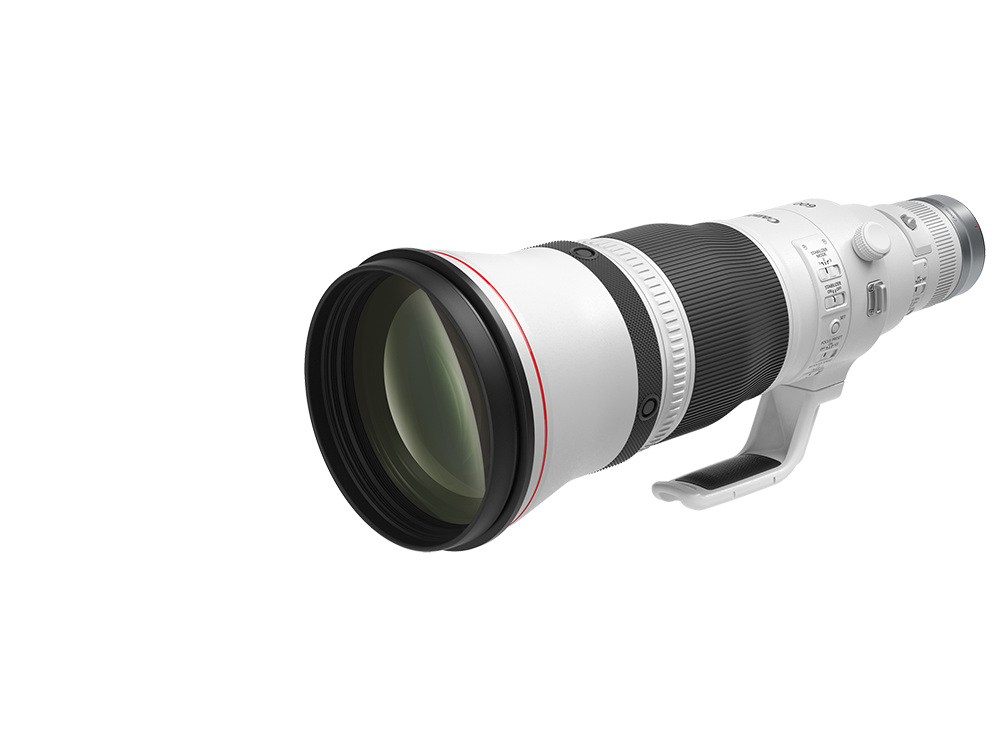

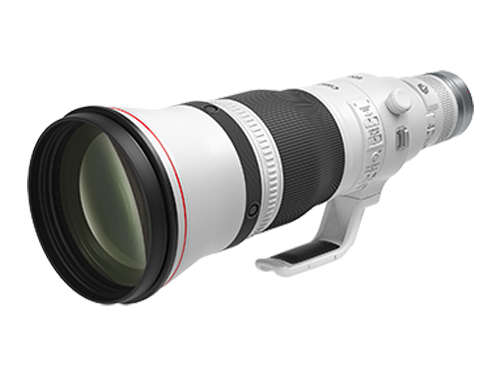

RF600mm F4 L IS USM

This 600mm super-telephoto single-focal-length L lens is now available with the long-awaited RF mount for professionals and advanced amateurs. The optical system of the EF600mm f/4L IS III USM has been succeeded with a design that reduces the weight of both the optical and the mechanical components. The optical components from the second lens onward have been consolidated in a compact and lightweight design, utilizing fluorite and Super Ultra-low Dispersion (UD) lenses. This also delivers high-resolution and high-contrast imaging performance. Despite its 600mm telephoto range, the lens’ IS mechanism offers image stabilization equivalent to a 5.5-stop* increase in shutter speed. The lens is equipped with a switch that allows the user to select from three manual focus speeds, and a thermal barrier coating to prevent the lens body from accumulating heat, when used in the hot sun. This high-performance lens meets the telephoto needs of professionals and advanced amateurs.

* According to CIPA standards.

Spec

Angle of view (horizontal/ vertical/ diagonal) 03°30’ / 02°20’ / 04°10’
Lens construction 17 elements in 13 groups
Aperture blades 9
Min. aperture 32
Min. focusing distance 4.2m
Max. magnification 0.15x
Filter size 52mm (Drop-in filter)
Max. diameter x Length Approx. φ168mm x 472mm
Weight Approx. 3,090g

Mounted technology

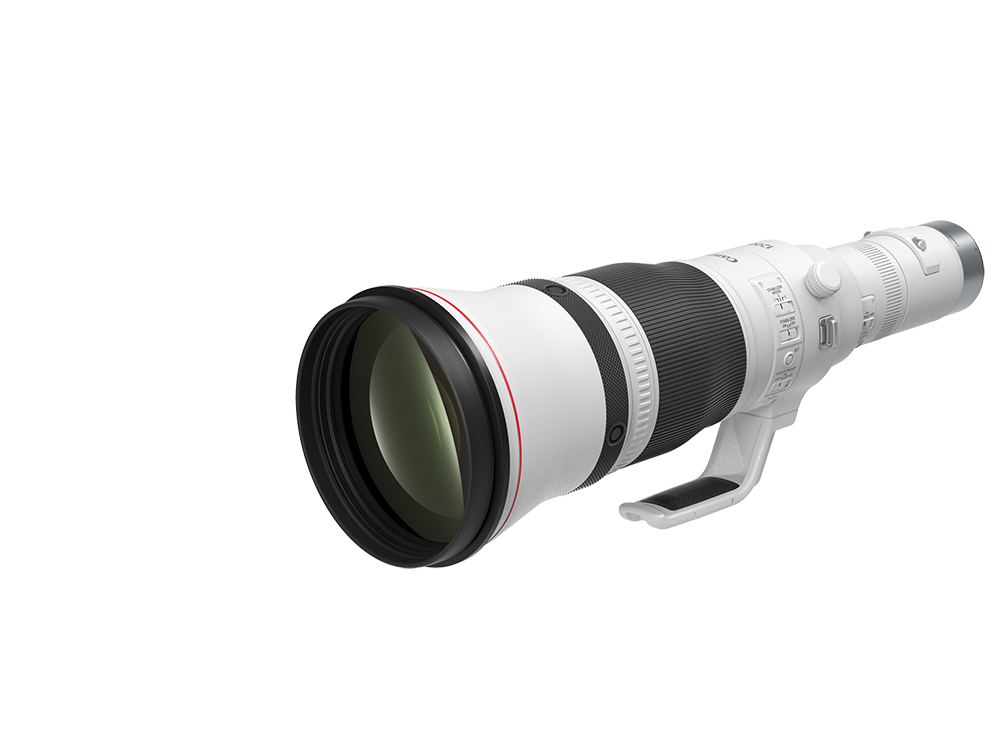

RF800mm F5.6 L IS USM

This is a compact and lightweight 800mm super-telephoto lens with enhanced practicality. The excellent optical system includes a UD (Ultra Low Dispersion) lens at the rear end for optimal magnification. The use of fluorite and super UD lenses and other elements delivers clear, sharp, high image quality with no color bleeding. The camera supports high-speed continuous shooting, and burst shooting at a maximum speed of 30 fps*¹. The exterior features a thermal barrier coating to prevent the lens body from accumulating heat, when used in the hot sun, as well as a number of focus control functions. In-lens IS provides image stabilization as effective as a 4.5 stop*² increase in shutter speed. The EXTENDER RF 1.4x and EXTENDER RF 2x can be attached to extend the focal length of the lens by 1.4x and 2x, respectively. These accessories extend the shooting range for a variety of photographic subjects, including wildlife, aircraft, sports, and astronomy.

*1 When using the EOS R3 camera and an electronic shutter.
*2 According to CIPA standards.

Spec

Angle of view (horizontal/ vertical/ diagonal) 02°35’ / 01°40’ / 03°05’
Lens construction 26 elements in 18 groups
Aperture blades 9
Min. aperture 64
Min. focusing distance 2.6m
Max. magnification 0.34x
Filter size 52mm (Drop-in filter)
Max. diameter x Length Approx. φ163mm x 432mm
Weight Approx. 3,140g

Mounted technology

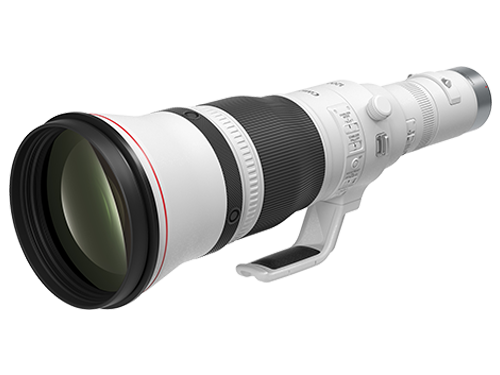

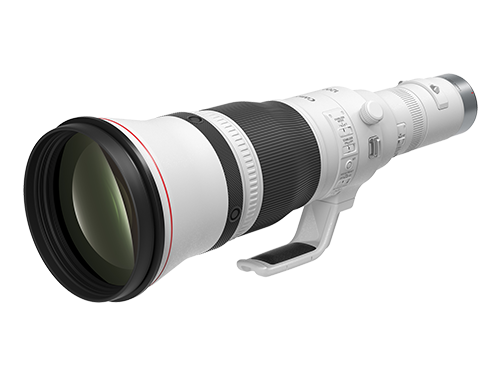

RF1200mm F8 L IS USM

This is a 1200mm super-telephoto lens, with performance that is only possible thanks to the RF mount design. The lens uses the same basic optical design as the RF600mm F4 L IS USM, which offers an ideal balance of light weight and high image quality. By placing optimized magnification optics at the rear of the lens, Canon was able to reduce the dimensions and weight significantly compared with the predecessor model — the EF1200mm f/5.6L USM. It is extremely light for a 1200mm interchangeable lens for SLR-type mirrorless cameras (approximately 3,340g). The lens also features fluorite and super Ultra-low Dispersion (UD) lens components for clear, sharp, high image quality with no color bleeding. When combined with the EXTENDER RF 1.4x or EXTENDER RF 2x, it is possible to capture subjects at a great distance. Even with an extender attached, it can deliver the high image quality one expects from an L-series lens.

Spec

Angle of view (horizontal/ vertical/ diagonal) 01°45’ / 01°10’ / 02°05’
Lens construction 26 elements in 18 groups
Aperture blades 9
Min. aperture 64
Min. focusing distance 4.3m
Max. magnification 0.29x
Filter size 52mm (Drop-in filter)
Max. diameter x Length Approx. φ168mm x 537mm
Weight Approx. 3,340g

Mounted technology

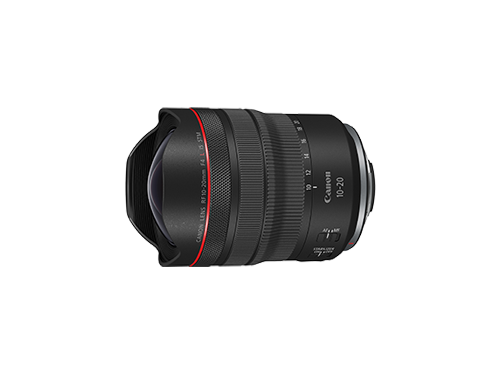

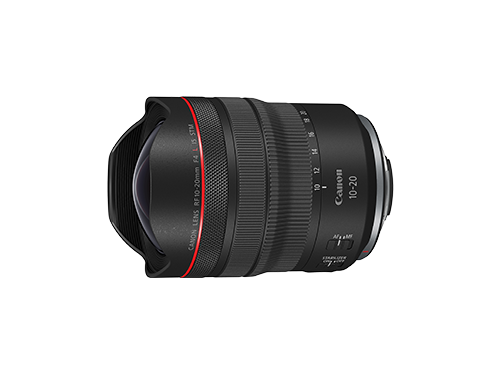

RF10-20mm F4 L IS STM

The world’s first*¹ ultra-wide-angle 10mm zoom lens further expands the ultra-wide-angle range of the EF11-24mm F4L USM. It includes aspherical and Ultra-low Dispersion (UD) lens components to provide clear photos with minimal color bleeding, even in the corners of the image. The lens weighs approximately half as much as the EF11-24mm F4L USM (lens only), yet offers equivalent or better image quality. The lens is also equipped with an in-lens optical image stabilizer that allows hand-held shooting in dark venues, and long-exposure (slow shutter) shots. The lens is also compatible with Canon’s first-ever Peripheral Coordination Control*² *³ function, which corrects the peripheral blurring that often plagues wide-angle photography. Air Sphere Coating (ASC) also greatly reduces the chance of lens flare or ghosting. The possibilities for image expression are limited only by the imagination of the photographer.

*1 As of October 10, 2023, for AF-compatible interchangeable zoom lenses (excluding fisheye lenses) for 35mm full-frame SLR-type cameras. According to Canon survey.
*2 This function is available on compatible cameras (EOS R5 with ver. 1.9.0 or later, as of October 10, 2023), only when the Movie Digital IS is turned off.
*3 Use of Movie Digital IS is recommended when recording videos that involve a lot of panning or considerable screen shake.

Spec

Angle of view (horizontal/ vertical/ diagonal) 121°55’~84° / 100°25’~62° / 130°25’~94°
Lens construction 16 elements in 12 groups
Aperture blades 9
Min. aperture 22
Min. focusing distance 0.25m
Max. magnification 0.12x at 20mm
Filter size Gelatin filter can be mounted on the back of the lens
Max. diameter x Length Approx. φ83.7mm x 112mm
Weight Approx. 570g

Mounted technology

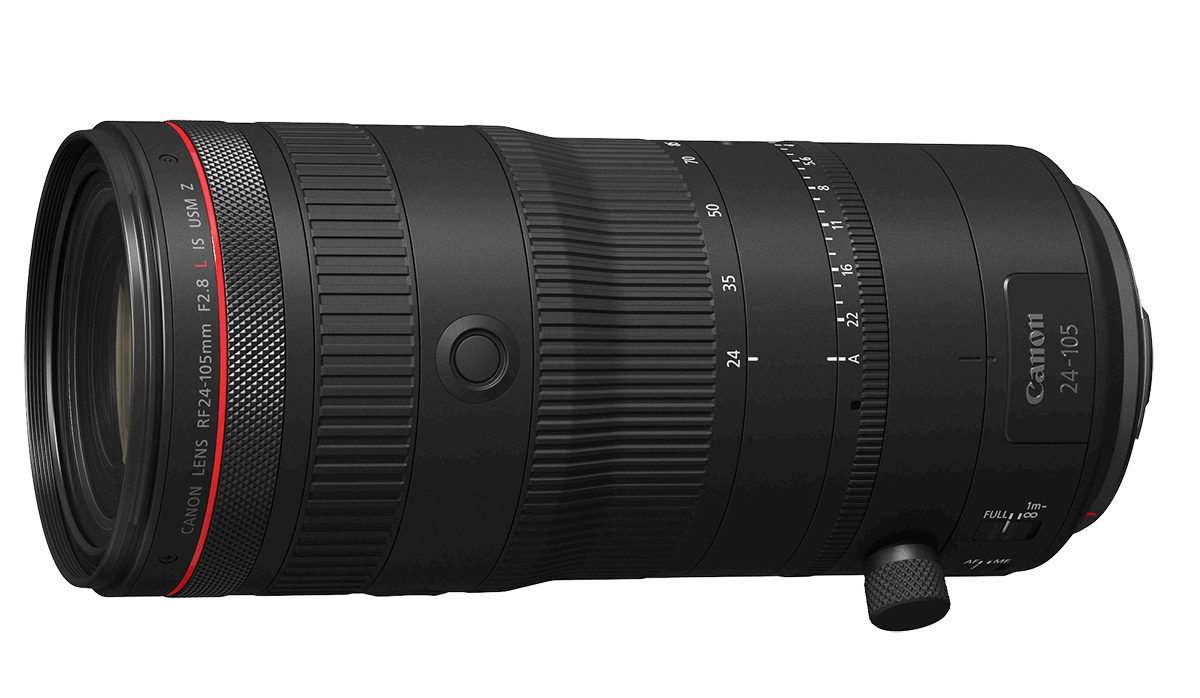

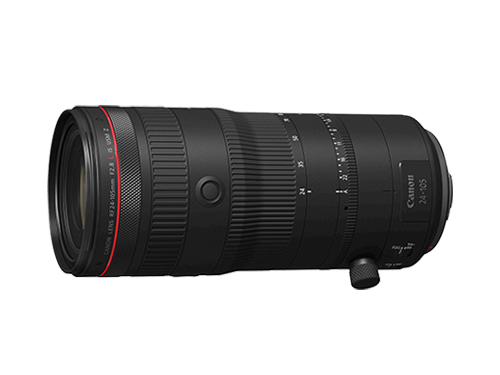

RF24-105mm F2.8 L IS USM Z

The 24-105mm F4 series has established itself as one of the most popular lenses in the L lens history. It is the first interchangeable Canon lens to increase the maximum aperture setting from f/4 to a fixed f/2.8, across the entire zoom range. In addition to a new optical structure, featuring a fixed front lens element and movable multi-component lens elements in the rear. With three aspherical lens elements and four Ultra-low Dispersion (UD) lens elements, this lens achieves high image quality which matches that of the RF24-70mm F2.8 L IS USM. It also supports high-resolution 8K movie shooting. The lens is equipped with two nano Ultrasonic Motors (USM) that offer high-speed AF for still image shooting and smoothly adjusting AF for recording movies. Two floating focal groups are driven independently by two nano USMs, thus providing high image quality. The lens is equipped with an iris (aperture) ring, and it is the first RF lens to support comfortable unassisted single-person movie shooting. It is compatible with the PZ-E2/PZ-E2B Power Zoom Adapter (sold separately), which ensures a smooth zoom that is difficult to achieve manually. This is one of the lenses that Canon has developed to usher in a new age of photographic expression.

Spec

Angle of view (horizontal/ vertical/ diagonal) 74°~19°20’ / 53°~13° / 84°~23°20’
Lens construction 23 elements in 18 groups
Aperture blades 11
Min. aperture 22
Min. focusing distance 0.45m at 24mm~105mm
Max. magnification 0.08x at 24mm, 0.29x at 105mm
Filter size 82mm
Max. diameter x Length Approx. φ88.5mm x 199mm
Weight Approx. 1,330g (without tripod mount)

Mounted technology

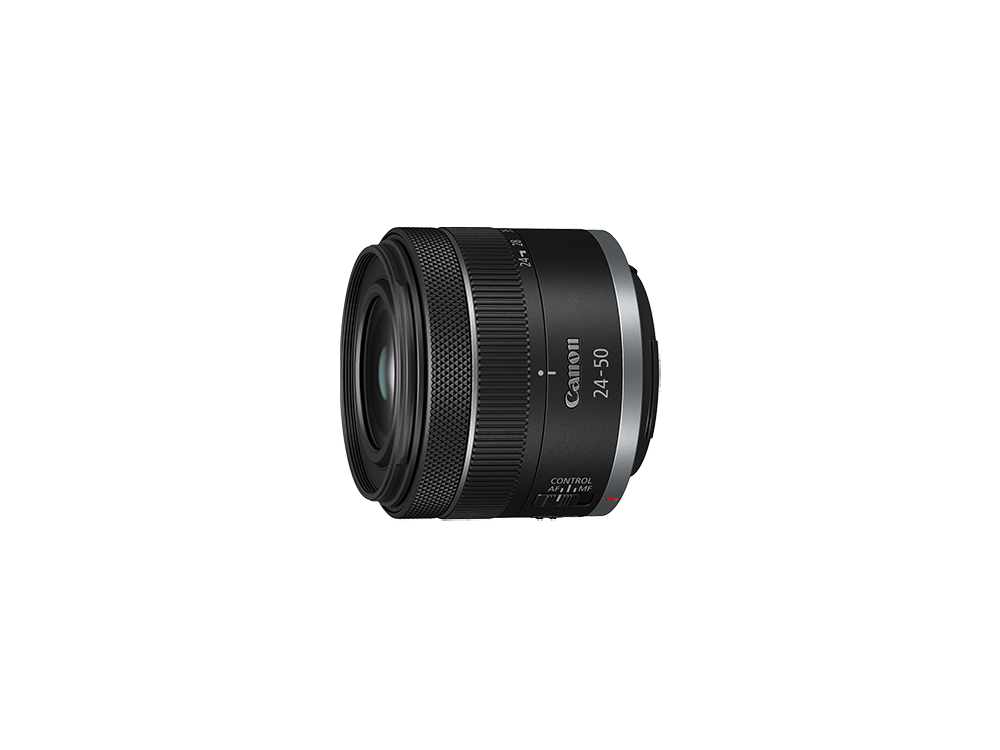

RF24-50mm F4.5-6.3 IS STM

This is a lightweight, compact standard zoom lens weighing approximately 210g, and with an overall length of about 58mm. Effectively placed optical components deliver high optical quality, and produce images with minimal image deformation even when shooting at a wide angle. The lead screw type STM supports smooth autofocus when shooting videos. The image stabilization mechanism is as effective at reducing camera-shake blur as a 4.5-stop increase in shutter speed*¹. This standard zoom lens is an accessible choice for beginners who are using a full-frame mirrorless camera for the first time.

*1 When used with EOS R cameras at a focal length of 50mm. Based on CIPA standards. Effective in the yaw and pitch directions only.
This lens is equipped with a focus/control ring that integrates the focus ring and the control ring.

Spec

Angle of view (horizontal/vertical/diagonal) 74°00‘~40°00’/53°00‘~27°00’/84°00‘~46°00’
Lens construction 8 elements in 8 groups
Aperture blades 7
Min. aperture 32 at 50mm
Min. focusing distance 0.3m at 24mm
Max. magnification 0.19x (at 50mm)
Filter size 58mm
Max. diameter x Length Approx. φ69.1mm×58mm
Weight Approx. 210g

Mounted technology

RF24-105mm F4-7.1 IS STM

The 24-105mm lens, a standard in the L-lens series, is now available as a lightweight, compact standard zoom lens weighing approximately 395g. With a convenient focal length range, the RF24-105mm F4-7.1 IS STM is suitable for a wide range of everyday photographic situations. The large aperture mount and short back-focus provide high image quality from the center of the image to the periphery, and the 7-blade aperture produces a beautiful bokeh effect.
This lens has image stabilization is as effective as a 5-stop increase in shutter speed*¹ and a control ring*², making it ideal for first-time users of interchangeable-lens cameras. The lens is also equipped with the Center Focus Macro function, which supports a minimum shooting distance of 0.13m and a maximum magnification of 0.5x. This allows the user to get close to the subject at the wide end, and enjoy macro photographs with a strong bokeh effect in the background.

*1 When used with EOS R camera at a focal length of 105mm. Based on CIPA standards. Effective in the yaw and pitch directions only.
*2 This lens is equipped with a focus/control ring that integrates the focus ring and the control ring.

Spec

Angle of view (horizontal/vertical/diagonal) 74°~19°20′/53°~13°/84°~23°20′
Lens construction 13 elements in 11 groups
Aperture blades 7 (circular shape)
Min. aperture 40 at 105mm
Min. focusing distance 0.13m (manual focus at 24mm)
Max. magnification 0.5x (manual focus at 24mm)
Filter size 67mm
Max. diameter x Length Approx. φ76.6×88.8 mm
Weight Approx. 395g

Mounted technology

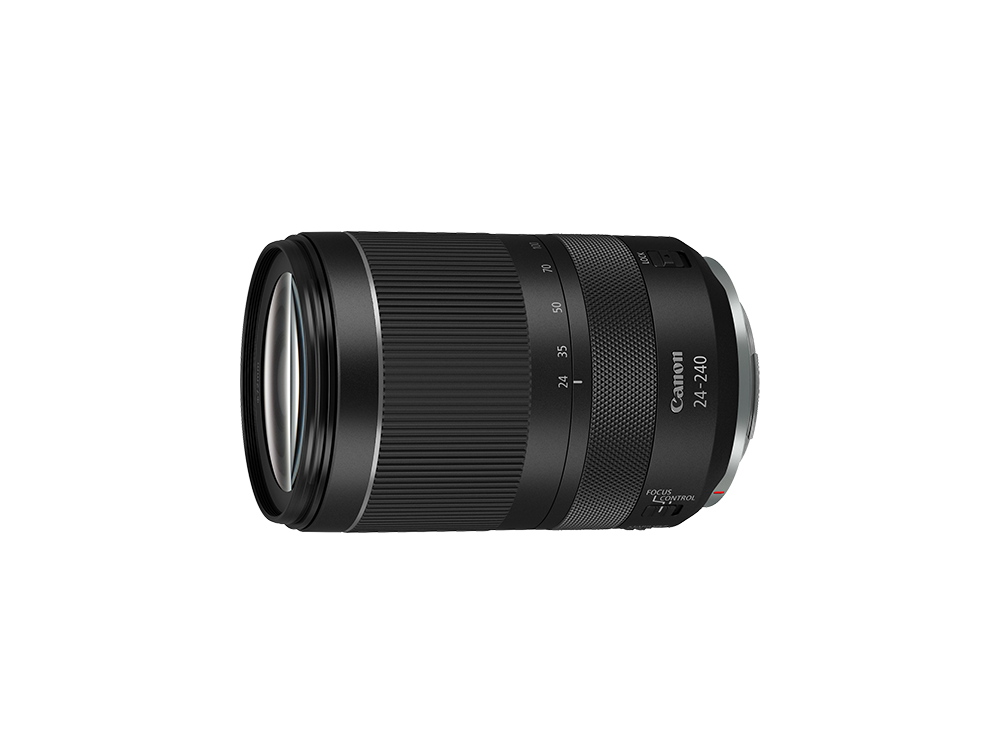

RF24-240mm F4-6.3 IS USM

This is a lightweight, compact 10x optical zoom lens that allows the user to take everything from everyday snapshots to travel photos with a single lens. The 240mm end of the zoom range offers an image compression effect that seems to reduce the distance between subjects in the foreground and those further away. At the 24mm wide-angle end, the lens lets the user achieve vivid expression with a wide field of view. Two UD lens elements and one aspherical lens element provide high image quality across the entire zoom range, from telephoto end to wide-angle end.
The image stabilizer as effective at reducing camera-shake blur as a 5-stop increase in shutter speed*¹, offering powerful support for hand-held shooting. The nano USM delivers smooth autofocus whether shooting still images or videos. The control ring*² supports easy operation.

*1 When used with EOS R camera at a focal length of 240mm. According to CIPA standards. Effective in the yaw and pitch directions only.
*2 This lens is equipped with a focus/control ring that integrates the focus ring and the control ring.

Spec

Angle of view (horizontal/vertical/diagonal) 74°~8°35′/53°~5°45′/84°~10°20′
Lens construction 21 elements in 15 groups
Aperture blades 7 (circular shape)
Min. aperture 36 at 240mm
Min. focusing distance 0.5m at 24mm
Max. magnification 0.26x at 240mm
Filter size 72mm
Max. diameter x Length Approx. φ80.4×122.5mm
Weight Approx. 750g

Mounted technology

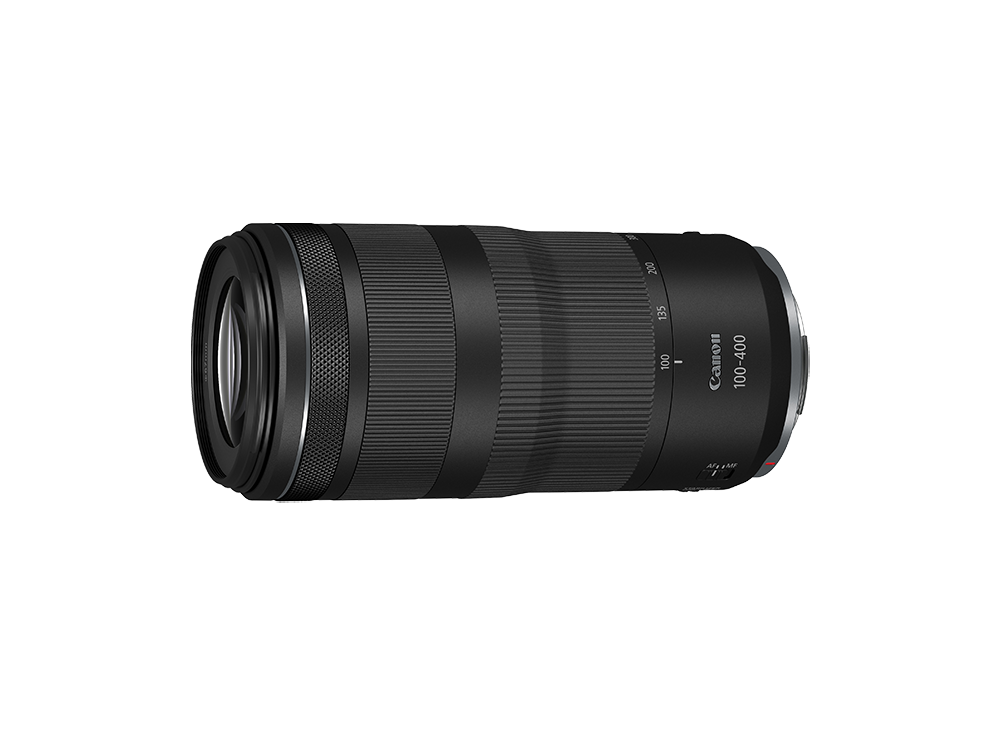

RF100-400mm F5.6-8 IS USM

The EF70-300mm f/4-5.6 IS II USM is a handy telephoto zoom lens that has been popular users over the years. The RF100-400mm F5.6-8 IS USM is based on that lens, but its range has been further extended at the telephoto end. A compact and lightweight lens with a zoom range of 100-400mm, it is about the size of a 350ml cup, and can be easily stowed and carried in a camera bag.
The lens also features a UD lens element, aspherical lens element, and other optics to maintain crisp, clear image quality. The minimum focus distance is 0.88m at the 200mm setting, allowing photographers to take advantage of the pronounced bokeh effect that is unique to telephoto lenses. The camera’s image stabilization (IS) performance is as effective at suppressing camera-shake blur as a 5.5-stop increase in shutter speed*¹. When used in conjunction with the in-body IS features of an EOS R camera, the performance improves to a 6.0-stop*² increase in shutter speed. A nano USM provides smooth AF whether taking still photos or videos.

*1 When used with EOS R camera at a focal length of 400mm. Based on CIPA standards. Effective in the yaw and pitch directions only.
*2 When used with EOS R camera at a focal length of 400mm. Based on CIPA standards. Effective in the yaw and pitch directions only.

Spec

Angle of view (horizontal/vertical/diagonal) 20°00′~5°10′/14°00′~3°30′/24°00
Lens construction 12 elements in 9 groups
Aperture blades 9
Min. aperture 45 at 400mm
Min. focusing distance 0.88m at 200mm
Max. magnification 0.41x at 400mm
Filter size 67mm
Max. diameter x Length Approx. φ79.5mm×164.7mm
Weight Approx. 635g

Mounted technology

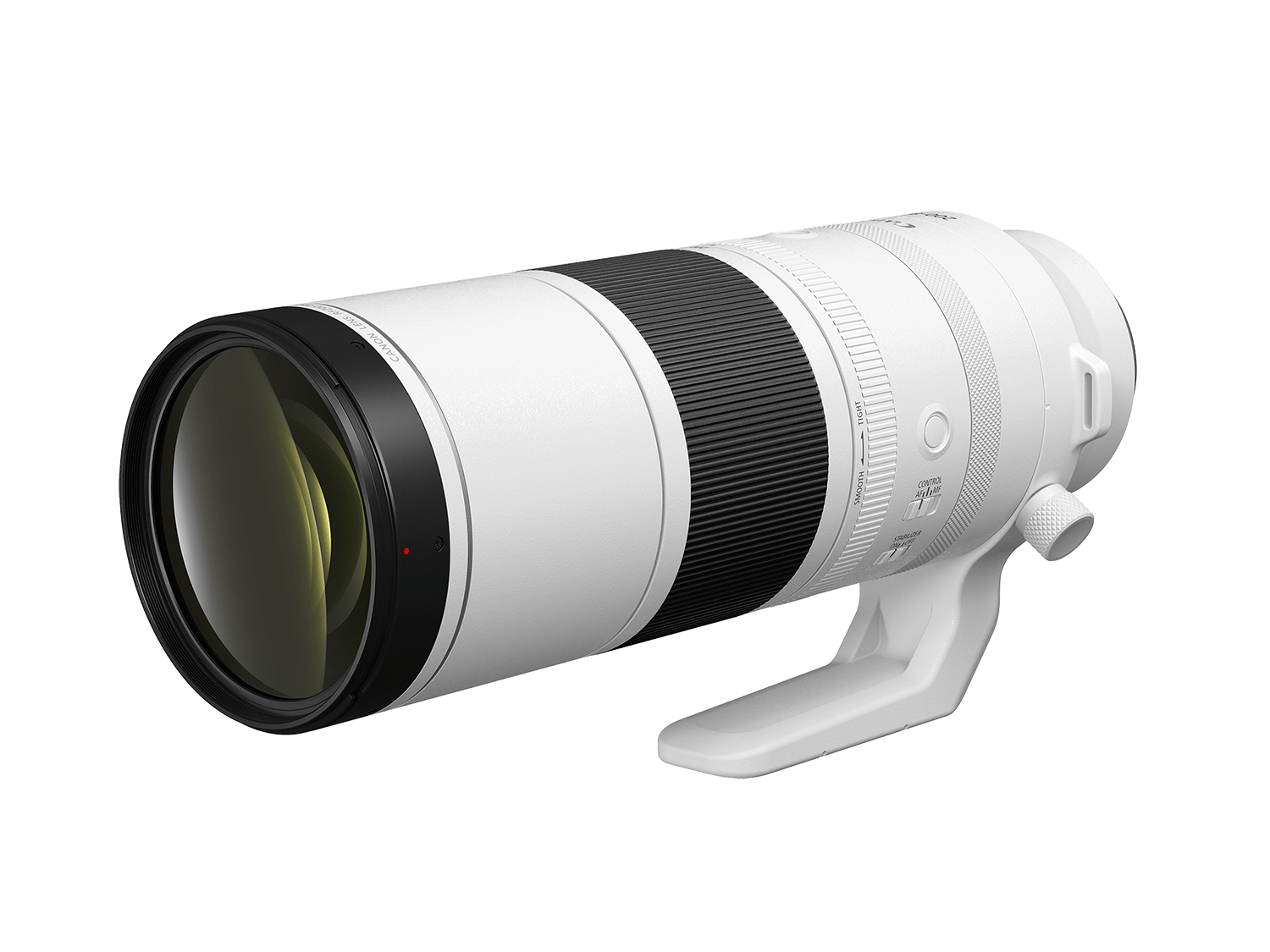

RF200-800mm F6.3-9 IS USM

The world’s first*¹ super-telephoto zoom lens with 4x magnification at the 800mm telephoto end, this one lens covers the entire range from 200mm to 800mm, for extreme close-ups. The RF200-800mm F6.3-9 IS USM is ideal for professionals and advanced amateurs who enjoy all genres of telephoto photography.

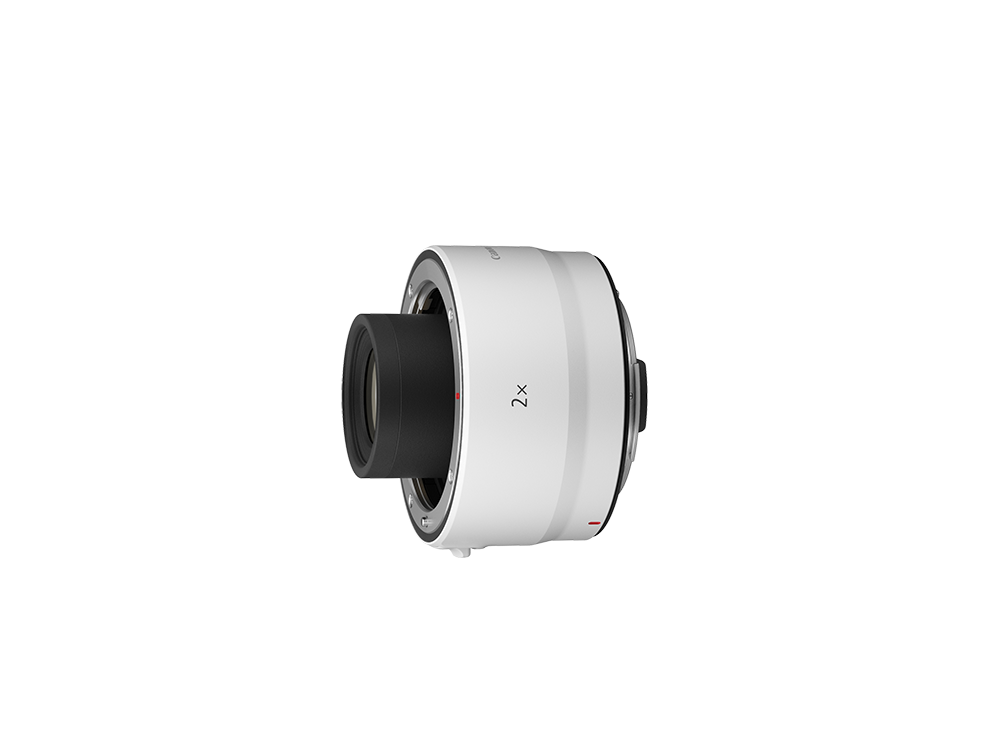

With an extender attached, the user can easily enjoy super-telephoto photography at a range of up to 1600mm. The lens is relatively compact for easy hand-held shooting, with an overall length of approximately 314.1mm and a weight of approximately 2,050g. The multi-group zoom configuration delivers high image quality with minimal color bleed across the entire zoom range. A nano USM provides smooth autofocus for both still photos and videos. The image stabilization (IS) performance of the lens alone is as effective at suppressing camera-shake blur as a 5.5-stop increase in shutter speed*².

*1 Refers to AF interchangeable lens for mirrorless cameras with full-frame sensors, released as of November 1, 2023. (Based on Canon internal surveys).
*2 When used with EOS R camera at a focal length of 800mm. Based on CIPA standards. Effective in the yaw and pitch directions only. Note: This lens is equipped with a focus/control ring that integrates the focus ring and the control ring.

Spec

Angle of view (horizontal/vertical/diagonal) 10°~2°35′/7°~1°40′/12°~3°0
Lens construction 17 elements in 11 groups
Aperture blades 9
Min. aperture 51 at 800mm
Min. focusing distance 0.8m at 200mm
Max. magnification 0.25x at 200mm
Filter size 95mm
Max. diameter x Length Approx. φ102.3mm×314.1mm
Weight Approx. 2,050g

Mounted technology

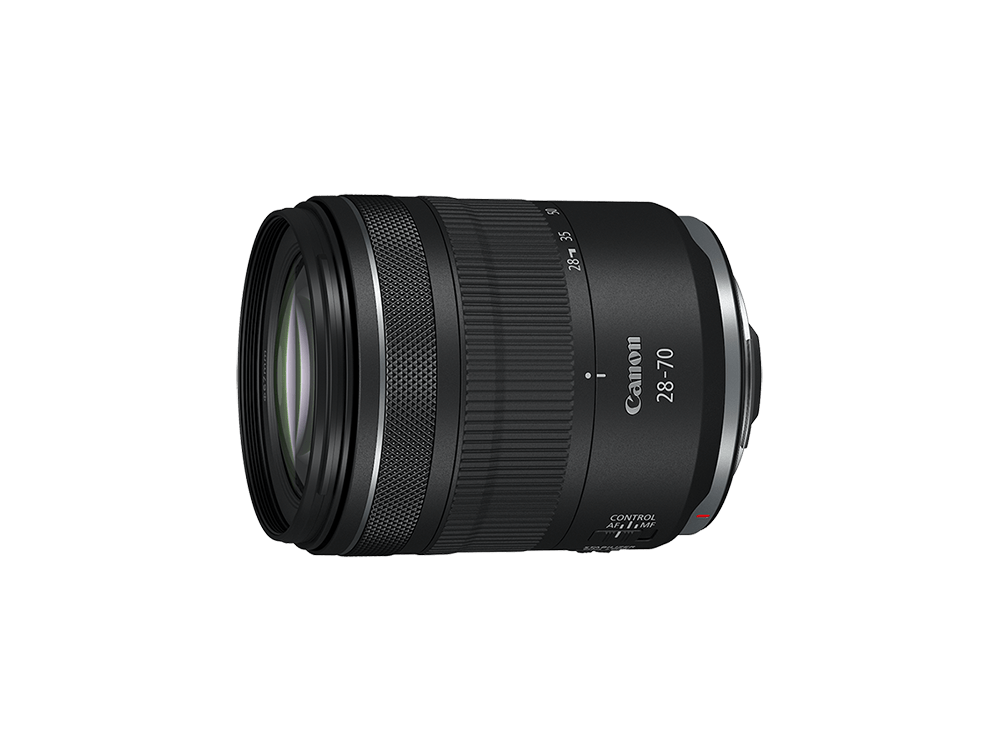

RF28-70mm F2.8 IS STM

The RF28-70mm F2.8 IS STM is a large-aperture standard zoom lens that is light, mobile and easy to carry just about anywhere. It offers an ideal optical design without sacrificing image quality or maximum aperture F-value. This compact standard zoom lens covers the standard zoom range of 28mm to 70mm at a consistent f/2.8 brightness, yet it weighs just 495g (approx.) and is 92.2mm (approx.) in length.
The effective placement of two UD lens elements and two aspherical lens elements provides excellent resolution. The lens configuration, which has a single lens element in the first group, reduces the overall length of the lens when retracted. A lead-screw type stepping motor (STM) enables quiet AF operation for shooting both photos and movies. The image stabilization (IS) performance is as effective at suppressing camera-shake blur as a 5.5-stop*¹ increase in shutter speed, and when used in conjunction with the in-body IS features of a camera, the performance improves to match a 7.5-stop*² increase. This next-generation standard zoom lens combines faithful depiction with mobility, and thus opens up new possibilities for photographers.

*1 When used with EOS R8 camera at a focal length of 70mm. Based on CIPA 2024 standards. Effective in the yaw and pitch directions only.
*2 When used with EOS R1 camera at a focal length of 70mm. Based on CIPA 2024 standards. Effective in the yaw, pitch, and roll directions.

Spec

Angle of view (horizontal/vertical/diagonal) 65°～29°・ 46°～19°30' ・75°～34°
Lens construction 15 elements in 12 groups
Aperture blades 9 (circular shape)
Min. aperture 22
Min. focusing distance 0.24m (manual focus at 28mm)
Max. magnification 0.24x (manual focus at 70mm)
Filter size 67mm
Max. diameter x Length Approx. φ76.5mm×92.2mm
Weight Approx. 495g

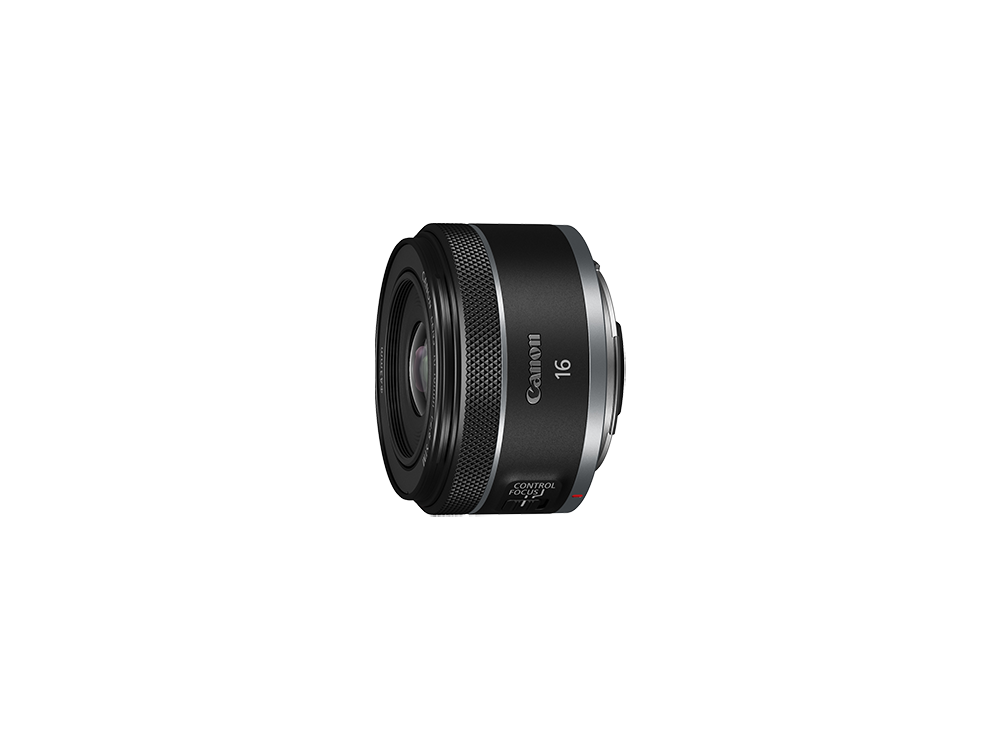

RF16mm F2.8 STM

This is the first ultra-wide-angle single-focal-length lens offering both convenience and expressiveness. The lens is light, weighing approximately 165g, and combines a large f/2.8 aperture and a focal length of 16mm. The PMo aspherical lens structure provides high image quality in the peripheral areas of the shot, at all distances from close-up to infinity. The lens is excellent at capturing expansive landscapes, but also is good for selfies and group photos. By taking advantage of its wide depth of field, the lens can capture images that maintain sharp focus of both the foreground and the distant scenery. The ultra wide-angle lens also allows users to emphasize perspective, or to create a good bokeh effect using the maximum aperture of f/2.8 and minimum focus distance of 0.13m.

Note: This lens is equipped with a focus/control ring that integrates the focus ring and the control ring.

Spec

Angle of view (horizontal/vertical/diagonal) 98°00′/74°10′/108°10
Lens construction 9 elements in 7 groups
Aperture blades 7
Min. aperture 22
Min. focusing distance 0.13m
Max. magnification 0.26x
Filter size 43mm
Max. diameter x Length Approx. φ69.2mm×40.2mm
Weight Approx. 165g

Mounted technology

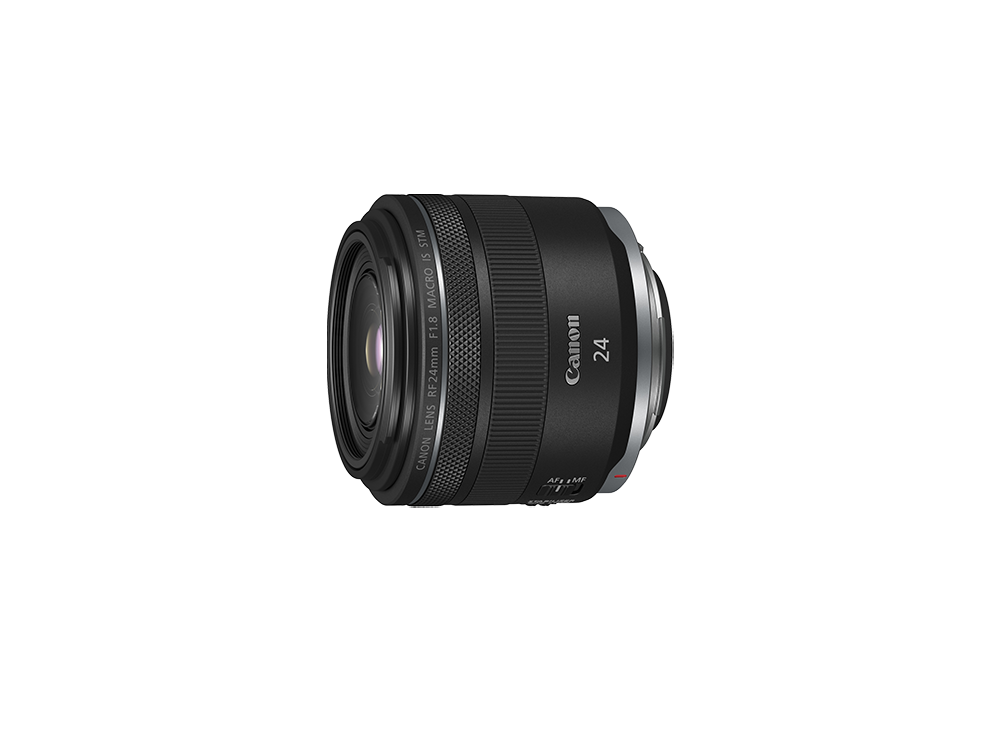

RF24mm F1.8 MACRO IS STM

This lightweight compact large-aperture, wide-angle single-focal-length lens offers a wide angle of view and a powerful bokeh effect. It uses one PMo aspherical lens and one UD lens to deliver high image quality. It offers a maximum magnification of 0.5x with a minimum focus distance of 0.14m. The large, f/1.8 aperture and wide, 24mm angle of view are ideal for wide-angle half-macro photos in which the subject fills the frame, yet the background is also clearly captured. The lens is also equipped with Hybrid IS that provides excellent image stabilization even in macro photography. It achieves an image stabilization effect equivalent to a 5-stop increase in shutter speed.* Subject-motion blur can be suppressed by faster shutter spped utilizing the brightness of the f/1.8 maximum aperture. With an overall length of approximately 63.1mm and a weight of approximately 270g, the lens is portable enough to be used in a variety of situations.

* When used with EOS R camera. Based on CIPA standards. Effective in the yaw and pitch directions only.

Spec

Angle of view (horizontal/vertical/diagonal) 74°00′/53°00′/84°00′
Lens construction 11 elements in 9 groups
Aperture blades 9
Min. aperture 22
Min. focusing distance 0.14m
Max. magnification 0.5x
Filter size 52mm
Max. diameter x Length Approx. φ74.4mm×63.1mm
Weight Approx. 270g

Mounted technology

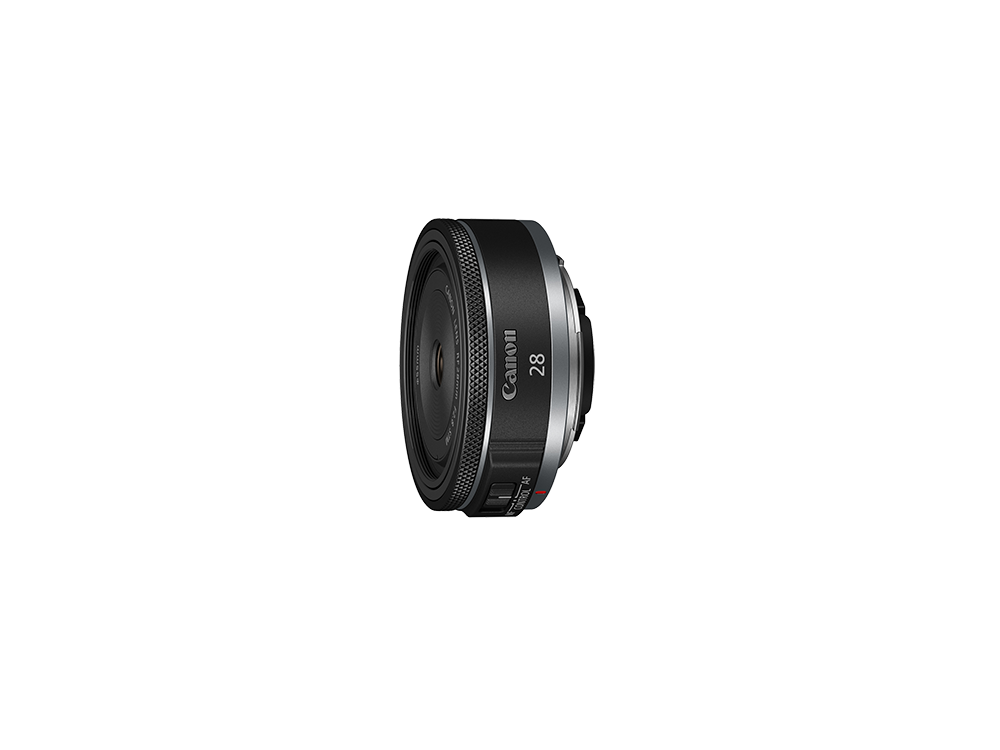

RF28mm F2.8 STM

The first pancake-type lens in the RF lens series, with a control ring and an overall length of just 24.7mm, this lens is so light and portable (approximately 120g) that it may almost seem as if no lens is attached to the camera. The use of three PMo aspherical lens elements allows it to deliver high image quality from the center to the periphery, while reducing the number of lens elements. The bright performance and powerful bokeh effect unique to single-focal-length lenses makes the subject stand out from the background, creating a strong three-dimensional impression. When used with an APS-C size camera, the focal length is approximately 45mm (35mm format equivalent), for pictures with a natural perspective similar to that of a standard lens.

Note: This lens is equipped with a focus/control ring that integrates the focus ring and the control ring.

Spec

Angle of view (horizontal/vertical/diagonal) 65°00′/46°00′/75°00′
Lens construction 8 elements in 6 groups
Aperture blades 7
Min. aperture 22
Min. focusing distance 0.23m
Max. magnification 0.17x
Filter size 55mm
Max. diameter x Length Approx. φ69.2mm×24.7mm
Weight Approx. 120g

Mounted technology

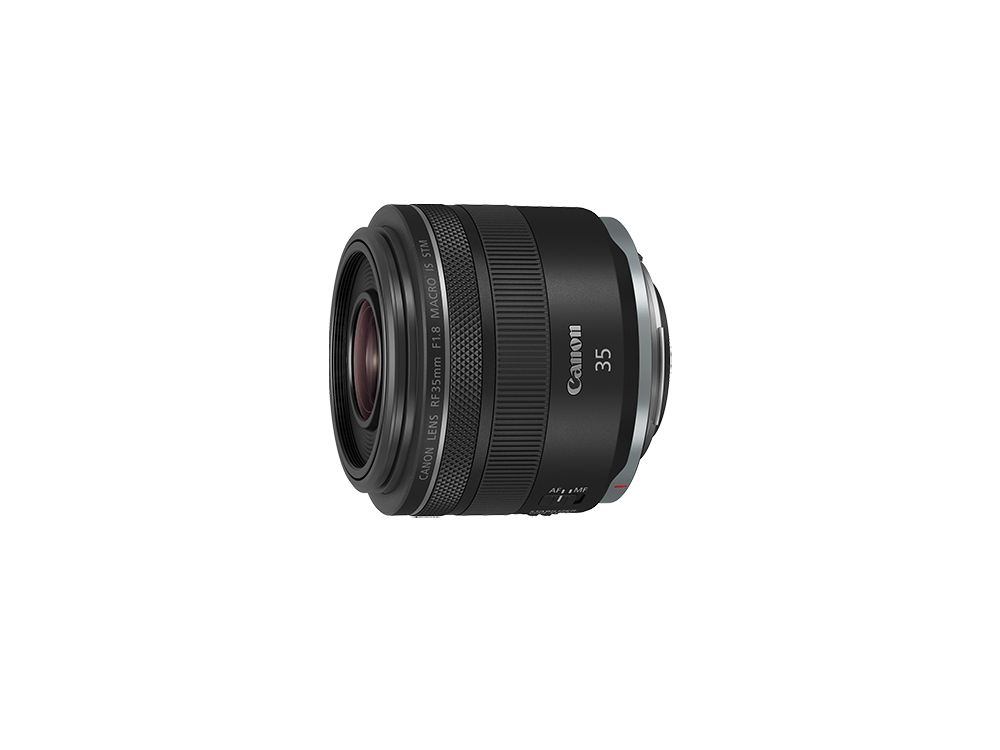

RF35mm F1.8 MACRO IS STM

This is a lightweight compact wide-angle single-focal-length macro lens introduced as the first RF lens designed for the EOS R system. It supports half-macro photography with a magnification of up to 0.5x, helping the photographer to capture the finest details of a subject in high definition. It delivers excellent resolution from the fully open aperture setting, and its f/1.8 maximum aperture brightness and 9-blade circular aperture also allow users to achieve beautiful bokeh effects. The image stabilization mechanism is as effective at reducing camera-shake blur as a 5-stop increase in shutter speed*. The camera also features Hybrid IS, which simultaneously compensates for angular shake and shift shake, making it especially effective for macro photography. The lens is suitable for hand-held macro photos, landscape photos, and casual snapshots.

* When used with EOS R camera. Based on CIPA standards. Effective in the yaw and pitch directions only.

Spec

Angle of view (horizontal/vertical/diagonal) 54°/ 38°/63°
Lens construction 11 elements in 9 groups
Aperture blades 9 (circular shape)
Min. aperture 22
Min. focusing distance 0.17m
Max. magnification 0.5x
Filter size 52mm
Max. diameter x Length Approx. φ74.4×62.8mm
Weight Approx. 305g

Mounted technology

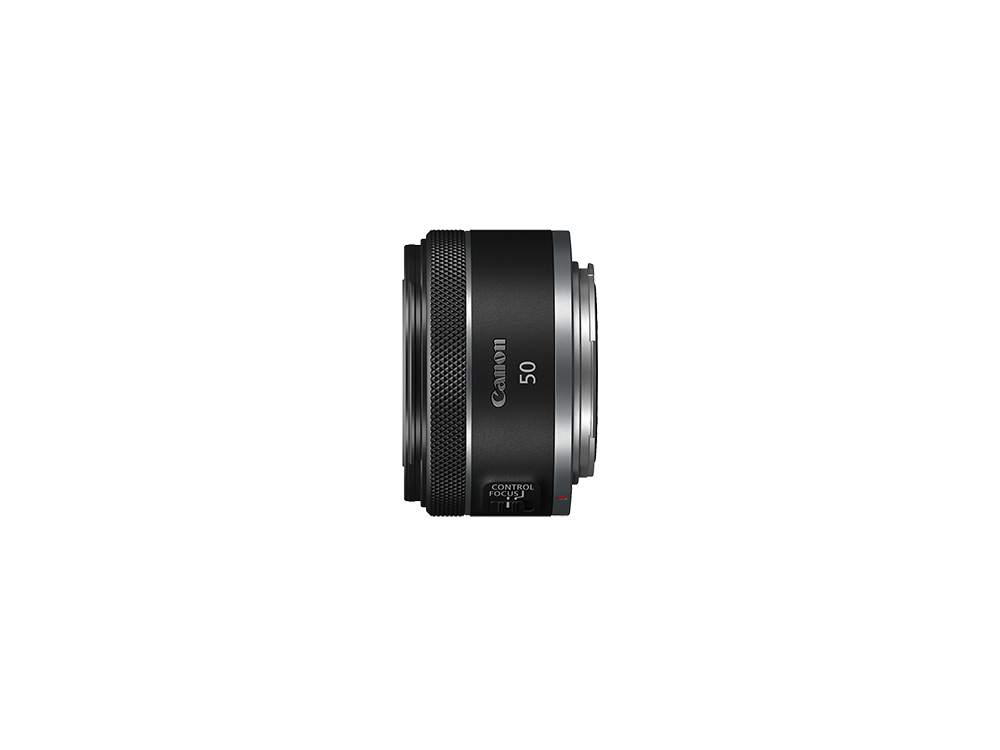

RF50mm F1.8 STM

The EF50mm f/1.8 II and EF50mm f/1.8 STM are the best-selling lenses in the “50mm f/1.8” series, and have been popular with a multitude of users over the years. The long-awaited conversion to the RF mount has launched a new chapter in Canon lens history. The innovative optical system combines high quality with excellent portability and cost performance.
The effective placement of a PMo aspherical lens element helps correct for various types of aberration, and maintains high image quality all the way to the periphery of the image. The f/1.8 maximum aperture is also useful when trying to achieve a powerful bokeh effect. When mounted on an EOS camera equipped with in-body image stabilization, it is as effective at reducing camera-shake blur as a 7-stop increase in shutter speed*¹. This makes it useful for photographing night scenes and taking indoor portraits. With a maximum magnification of 0.25x, this lens does not exaggerate perspective, and offers a field of view similar to what you see with the naked eye. It is also suitable for photographing food and small objects.

*1 When used with EOS R5 camera. Based on CIPA standards. Effective in the yaw and pitch directions only.
Note: This lens is equipped with a focus/control ring that integrates the focus ring and the control ring.

Spec

Angle of view (horizontal/vertical/diagonal) 40°00′/27°30′/46°00
Lens construction 6 elements in 5 groups
Aperture blades 7
Min. aperture 22
Min. focusing distance 0.30m
Max. magnification 0.25x
Filter size 43mm
Max. diameter x Length Approx. φ69.2mm×40.5mm
Weight Approx. 160g

Mounted technology

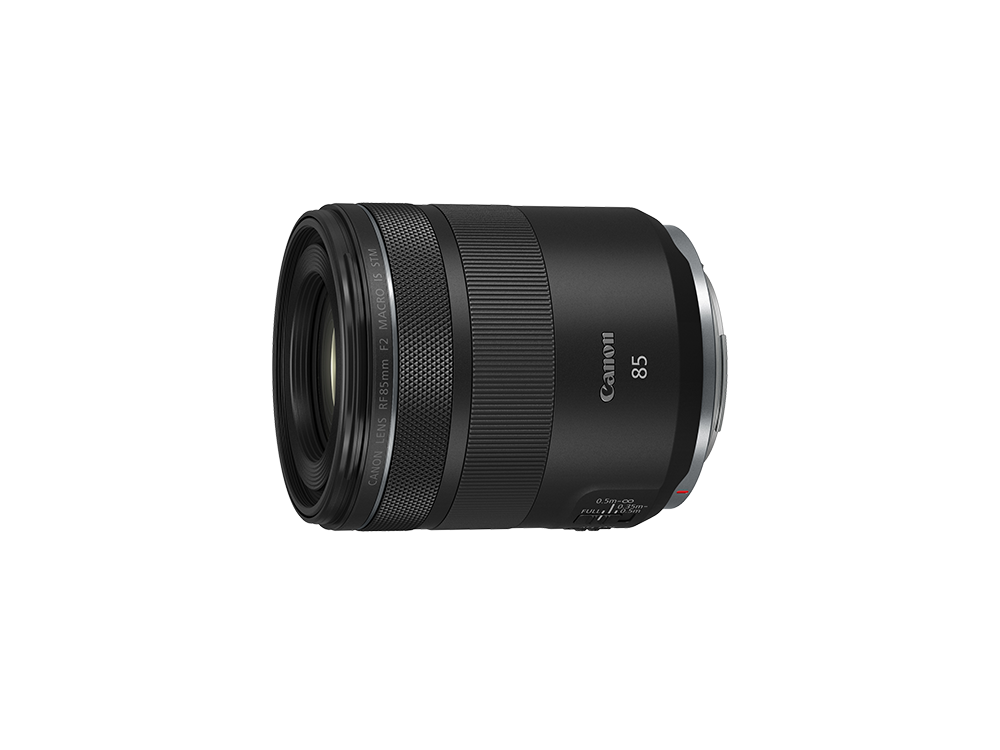

RF85mm F2 MACRO IS STM

This lens inherits the strengths of the EF85mm f/1.8 USM, which has long been a popular, lightweight and handy portrait lens. The focal length of 85mm does not overpower the subject, and allows photos to be taken at distances that ensure easy communication with the subject. The f/2.0 maximum aperture delivers a powerful bokeh effect, making this lens ideal for portrait photography and similar uses. The image stabilization effect is as effective at reducing camera-shake blur as a 5-stop increase in shutter speed*. The minimum focus distance is 0.35m, supporting half-macro photography with a magnification of up to 0.5x. This allows the user to enjoy close-up detail of small items and flowers. The lens is also equipped with Hybrid IS that provides excellent image stabilization even in macro photography.

* When used with EOS R camera. Based on CIPA standards. Effective in the yaw and pitch directions only.

Spec

Angle of view (horizontal/vertical/diagonal) 24°/16°/28°30′
Lens construction 12 elements in 11 groups
Aperture blades 9 (circular shape)
Min. aperture 29
Min. focusing distance 0.35m
Max. magnification 0.5x
Filter size 67mm
Max. diameter x Length Approx. φ78.0×90.5mm
Weight Approx. 500g

Mounted technology

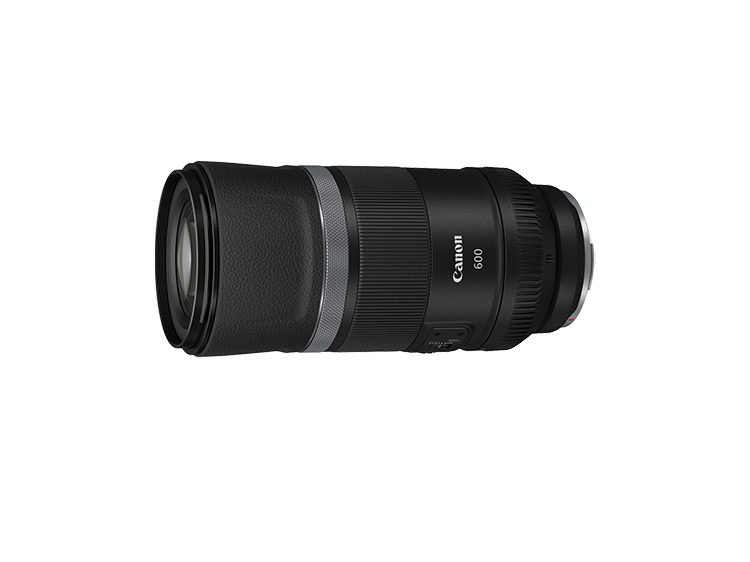

RF600mm F11 IS STM

This is the world’s lightest*¹ super-telephoto lens, with a focal length of 600mm and a fixed f/11 aperture, weighing approximately 930g. The optical system of the RF600mm F11 IS STM features DO lenses with aspherical lens characteristics and a chromatic aberration correction feature. The lens suppresses chromatic aberration and other aberrations that tend to occur with telephoto lenses, to deliver high image quality.
The lens has a retractable structure which extends when shooting but, when retracted, is 70mm shorter and easy to carry in a camera bag. The lightweight design includes extensive use of strong plastic materials. The image stabilization feature is as effective at suppressing camera-shake as a 5-stop increase in shutter speed*².

*1 Refers to autofocus-compatible lenses for interchangeable-lens cameras (SLR cameras and mirrorless cameras) with a focal length of 600mm. As of July 8, 2020, based on internal Canon surveys.
*2 When used with EOS R camera. Based on CIPA standards. Effective in the yaw and pitch directions only.

Spec

Angle of view (horizontal/vertical/diagonal) 03°30′/02°20′/04°10′
Lens construction 10 elements in 7 groups
Aperture blades None
Min. aperture 11
Min. focusing distance 4.5m
Max. magnification 0.14x
Filter size 82mm
Max. diameter x Length Approx. φ93.0×269.5mm
Weight Approx. 930g

Mounted technology

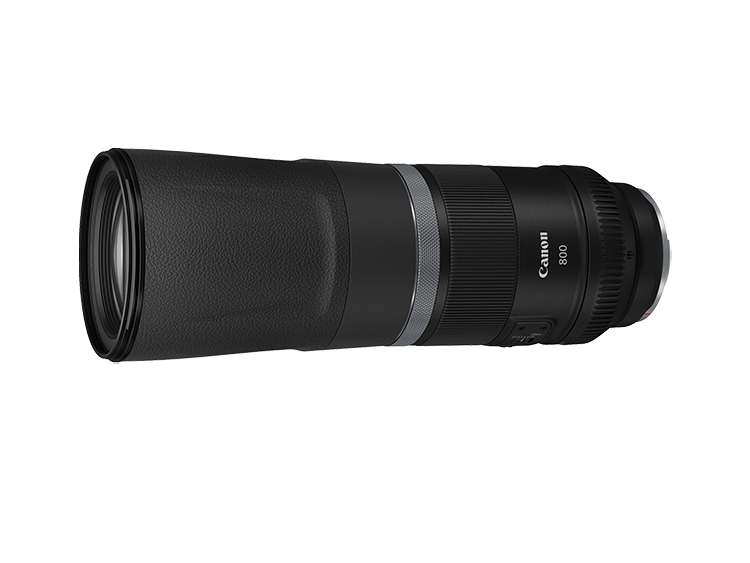

RF800mm F11 IS STM

The world’s lightest*¹ super-telephoto lens (approx. 1,260g) with a fixed f/11 aperture, makes telephoto shooting at 800mm much more accessible to photographers. The RF800mm F11 IS STM optical system features DO lenses with aspherical lens characteristics and a chromatic aberration correction feature. The lens suppresses chromatic aberration and other aberrations that tend to occur with telephoto lenses, to achieve high image quality.
The lens has a retractable structure which extends when shooting but, when retracted, is 70mm shorter and easy to carry in a camera bag. The lightweight design includes extensive use of strong plastic materials. The image stabilization feature is as effective at suppressing camera-shake as a 5-stop increase in shutter speed*².

*1 Refers to autofocus-compatible lenses for interchangeable-lens cameras (SLR cameras and mirrorless cameras) with a focal length of 800mm. As of July 8, 2020, based on internal Canon survey.
*2 When used with EOS R camera. Based on CIPA standards. Effective in the yaw and pitch directions only.

Spec

Angle of view (horizontal/vertical/diagonal) 02°35′/01°40′/03°05′
Lens construction 11 elements in 8 groups
Aperture blades None
Min. aperture 11
Min. focusing distance 6.0m
Max. magnification 0.14x
Filter size 95mm
Max. diameter x Length Approx. φ101.6×351.8mm
Weight Approx. 1,260g

Mounted technology

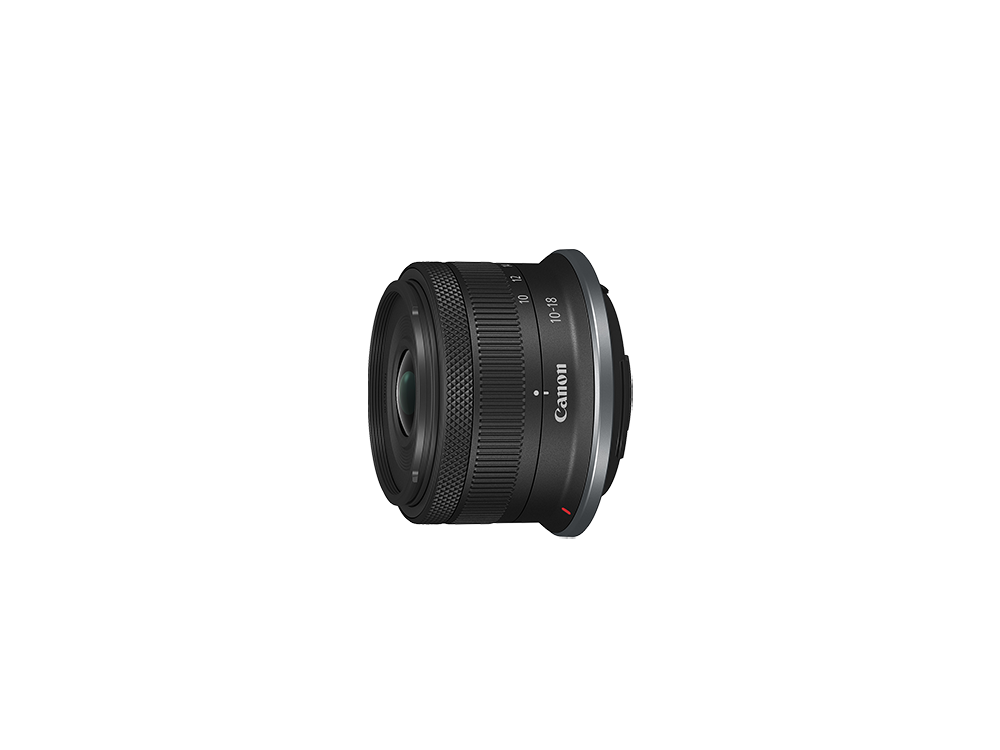

RF-S10-18mm F4.5-6.3 IS STM

The RF-S10-18mm F4.5-6.3 IS STM has the shortest focal length of any zoom lens in the RF-S lens lineup. This compact, lightweight lens weighs approximately 150g, and offers an ultra-wide angle of view equivalent to 16-29mm*¹ in a 35mm film format. Despite the wide angle of view, it offers an image stabilization effect equivalent to a 4-stop increase in shutter speed*². This makes it ideal for shooting in tight spaces, where there is no room to step back and capture the entire subject, or when taking selfies where a number of subjects need to be captured in a single frame.
The optical system uses UD and PMo lenses to achieve excellent image rendering performance and compact size, while keeping the number of lens elements to a minimum. The minimum focus distance is 0.14m, and manual focus (MF) mode allows the photographer to get as close as 10cm from the subject. The lens can be attached directly to EOS R series full-frame cameras with no need for a mount adapter.

*1 The 35mm format conversion is equivalent to 1.6x. Focal length in APS-C format is 10-18mm.
*2 When used with EOS R10 camera at a focal length of 45mm. Based on CIPA standards. Effective in the yaw and pitch directions only.
Note: This lens is equipped with a focus/control ring that integrates the focus ring and the control ring.

Spec

Angle of view (horizontal/vertical/diagonal) 97°10′~64°30′/74°10′~45°30′/107°30′~74°20′
Lens construction 12 elements in 10 groups
Aperture blades 7
Min. aperture 32
Min. focusing distance AF: 0.14 m (at 10-18mm), MF: 0.086 m (at 10mm)
Max. magnification AF: 0.23x (at 18mm), MF: 0.5x (at 10mm)
Filter size 49mm
Max. diameter x Length Approx. φ69mm×44.9mm
Weight Approx. 150g

Mounted technology

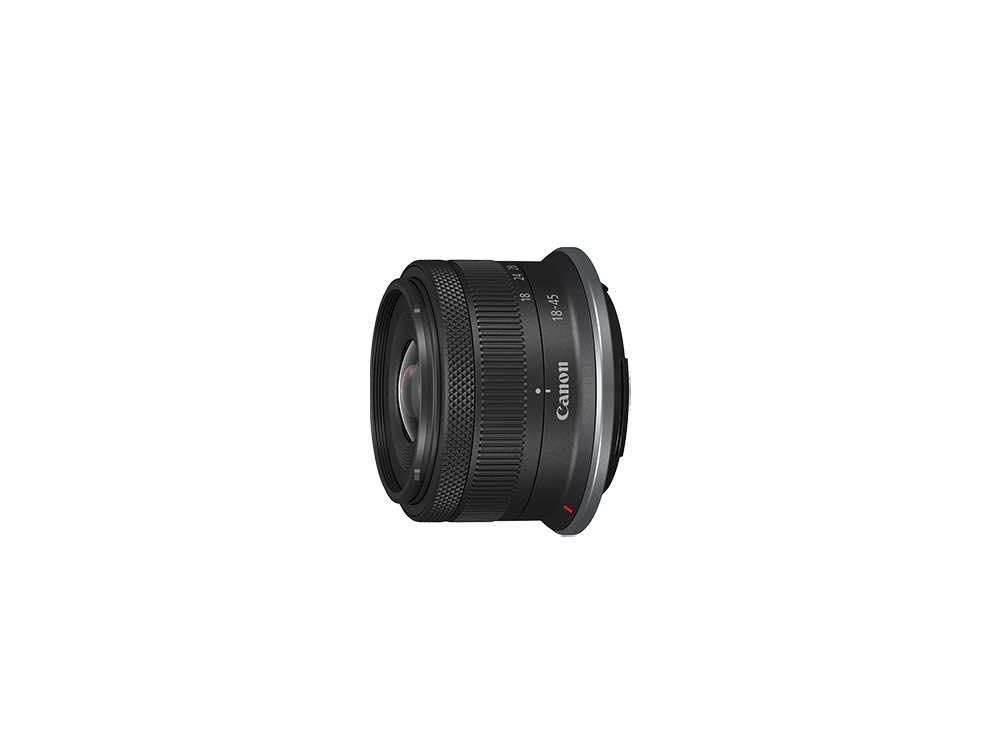

RF-S18-45mm F4.5-6.3 IS STM

This compact, lightweight standard zoom lens covers a focal length range of 29-72mm*¹ in 35mm format, and is designed to fit the APS-C size image circle. As a result, it weighs a mere 130g (approx.). The lens provides an image stabilization (IS) performance that is as effective at suppressing camera-shake blur as a 4-stop*² increase in shutter speed. When used together with the coordinated control features of an EOS R series camera, this improves to a 6.5-stop*³ increase — a remarkably effective image stabilization performance for an APS-C size camera.
The camera is also equipped with a lead screw type STM to provide smooth AF when shooting videos. The lens can also be attached directly to full-frame EOS R series cameras with no need for a mount adapter. This is a recommended lens for first-time users of EOS R cameras.

*1 The 35mm format conversion is equivalent to 1.6x. Focal length in APS-C format is 18-45mm.
*2 When used with EOS R10 camera at a focal length of 45mm. Based on CIPA standards. Effective in the yaw and pitch directions only.
*3 When used with EOS R7 camera at a focal length of 45mm. Based on CIPA standards. Effective in the yaw and pitch directions only.
Note: This lens is equipped with a focus/control ring that integrates the focus ring and the control ring.

Spec

Angle of view (horizontal/vertical/diagonal) 64°30′~28°20′/45°30′~19°05′/74°20′~33°40′
Lens construction 7 elements in 7 groups
Aperture blades 7
Min. aperture 32 at 45mm
Min. focusing distance AF: 0.2 m (at 18mm), MF: 0.15 m (at 18mm)
Max. magnification AF: 0.16x (at 45mm), MF: 0.26x (at 45mm)
Filter size 49mm
Max. diameter x Length Approx. φ69mm×44.3mm
Weight Approx. 130g

Mounted technology

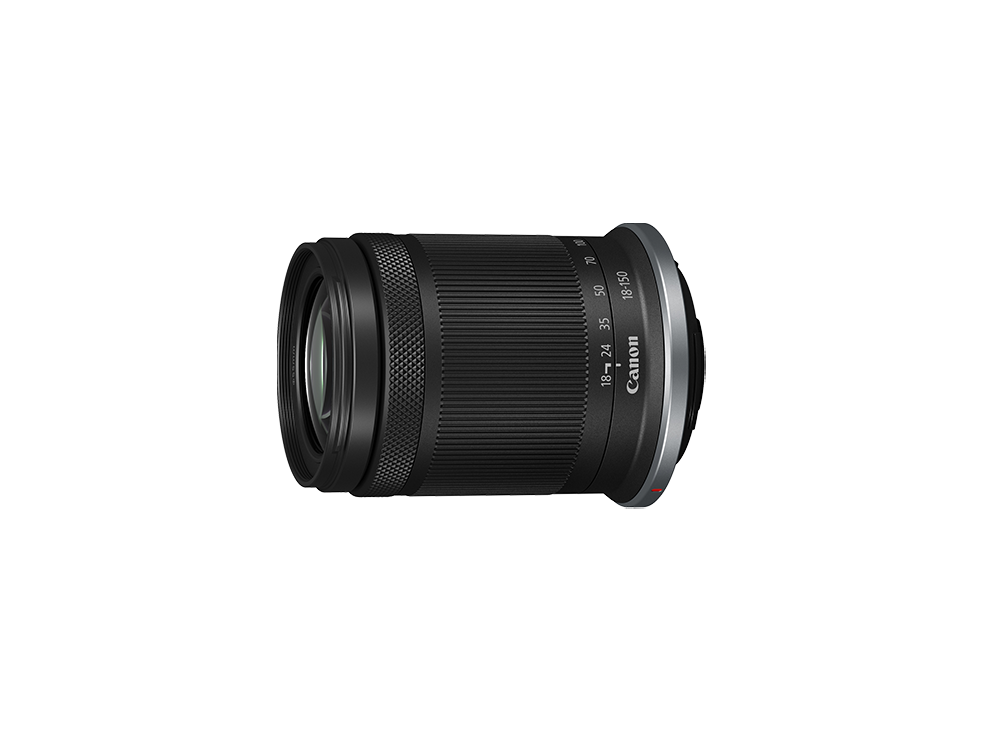

RF-S18-150mm F3.5-6.3 IS STM

This high-power zoom lens allows users to shoot a variety of subjects from everyday snaps and travel photos to sports photography and hobbies, all with a single lens. In 35mm film format, this lightweight and compact lens covers the wide-angle to telephoto range of 29-240mm*¹. When used with the coordinated control feature of an EOS R camera’s in-body image stabilization features, it suppresses camera-shake blur as effectively as a 7.0-stop increase in shutter speed, or a 4.5-stop*² increase when using the lens IS alone. This lets users take hand-held shots with confidence even at the telephoto end, where camera shake is more likely to cause blur.
With a minimum focus distance of 0.17m*³ and a maximum magnification of 0.44x*⁴, the user can get close to a subject and capture it in the full frame. In addition, the camera is equipped with a Center Focus Macro function, which lets the user shoot from even closer using manual focus (MF) mode. The lens can be attached directly to EOS R series full-frame cameras with no need for a mount adapter.

*1 The 35mm format conversion is equivalent to 1.6x. Focal length in APS-C format is 18-150mm.
*2 When used with EOS R10 camera at a focal length of 150mm. Based on CIPA standards. Effective in the yaw and pitch directions only.
*3 When the focal length is within the range of 18-35mm.
*4 When focal length is set to 50mm.
Note: This lens is equipped with a focus/control ring that integrates the focus ring and the control ring.

Spec

Angle of view (horizontal/ vertical/ diagonal) 64°30′～8°40′・45°30′～5°45′・74°20′～10°25′
Lens construction 17 elements in 13 groups
Aperture blades 7
Min. aperture 22
Min. focusing distance 0.45m at 24mm~105mm
Max. magnification 0.08x at 24mm, 0.29x at 105mm
Filter size 55mm
Max. diameter x Length Approx. φ69mm x 84.5mm
Weight Approx. 310g (without tripod mount)

Mounted technology

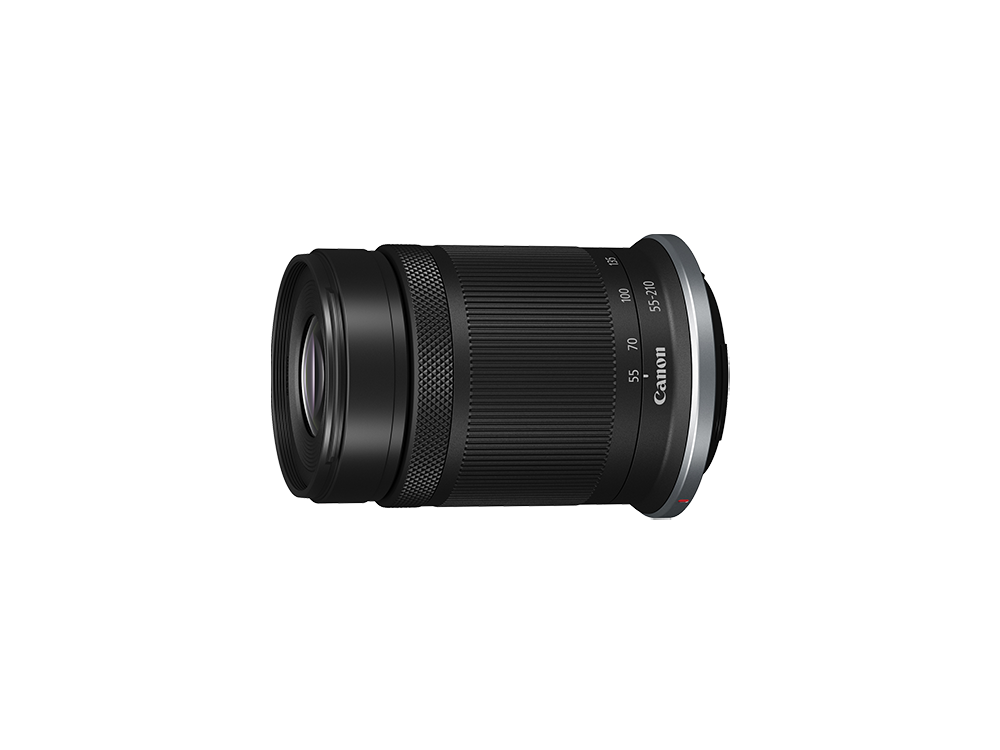

RF-S55-210mm F5-7.1 IS STM

This lens covers a telephoto range equivalent to the 88-336mm*¹ focal length in 35mm format. Despite its 3.8x telephoto zoom capability, it weighs just 270g. The use of a PMo aspherical lens and two UD lenses ensures crisp, clear images. The lens itself has image stabilization features that suppress camera-shake as effectively as a 4.5-stop*² increase in shutter speed, and when combined with the in-body IS and coordinated control features of an EOS R camera, that improves to up to 7.0 stops*³. This makes it ideal for hand-held shooting even in dimly lit indoor venues or when shooting at night.
With a maximum magnification of 0.28x*⁴, it can be used to capture the tiny details of the subject with close-up shots. The lead screw type STM provides smooth autofocus even when shooting video, and the lens can be attached directly to EOS R series full-frame cameras with no need for a mount adapter.

*1 The 35mm format conversion is equivalent to 1.6x. Focal length in APS-C format is 55-210mm.
*2 When used with EOS R10 camera at a focal length of 210mm. Based on CIPA standards. Effective in the yaw and pitch directions only.
*3 When used with EOS R7 camera at a focal length of 210mm. Based on CIPA standards. Effective in the yaw and pitch directions only.
*4 When focal length is set to 210mm.
Note: This lens is equipped with a focus/control ring that integrates the focus ring and the control ring.

Spec

Angle of view (horizontal/vertical/diagonal) 23°20‘~6°10’/15°40‘~4°5’/27°50‘~7°25’
Lens construction 11 elements in 8 groups
Aperture blades 7
Min. aperture 32 at 210mm
Min. focusing distance 0.7m at 210mm; 1.0m at 55mm
Max. magnification 0.28x (at 210mm); 0.05x (at 55mm)
Filter size 55mm
Max. diameter x Length Approx. φ69.0mm×92.9mm
Weight Approx. 270g

Mounted technology

RF-S3.9mm F3.5 STM DUAL FISHEYE

This 144° VR lens allows users to capture realistic-looking images in a wide-angle view, without having to worry about catching unwanted objects (including parts of the camera gear itself). Users can get started taking 3D VR videos by simply attaching this VR lens to the EOS R7*¹ camera. It makes 3D VR more accessible by reducing the need for special shooting equipment and preparations. The lens itself weighs just 290g (approx.)*², making it easy to handle and carry. Its features give photographers greater freedom to choose from a variety of shooting methods — gimbals, tripod, or hand-held.
The optical design is optimized for cameras with APS-C size sensors, and delivers high 4K*³ image quality that enhances the immersive experience of VR. The lens also features a focus/control ring to enhance operability — one of the characteristic features of Canon RF lenses.

*1 As of June 2024, this lens is compatible only with the EOS R7. Use of this lens requires the latest firmware update for the EOS R7.
*2 Weight excludes the rear filter holder.
*3 The camera records video at a resolution equivalent to 4K with a fisheye image.

Spec

Angle of view (horizontal/ vertical/ diagonal) 144°00’・ 144°00’・ 144°00’
Lens construction 11 elements in 8 groups
Aperture blades 7
Min. aperture 16
Min. focusing distance 0.2m
Max. magnification 0.03x
Filter size 30.5mm
Max. diameter x Length Approx. φ112mm x 54.6mm
Weight Approx. 290g (without tripod mount)

Mounted technology

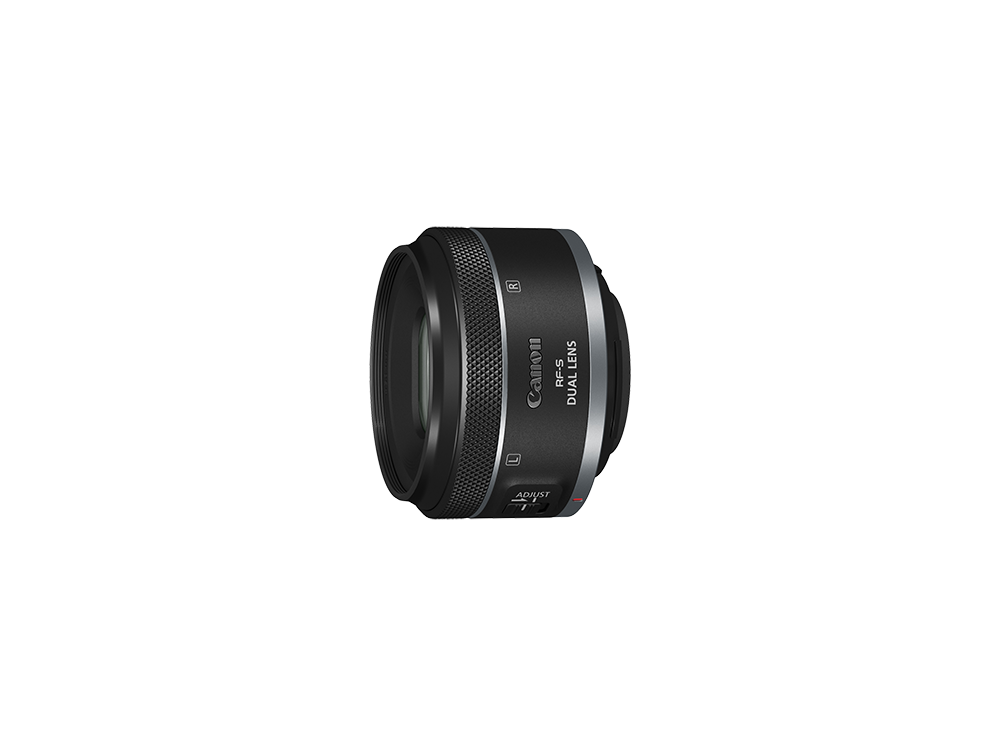

RF-S7.8mm F4 STM DUAL

This RF lens*¹ is part of the “EOS VR SYSTEM” — an integrated package of products that allow creators to capture 3D images and use them to create new and unique image expressions, and 3D experiences, including compatibility with Apple Vision Pro’s “spatial video”. This lens provides images with a texture and three-dimensional feel even in very conventional shooting situations, such as filming a person cooking or doing crafts, or taking pictures of a pet or other small object. Unlike the pseudo-three-dimensional effect created by bokeh and lighting, 3D lenses can produce a realistic image that appears as if the subject is right in front of the viewer. In addition, quick and precise autofocusing is possible, via the same operation as for ordinary RF lenses.
The optical system uses a straight-type optical design without a prism, in order to accommodate the compact 3D lens units with light weight of only 131g. In addition to the short back focus unique to the EOS R system, two UD lenses on each side (a total of four lenses) are effectively arranged to achieve high-quality 3D images. 4K images shot with this lens and the EOS R7 camera can be recorded with a pixel density that exceeds that of 3D 180° 8K images*².
*1 As of September 2024, this lens is only compatible with the EOS R7 camera body. The firmware of the EOS R7 must be updated to the latest version when using this lens.
*2 Pixel density = number of recorded pixels / angle of view.

Spec

Angle of view (horizontal/ vertical/ diagonal) 63° / 63° / 63°
Lens construction 9 elements in 7 groups
Aperture blades 7
Min. aperture 16
Min. focusing distance 0.15m
Max. magnification 0.07x
Filter size 58mm
Max. diameter x Length Approx. 69.2 (width) x 41.5mm
Weight Approx. 131g
Compatible cameras EOS R7^*
*As of October 2024

Mounted technology

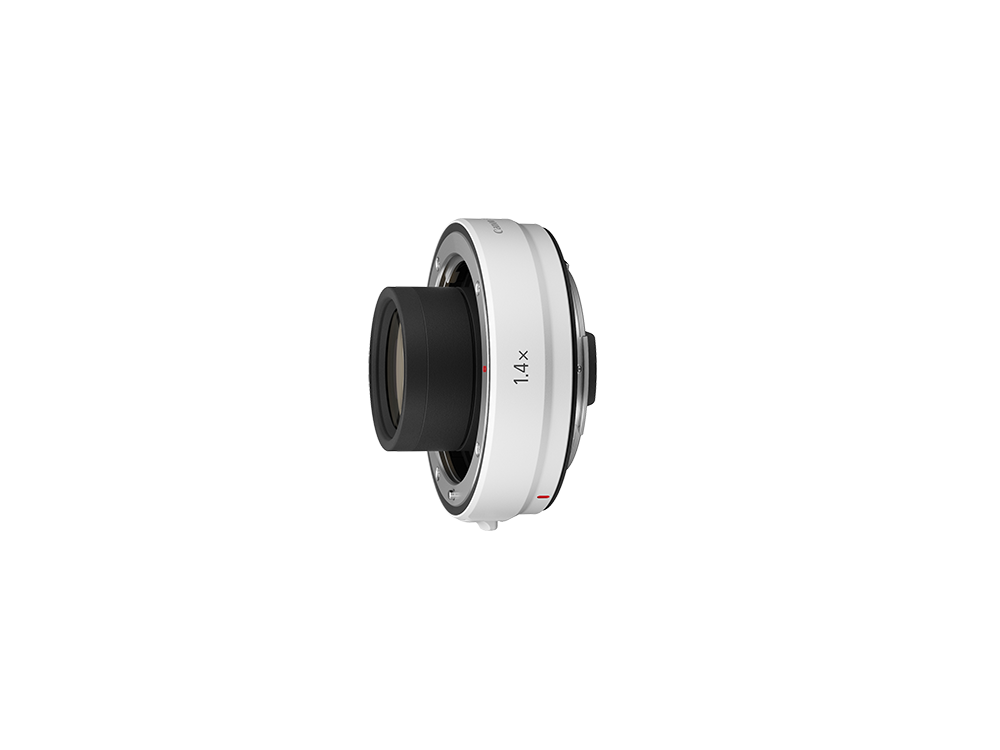

EXTENDER RF1.4x

This extender can be used to attach an RF lens to an RF mount camera body, and increase the focal length of the lens by 1.4x (RF1.4x) or 2x (RF2x). In situations where the subject is too far away to capture in the full frame, this extender brings the subject closer. A high refractive index and low-dispersion optical glass materials suppress image curvature and lateral chromatic aberration. The high resolution of a full-size sensor is maintained while expanding the range of shooting opportunities.
A triple-joint lens is used, as well as optimized coating. This minimizes the surface area that comes in contact with the air, to suppress the risk of ghosting. The mount and controls are designed to be dust- and water-resistant. The lens is also coated with a thermal barrier that reflects infrared rays in sunlight and prevents the lens from getting too hot. When the extender is connected, the maximum aperture F value of the lens becomes 1 stop (RF1.4x) or 2 stops (RF2x) larger (ie. “darker”), but the camera will automatically compensate for the exposure.

Note: RF100-500mm F4.5-7.1 L IS USM can be used only in a focal-length range of 300-500mm.

Spec

Lens construction 7 elements in 4 groups
Max. diameter x Length φ71.2mm×20.3mm
Weight Approx. 225g

Mounted technology

Weatherproof

EXTENDER RF2x

This extender can be used to attach an RF lens to an RF mount camera body, and increase the focal length of the lens by 1.4x (RF1.4x) or 2x (RF2x). In situations where the subject is too far away to capture in the full frame, this extender brings the subject closer. A high refractive index and low-dispersion optical glass materials suppress image curvature and lateral chromatic aberration. The high resolution of a full-size sensor is maintained while expanding the range of shooting opportunities.
A triple-joint lens is used, as well as optimized coating. This minimizes the surface area that comes in contact with the air, to suppress the risk of ghosting. The mount and controls are designed to be dust- and water-resistant. The lens is also coated with a thermal barrier that reflects infrared rays in sunlight and prevents the lens from getting too hot. When the extender is connected, the maximum aperture F value of the lens becomes 1 stop (RF1.4x) or 2 stops (RF2x) larger (ie. “darker”), but the camera will automatically compensate for the exposure.

Note: RF100-500mm F4.5-7.1 L IS USM can be used only in a focal-length range of 300-500mm.

Spec

Lens construction 9 elements in 5 groups
Max. diameter x Length φ71.2×39.3mm
Weight Approx. 340g

Mounted technology

Weatherproof

Mount Adapter EF-EOS R

These adapters, developed exclusively for the EOS R system, allow existing EF lenses and their functions to be used with the EOS R series of cameras. They allow EF lenses (including super-telephoto, telephoto, wide-angle, macro, TS-E lenses, etc.) to be mounted on EOS R series cameras. The functions of the lenses, including autofocus, image stabilizer (IS), control operations via the camera’s control dial, and optical corrections, can be utilized with almost no differences.

The Mount Adapter EF-EOS R is a standard type with a lightweight design, weighing approximately 110g.

The Control Ring Mount Adapter EF-EOS R allows users to control settings via the control ring, even with EF lenses. Settings such as aperture and shutter speed can be assigned.

Drop-In Filter Mount Adapter EF-EOS R with Drop-In Circular Polarizing Filter A has an adjustment dial that can be rotated to match the angle of light. This lets users take advantage of the effects of a polarizing filter, even if the front surface of the lens they are using has a shape that will not accommodate a filter.

Drop-In Filter Mount Adapter EF-EOS R with Drop-In Variable ND Filter A has an adjustment dial that allows density level to be adjusted*¹ from ND3 to ND500 equivalent. This lets users enjoy shooting with a filter even if the front surface of the lens they are using has a shape that will not accommodate a filter.

*1 Blue tint or uneven density may occur in the range where the white line on the adjustment dial is not visible (approx. ND250 or higher).
* Some EF lenses do not support certain functions. RF lenses, RF-S lenses, EF-M lenses, and CN-E lenses (EF cinema lenses) are not supported.

Spec

Usable Lens Canon EF lenses: Excludes RF lenses, EF-M lenses, CN-E lenses (EF cinema lenses)
Max. diameter x Length φ71.2×24mm
Weight Approx. 110g (adapter only)

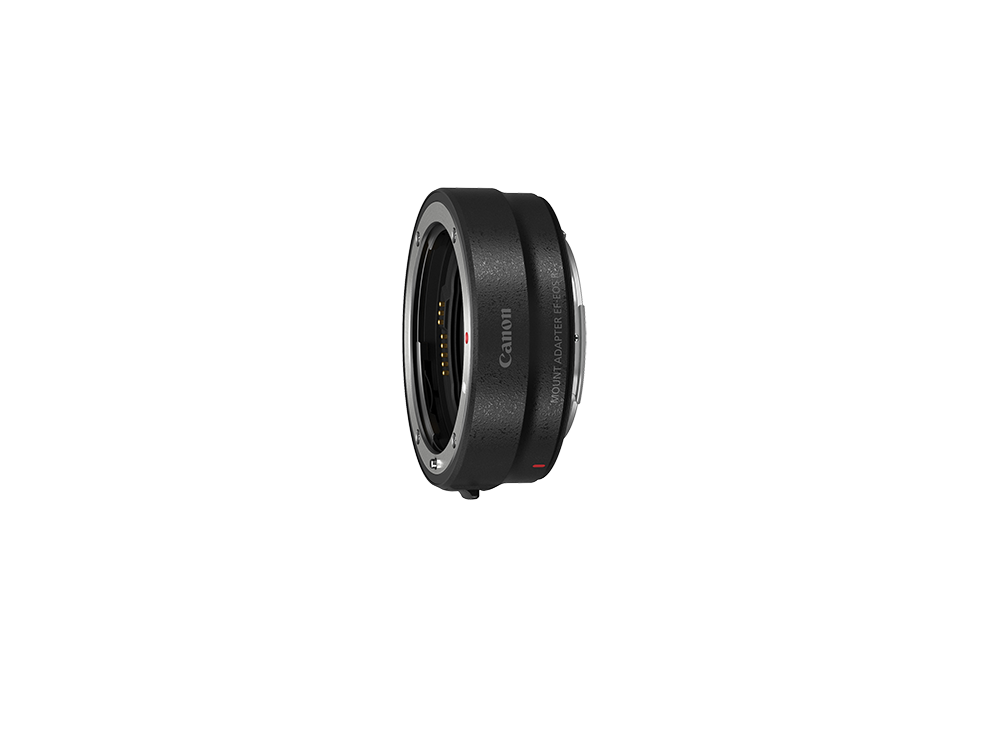

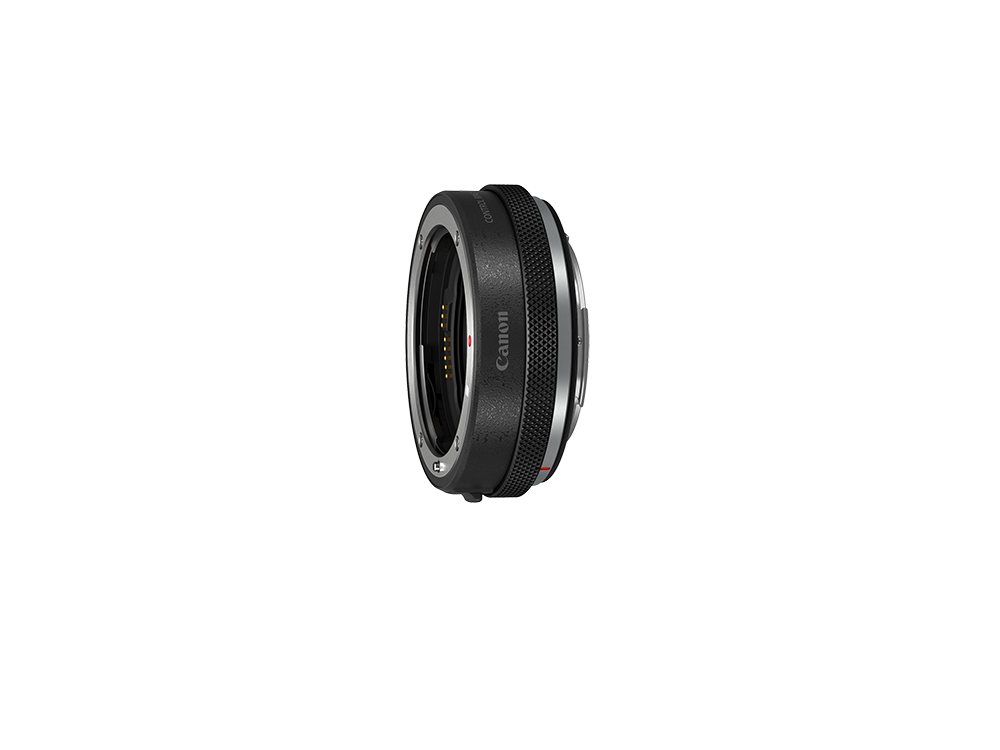

Control Ring Mount
Adapter EF-EOS R

These adapters, developed exclusively for the EOS R system, allow existing EF lenses and their functions to be used with the EOS R series of cameras. They allow EF lenses (including super-telephoto, telephoto, wide-angle, macro, TS-E lenses, etc.) to be mounted on EOS R series cameras. The functions of the lenses, including autofocus, image stabilizer (IS), control operations via the camera’s control dial, and optical corrections, can be utilized with almost no differences.

The Mount Adapter EF-EOS R is a standard type with a lightweight design, weighing approximately 110g.

The Control Ring Mount Adapter EF-EOS R allows users to control settings via the control ring, even with EF lenses. Settings such as aperture and shutter speed can be assigned.

Drop-In Filter Mount Adapter EF-EOS R with Drop-In Circular Polarizing Filter A has an adjustment dial that can be rotated to match the angle of light. This lets users take advantage of the effects of a polarizing filter, even if the front surface of the lens they are using has a shape that will not accommodate a filter.

Drop-In Filter Mount Adapter EF-EOS R with Drop-In Variable ND Filter A has an adjustment dial that allows density level to be adjusted*¹ from ND3 to ND500 equivalent. This lets users enjoy shooting with a filter even if the front surface of the lens they are using has a shape that will not accommodate a filter.

*1 Blue tint or uneven density may occur in the range where the white line on the adjustment dial is not visible (approx. ND250 or higher).
* Some EF lenses do not support certain functions. RF lenses, RF-S lenses, EF-M lenses, and CN-E lenses (EF cinema lenses) are not supported.

Spec

Usable Lens Canon EF lenses: Excludes RF lenses, EF-M lenses, CN-E lenses (EF cinema lenses)
Max. diameter x Length φ74.4×24mm
Weight Approx. 130g (adapter only)

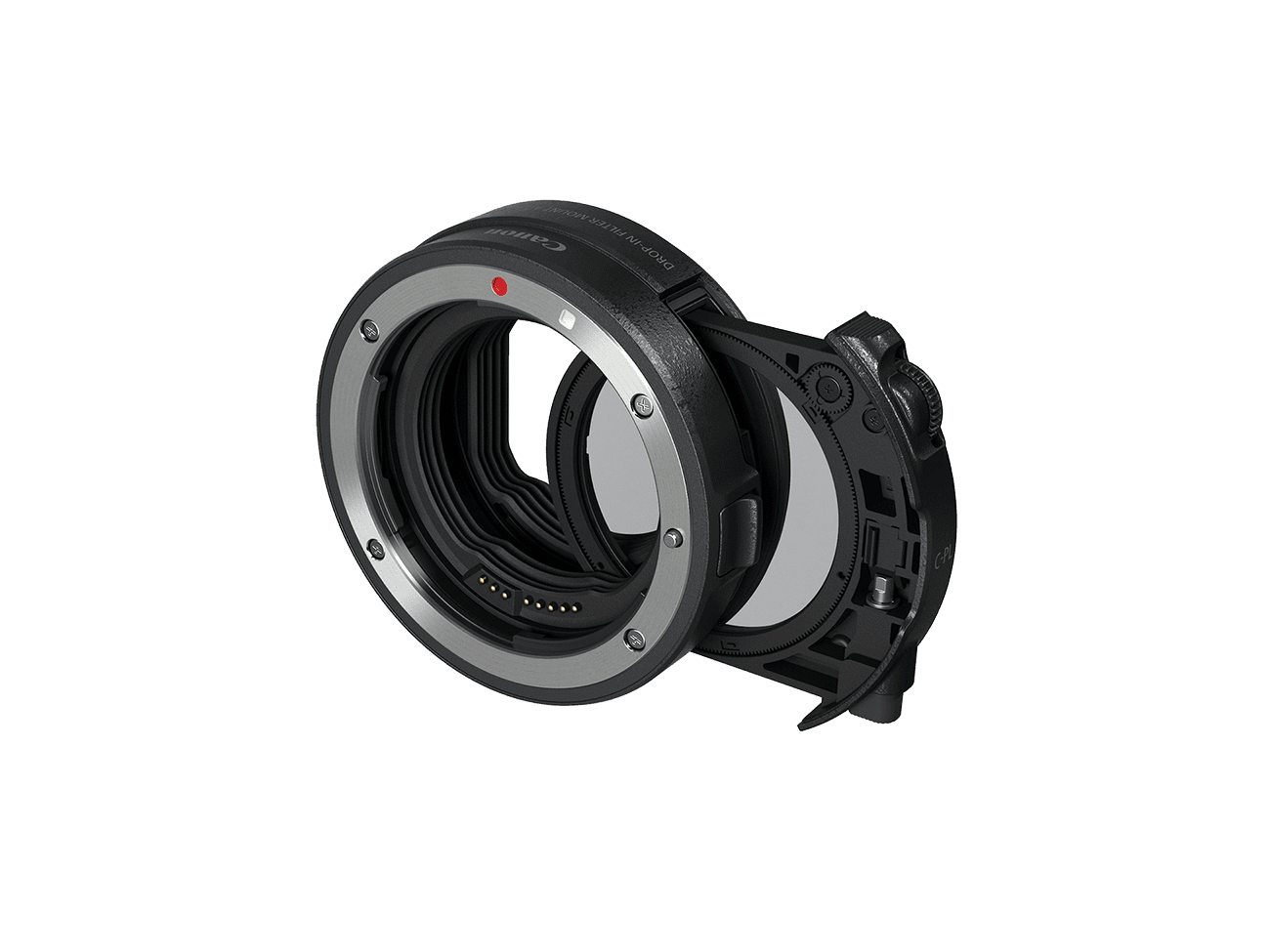

Drop-In Filter Mount Adapter EF-EOS R
with Drop-In Circular Polarizing Filter A

These adapters, developed exclusively for the EOS R system, allow existing EF lenses and their functions to be used with the EOS R series of cameras. They allow EF lenses (including super-telephoto, telephoto, wide-angle, macro, TS-E lenses, etc.) to be mounted on EOS R series cameras. The functions of the lenses, including autofocus, image stabilizer (IS), control operations via the camera’s control dial, and optical corrections, can be utilized with almost no differences.

The Mount Adapter EF-EOS R is a standard type with a lightweight design, weighing approximately 110g.

The Control Ring Mount Adapter EF-EOS R allows users to control settings via the control ring, even with EF lenses. Settings such as aperture and shutter speed can be assigned.

Drop-In Filter Mount Adapter EF-EOS R with Drop-In Circular Polarizing Filter A has an adjustment dial that can be rotated to match the angle of light. This lets users take advantage of the effects of a polarizing filter, even if the front surface of the lens they are using has a shape that will not accommodate a filter.

Drop-In Filter Mount Adapter EF-EOS R with Drop-In Variable ND Filter A has an adjustment dial that allows density level to be adjusted*¹ from ND3 to ND500 equivalent. This lets users enjoy shooting with a filter even if the front surface of the lens they are using has a shape that will not accommodate a filter.

*1 Blue tint or uneven density may occur in the range where the white line on the adjustment dial is not visible (approx. ND250 or higher).
* Some EF lenses do not support certain functions. RF lenses, RF-S lenses, EF-M lenses, and CN-E lenses (EF cinema lenses) are not supported.

Spec

Usable Lens Canon EF lenses: Excludes RF lenses, EF-M lenses, CN-E lenses (EF cinema lenses)
Max. diameter x Length φ73.2×24.7mm
Weight Approx. 121g (adapter only)

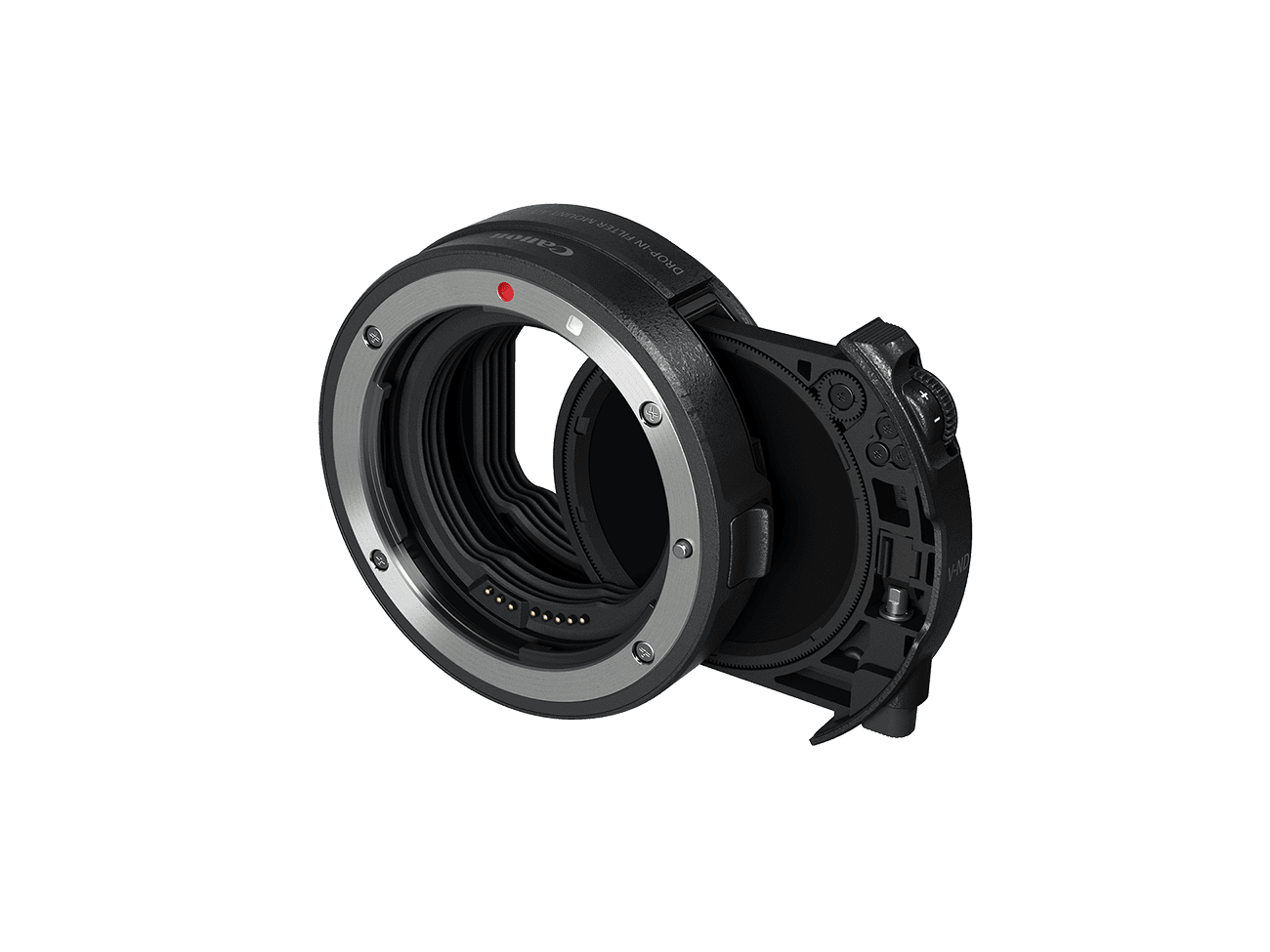

Drop-In Filter Mount Adapter EF-EOS R
with Drop-In Variable ND Filter A

These adapters, developed exclusively for the EOS R system, allow existing EF lenses and their functions to be used with the EOS R series of cameras. They allow EF lenses (including super-telephoto, telephoto, wide-angle, macro, TS-E lenses, etc.) to be mounted on EOS R series cameras. The functions of the lenses, including autofocus, image stabilizer (IS), control operations via the camera’s control dial, and optical corrections, can be utilized with almost no differences.

The Mount Adapter EF-EOS R is a standard type with a lightweight design, weighing approximately 110g.

The Control Ring Mount Adapter EF-EOS R allows users to control settings via the control ring, even with EF lenses. Settings such as aperture and shutter speed can be assigned.

Drop-In Filter Mount Adapter EF-EOS R with Drop-In Circular Polarizing Filter A has an adjustment dial that can be rotated to match the angle of light. This lets users take advantage of the effects of a polarizing filter, even if the front surface of the lens they are using has a shape that will not accommodate a filter.

Drop-In Filter Mount Adapter EF-EOS R with Drop-In Variable ND Filter A has an adjustment dial that allows density level to be adjusted*¹ from ND3 to ND500 equivalent. This lets users enjoy shooting with a filter even if the front surface of the lens they are using has a shape that will not accommodate a filter.

*1 Blue tint or uneven density may occur in the range where the white line on the adjustment dial is not visible (approx. ND250 or higher).
* Some EF lenses do not support certain functions. RF lenses, RF-S lenses, EF-M lenses, and CN-E lenses (EF cinema lenses) are not supported.

Spec

Usable Lens Canon EF lenses: Excludes RF lenses, EF-M lenses, CN-E lenses (EF cinema lenses)
Max. diameter x Length φ73.2×24.7mm
Weight Approx. 121g (adapter only)

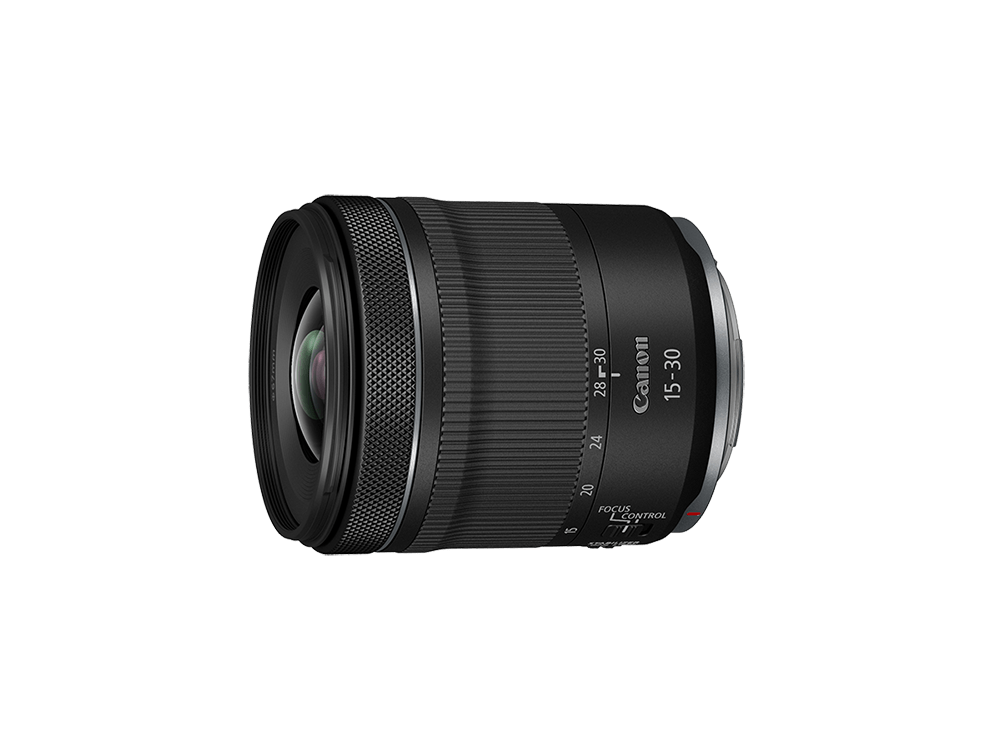

RF15-30mm F4.5-6.3 IS STM

The RF15-30mm F4.5-6.3 IS STM is a wide-angle 2x zoom lens that is compact and lightweight (approx. 390g), yet offers a full range of functions. This lens can be used for a wide range of purposes, from grand-scale landscapes to casual snapshots. The optical system features a PMo aspherical lens and two UD lenses, to deliver crisp, clear images.
Its image stabilization feature is as effective at suppressing camera-shake blur as a 5.5-stop increase in shutter speed*¹, making it suitable for hand-held shooting in conditions where camera shake tends to occur, such as when shooting nighttime scenery. Half-macro photography is also possible using the manual focus (MF) setting, to get as close to the subject as 12.8cm, at the wide-angle end. This allows users to take stunning macro photographs. A lead screw type STM is equipped for easy video shooting.

*1 When used with EOS R camera at a focal length of 30mm. According to CIPA standards. Supports yaw and pitch directions only.
Note: This lens is equipped with a focus/control ring that integrates the focus ring and control ring.

Spec

Angle of view (horizontal/vertical/diagonal) 100°25′~61°55’/77°20′~43°35’/110°30′~71°35’
Lens construction 13 elements in 11 groups
Aperture blades 7
Min. aperture 22 at 15mm, 32 at 30mm
Min. focusing distance AF: 0.28m (at 15mm), MF: 0.128m (at 15mm)
Max. magnification AF: 0.09m (at 15mm), AF: 0.16m (at 30mm)
MF: 0.52m (at 15mm), MF: 0.16m (at 30mm)
Filter size 67mm
Max. diameter x Length Approx. φ76.6mm×88.4mm
Weight Approx. 390g

Mounted technology

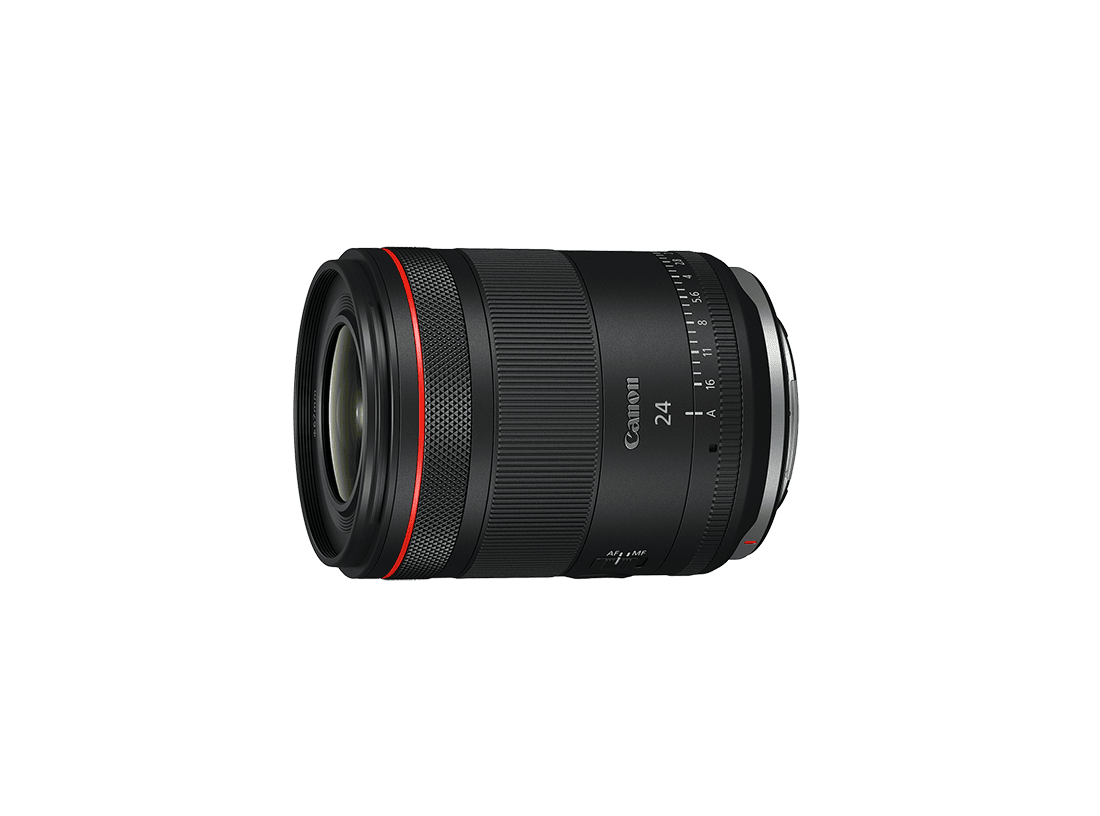

RF24mm F1.4 L VCM

This series of large-aperture, single-focal-length lenses seamlessly links photography and video shooting, for a new generation of visual imaging. The 24mm lens offers a strong sense of perspective, and despite the wide angle of view, the large f/1.4 aperture allows for rich bokeh backgrounds when desired, allowing the photographer to catch the subject in stunningly sharp relief. The lens suppresses “breathing” significantly, so the user can take full advantage of the bokeh effect while recording stable videos, even when the focus shifts.
The optical system features a UD lens that effectively corrects chromatic aberration and a Glass Moulded (GMo) aspherical lens that suppresses various types of aberration and delivers high image quality to the peripheral areas of the image. Two special coatings — Subwavelength Structure Coating (SWC) and Air Sphere Coating (ASC) — are applied to the lens surface to suppress the risk of lens flare and ghosting.
In addition, electronic floating focus control and a Voice Coil Motor (VCM) combined with a Nano USM provides fast, smooth, and quiet autofocusing, despite the bulky girth of this large-diameter lens.
The lens package includes a rear filter holder for attaching sheet-type filters to the rear end of the lens. This can be used to produce various filter effects.
The exterior of the lens is identical to the RF35mm F1.4 L VCM and RF50mm F1.4 L VCM. All measure approximately 99.3mm in length and weigh around 500g. In addition to providing a consistent “feel”, this design makes it easier to switch lenses in the field, and easy to adjust when switching lenses and shooting videos with gimbals. Since the filter diameter of these lenses is also standardized, users can employ the same ø67mm filter even when it is necessary to change lenses.

Spec

Angle of view (horizontal/vertical/diagonal) 74° / 53° / 84°
Lens construction 15 elements in 11 groups
Aperture blades 11 (circular shape)
Min. aperture 16
Min. focusing distance 0.24m
Max. magnification 0.17x
Filter size 67mm
Max. diameter x Length Approx. φ76.5×99.3mm
Weight Approx. 515g

Mounted technology

RF50mm F1.4 L VCM

This is another in Canon’s series of large-aperture, single-focal-length lens that seamlessly link still photography and video shooting, for a new generation of visual imaging. The 50mm lens is versatile for various subjects from snapshots and landscapes to portraits. It combines sharpness at the point of focus with smooth bokeh effects in the background of images. This lens allows the user to fully enjoy the sense of distance from the subject that is unique to this angle of view often called “standard,” while offering sharp resolution and suppressed aberrations.
The optical system of the lens consists of a UD lens that effectively corrects chromatic aberration; and aspherical lenses including a Glass Moulded (GMo) aspherical lens and a replica aspherical lens elements to suppress spherical aberration and image distortion. This ensures excellent image quality. Furthermore, electronic floating focus control with a Voice Coil Motor (VCM) and nano USM provides fast, smooth, and quiet autofocusing, despite the bulky girth of this large-diameter lens.
The exterior of the lens is identical to the RF24mm F1.4 L VCM and RF35mm F1.4 L VCM. All measure approximately 99.3mm in length and weigh around 500g. In addition to providing a consistent “feel”, this design makes it easier to switch lenses in the field, and easy to adjust when switching lenses and shooting videos with gimbals. Since the filter diameter of these lenses is also standardized, users can employ the same ø67mm filter even when it is necessary to change lenses.

Spec

Angle of view (horizontal/vertical/diagonal) 40° / 27° / 46°
Lens construction 14 elements in 11 groups
Aperture blades 11 (circular shape)
Min. aperture 16
Min. focusing distance 0.4m
Max. magnification 0.15x
Filter size 67mm
Max. diameter x Length Approx. φ76.5×99.3mm
Weight Approx. 580g

Mounted technology

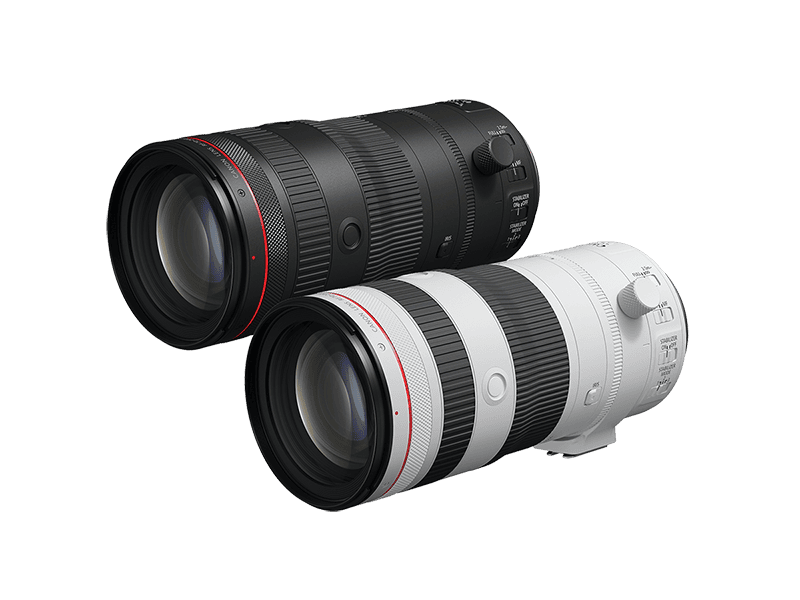

RF70-200mm F2.8 L IS USM Z

The 70-200m f/2.8 lens supports a wide range of usages from the EF lens era, including sports photography, portraits, landscapes, and news coverage. The RF70-200mm F2.8 L IS USM Z is a hybrid-style zoom lens that seamlessly links photography and movie shooting operations.
Spherical aberration and image distortion are effectively suppressed by the optimal arrangement of the UD aspherical, Glass Moulded (GMo) aspherical, and replica aspherical lenses. These aspherical lens elements, coupled with two Super UD lens elements, deliver high image quality equivalent to that of the RF70-200mm F2.8 L IS USM.
For smoother operation, the lens maintains a fixed total length while zooming, so there is no change to the balance or the center of gravity. An iris ring is provided for manual control of the aperture while recording videos.
This lens is also compatible with the EXTENDER RF1.4x and EXTENDER RF2x, for high-resolution super-telephoto shooting.
The minimum focus distance of the lens at a zoom setting of 200mm is 0.68m.
The lens is available in two colors: black to match the RF24-105mm F2.8 L IS USM Z, and white to match Canon’s telephoto lens series. This zoom lens is an alternative to the popular “70-200mm f/2.8” lens, which is now part of the RF lens lineup.

Spec

Angle of view (horizontal/vertical/diagonal) 29°~10° / 19°30’~7° / 34°~12°
Lens construction 18 elements in 15 groups
Aperture blades 11 (circular shape)
Min. aperture 22
Min. focusing distance 0.49m at 70mm
Max. magnification 0.3x
Filter size 82mm
Max. diameter x Length Approx. φ88.5×199.0mm
Weight Approx. 1,110g (Black, without tripod mount)
Approx. 1,115g (White, without tripod mount)

Mounted technology

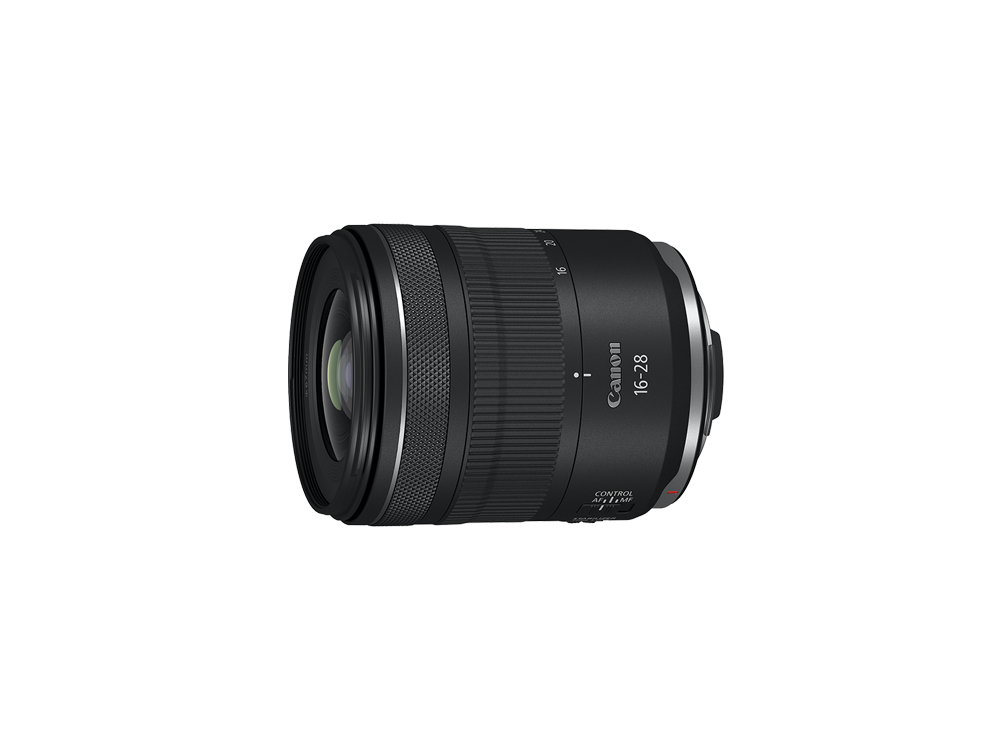

RF16-28mm F2.8 IS STM

This zoom lens, with a fixed F value of f/2.8, offers new shooting possibilities for still and movie creators with its large-aperture zoom and mobility. The RF16-28mm F2.8 IS STM is a compact, lightweight, ultra-wide-angle zoom lens with a minimum focal length of 16mm and a weight of just 445g (approx.). The advanced optical system delivers high image quality approaching that of L-series lenses. Two high-precision aspherical lenses are used in the front element, to effectively suppress the various types of aberration typical of large-aperture and wide-angle lenses. In addition, the use of four UD lens elements helps to correct chromatic aberration to a degree comparable with that of two fluorite lenses. The result is a lens that delivers sharp and vivid images down to the finest detail.

In addition, an inner-focus and lead-screw-type STM provides fast and precise autofocus for still images, and smooth, quiet AF operation when taking videos. The minimum focus distance is 0.2m, allowing the user to get in close and take macro photos. When used in combination with the maximum aperture of f/2.8, it can achieve a pronounced bokeh effect. The lens also has superior image stabilization (IS) features, which reduce camera-shake blur as effectively as a 5.5-stop increase in shutter speed* at the center of the image. When used together with the coordinated control features of an EOS R-series camera equipped with in-body IS, the image stabilization effect is even greater.

* When used with EOS R camera at a focal length of 28mm. Based on CIPA standards. Effective in the yaw and pitch directions only.

Spec

Angle of view (horizontal/vertical/diagonal) 98°~65° / 74°10’~46° / 108°10'~75°
Lens construction 16 elements in 13 groups
Aperture blades 9
Min. aperture 22
Min. focusing distance 0.2m at 28mm
Max. magnification 0.26x at 28mm
Filter size 67mm
Max. diameter x Length Approx. φ76.5×91.0mm
Weight Approx. 445g

Mounted technology

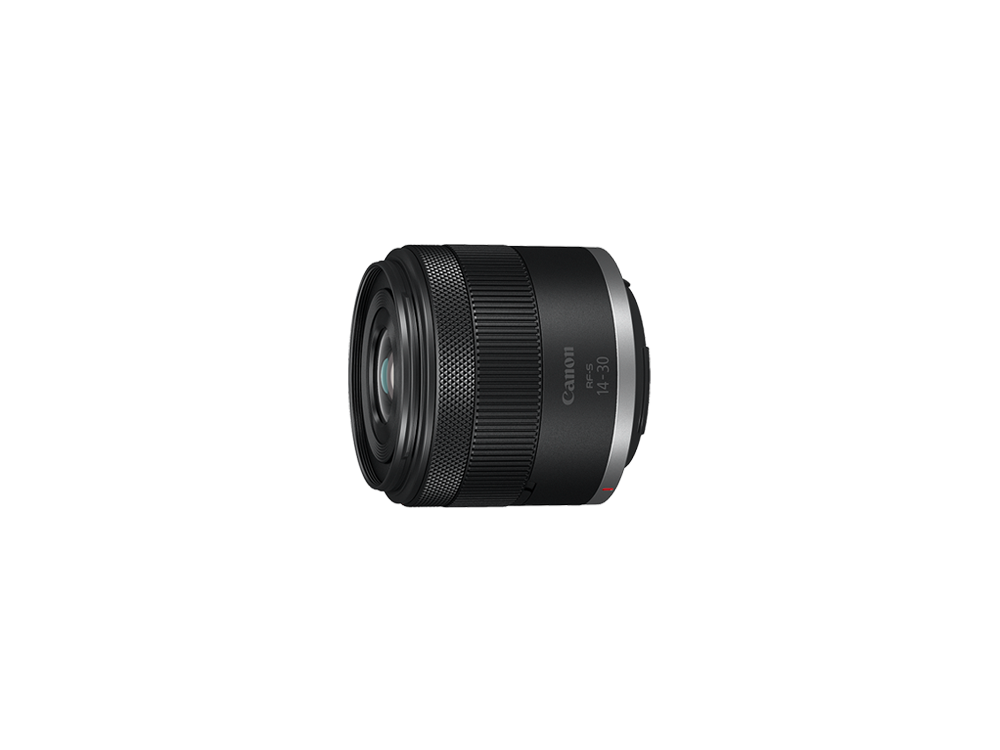

RF-S14-30mm F4-6.3 IS STM PZ

The RF-S14-30mm F4-6.3 IS STM PZ is the first lens in the RF lens series to provide power zoom as a built-in feature. It is optimized for shooting videos, with features that enhance mobility and operability. This allows the user to easily achieve impressive zoom effects like those in video clips shot by professionals.
When attached to an EOS R50 V camera with a zooming speed adjustment function, this lens allows the user to smoothly zoom (both in and out) at a constant speed. The inner zoom mechanism does not change the overall length of the lens barrel when zooming, thus keeping the camera’s center of gravity nearly constant at all times. Zooming can be performed easily using the zoom ring on the lens, or using the zoom lever*¹ and a customized button on the side of the camera body.
The angle of view covers the wide-angle range of approximately 22mm to 48mm (converted to 35mm format). This lens supports a wide variety of video shooting situations, from cinematic movie production to private selfie shooting. It can capture spacious images even in a small room. The image stabilization (IS) performance of the lens is as effective at reducing blur in the center of the frame as a 5.0-stop*² increase in shutter speed. When attached to a compatible camera equipped with Movie Digital IS or in-body IS, the camera-shake correction even more effective.
With a minimum focus distance of 0.15m and a maximum magnification of 0.38x (at 30mm), the lens is ideal for close-up shots. The ability to capture the details of a subject makes it ideal for shooting full-scale food preparation videos with more “sizzle,” or high-grade product review videos.
This lens offers high image quality that matches that of the EOS R series cameras, for shooting still images. Yet the lens is designed to target photographers who want to enjoy a variety of imaging expression, with an emphasis on producing video clips.

*1 In the case of cameras equipped with a zoom lever.
*2 Based on CIPA standards. When used with EOS R 10 camera at a focal length of 30mm. Effective in the yaw and pitch directions only.

Spec

Angle of view (horizontal/vertical/diagonal) 78°05′~41°25′・56°40′~28°15′・88°30′~48°50′
Lens construction 10 elements in 9 groups
Aperture blades 7
Min. aperture 22 (at 14mm), 38 (at 30mm)
Min. focusing distance 0.15mm
Max. magnification 0.16x (at 14mm), 0.38x (at 30mm)
Filter size 58mm
Max. diameter x Length Approx. φ69.6×62mm
Weight Approx. 181g

Mounted technology

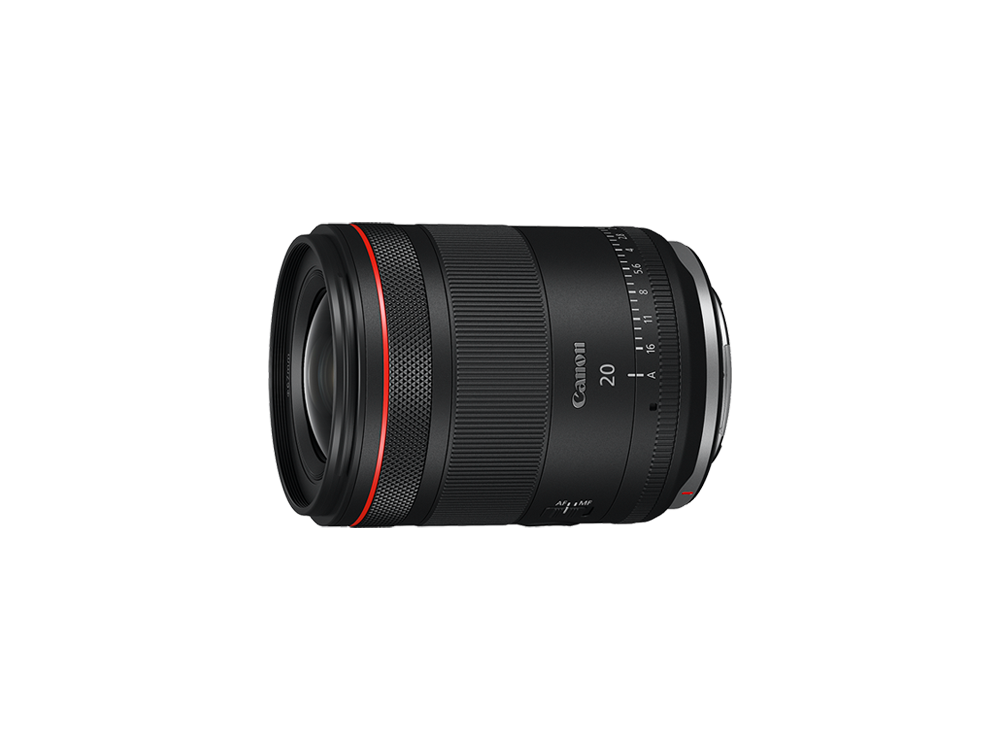

RF20mm F1.4 L VCM

This large-aperture, single-focus lens opens a new era in graphic imaging, seamlessly linking still photos and video shooting. The 20mm wide-angle design offers provides a perspective that surpasses that of human vision. The large f/1.4 maximum aperture allows the user to achieve rich bokeh effects despite the wide-angle field. The lens also features excellent anti-breathing properties, allowing the user to take full advantage of the bokeh effect while shooting video clips, and maintain a sense of stability even as the focus changes.
The optical system of this lens features one Super UD lens element and two UD lens elements positioned optimally to provide fine chromatic aberration correction. In addition, two GMo aspherical lenses are used to suppress spherical aberration and distortion of the image plane, to achieve high image quality even in the periphery of the image. Two special coatings — Subwavelength Structure Coating (SWC) and Air Sphere Coating (ASC) — are applied to the lens surface to suppress lens flare and ghosting.
Although the focal structure of this large-aperture lens is quite heavy, a Voice Coil Motor (VCM) unit delivers fast, smooth, and quiet focusing performance.
A rear filter holder is included in the package, allowing the user to attach a sheet-type filter to the rear of the lens. This can be used to take advantage of various filter effects.
The exterior is identical to that of the RF35mm F1.4 L VCM and other f/1.4 L VCM lenses, all of which measure approximately 99.3mm in length and weigh around 500g. Not only does this ensure that the operability of all these lenses is consistent, but it also makes the lenses easier to use in the field by standardizing things like the adjustments needed when changing lenses or shooting video clips using gimbals. The filter diameter is also standardized, so a single ø67mm filter can match all of the lenses used.

Spec

Angle of view (horizontal/vertical/diagonal) 84°・62°・94°
Lens construction 15 elements in 11 groups
Aperture blades 11
Min. aperture 16
Min. focusing distance 0.2m
Max. magnification 0.19x
Filter size 67mm
Max. diameter x Length Approx. φ76.5×99.3mm
Weight Approx. 519g
